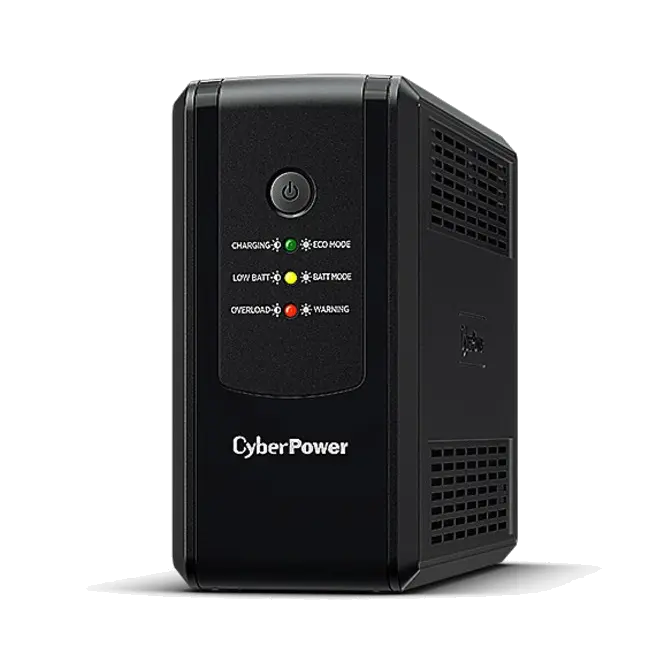

650VA CyberPower UT650EG 360W Tower UPS
Web ID: 34875
CyberPower UT650EG guarantees power protection for computers, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS Bypass design achieves ultra-low power consumption to reduce energy costs, and allows a lower operation temperature which extends battery lifespan.
Manufacturer Warranty: 2 Year
Manufacturer PN: UT650EG
GTIN: 4711027791111
Manufacturer Website
CyberPower UT650EG guarantees power protection for computers, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design achieves ultra-low power consumption to reduce energy costs, and allows a lower operation temperature which extends battery lifespan. The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or other tight spaces.
FEATURES
- Energy Saving Technology
- Generator Compatible
- Overload Protection
- Phone/Fax/Modem/DSL/Network Protection
- Configurable Alarm
- Automatic Voltage Regulation (AVR)
- LED Status Indicator
- Surge and Spike Protection
- High-speed Ethernet Data Transmission
- EMI and RFI Filtration
WHAT'S IN THE BOX
- UT650EG UPS
- Product Registration Card
- Quick Start Guide
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
AWARDS & CERTIFICATION
GreenPower UPS™
GENERAL
Phase
| Single Phase |
Form Factor
| Tower |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 165 ~ 290 |
Input Frequency ( Hz )
| 50 ± 5 |
| 60 ± 5 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 2.83 |
Input Connector Type
| Schuko |
Power Cord Length (ft.)
| 4 |
Power Cord Length (m.)
| 1.2 |
OUTPUT
Capacity (VA)
| 650 |
Capacity (Watts)
| 360 |
On Battery Waveform
| Simulated Sine Wave |
On Battery Voltage(s) ( Vac )
| 230 ± 10% |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Single Boost, Single Buck |
Overload Protection
| Internal Current Limiting, Fuse |
Outlet(s) - Total
| 3 |
Outlet Type
| Schuko x 3 |
Outlet(s) - Battery & Surge Protected
| 3 |
Typical Transfer Time ( ms )
| 4 |
BATTERY
Runtime at 60W ( min )
| 28 |
Runtime at 90W ( min )
| 16 |
Typical Recharge Time ( Hours )
| 6 |
Start On Battery
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 125 |
EMI/RFI Filtration
| Yes |
Phone/Network Protection RJ11/RJ45 (Combo)
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LED Indicators
| Power On, Line Mode, Battery Mode, Bypass Mode, Low Battery, Overload, UPS Fault |
Audible Alarms
| Battery Mode, Low Battery, Overload, UPS Fault |
Ethernet Data Transmission Speed
| Up to 1Gbps |
PHYSICAL
Enclosure Construction
| Plastic |
Color
| Black |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 3.31 x 6.85 x 11.02 |
Dimensions (WxHxD) (mm.)
| 84 x 174 x 280 |
Weight (lbs.)
| 8.38 |
Weight (kg.)
| 3.8 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 4.29 x 9.02 x 12.4 |
Dimensions (WxHxD) (mm.)
| 109 x 229 x 315 |
Weight (lbs.)
| 8.77 |
Weight (kg.)
| 3.98 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Storage Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 34 |
CERTIFICATIONS
Certifications
| CE |
RoHS
| Yes |
WARRANTY
Product Warranty Period (Year)
| 2 |
Battery Warranty Period (Year)
| 2 |
