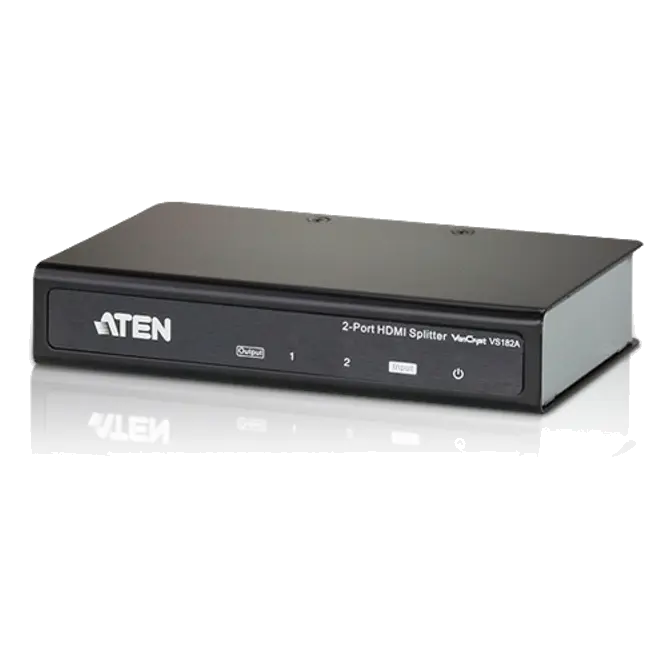

ATEN VS182A 2 Port HDMI Video Splitter
Web ID: 5682
The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
GTIN: 672792004360
Manufacturer Website
The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

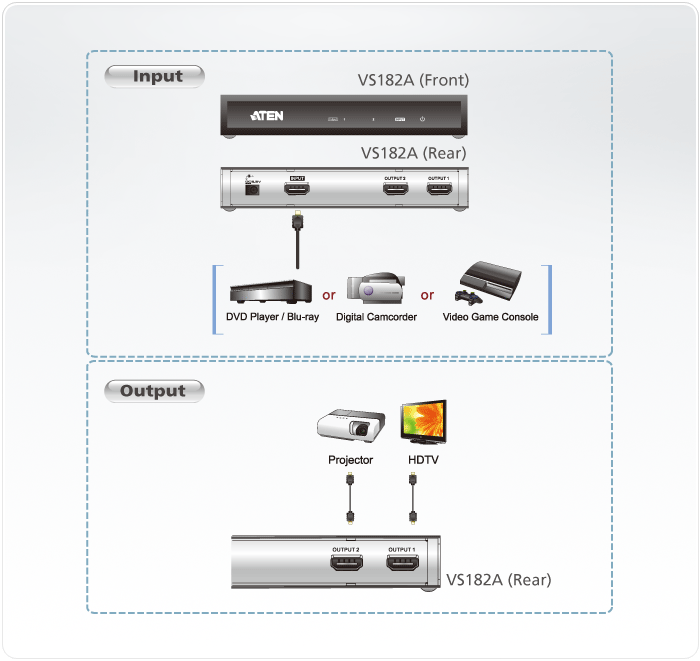

- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play – no software installation required

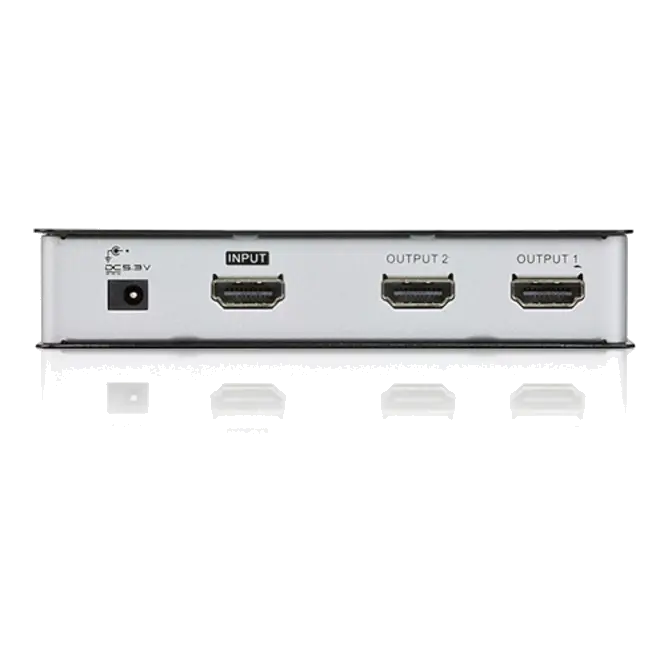

| Video Input | Interface | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? | |
| Max distance | 1.8 m | |
| Video Output | Interface | 2 x HDMI Type A Female (Black) |
| Impedance | 100 ? | |
| Video | Max. data rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. pixel clock | 340 MHz | |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
|
| Max resolutions | Up to 4K@60 Hz (4:2:0) | |
| Max distance | Up to 15 m | |
| Audio | Input | 1 x HDMI Type A Female (Black) |
| Output | 2 x HDMI Type A Female (Black) | |
| Power | Connector:1 x DC Jack Consumption: 5.3 VDC, 2.0W |
|
| Environment | Operating Temp. | 0-50 °C |
| Storage Temp. | -20 - 60 °C | |
| Humidity | 0-80% RH, Non-Condensing | |
| Physical Properties |
Housing | Metal |
| Weight | 0.31 kg | |
| Dimensions (L x W x H) |
12.50 x 8.00 x 2.50 cm | |
| Carton Lot | 20 pcs | |
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
