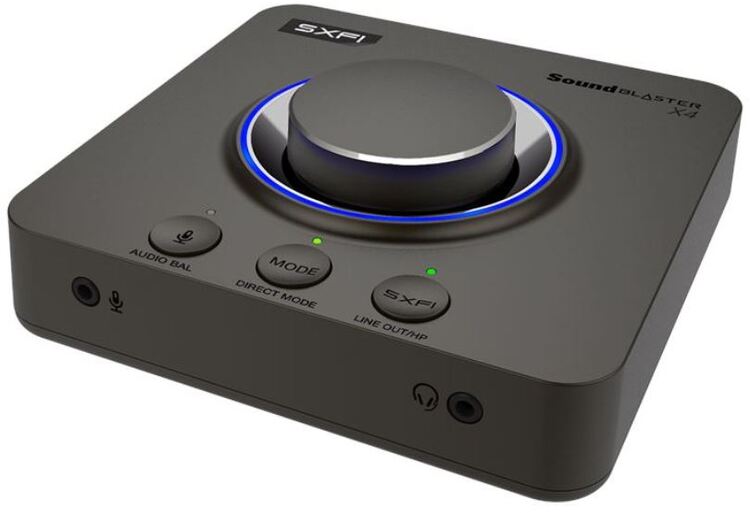

Creative Sound Blaster X4 Hi-Res 7.1 USB Sound Card 70SB181500000
Web ID: 33961
1 device. 3 surround sound technologies. 7 I/O connectors.
Your all-in-one audio upgrade starts here with Sound Blaster X4.
Manufacturer Warranty: 1 Year
Manufacturer PN: 70SB181500000
GTIN: 054651194731
Manufacturer Website
$219
-
Weight
- 384g / 13.55 oz
-
Dimensions
- 130.5 mm x 130.5 mm x 40.6 mm (5.14 x 5.14 x 1.60 inches)
-
Dynamic Range (DNR)
- 114 dB
-
Audio Technology
- Sound Blaster Acoustic Engine, Super X-Fi
-
Max. Playback Quality
- Playback Resolution (Stereo): PCM 16/24-bit / 48.0, 96.0, 192.0 kHz, Surround 7.1: PCM 16/24-bit / 48.0, 96.0 kHzSampling Rate (Playback) :
Direct Mode:
Playback Resolution (Optical Out): PCM 16/24-bit / 48.0, 96.0, 192.0 kHz
Dolby Digital Live: 16-bit, 48.0 kHz
-
Max. Recording Quality
- Mic-in:
16/24-bit / 48.0, 96.0 kHz, Line-in:
16/24-bit / 48.0, 96.0 kHz, Optical-in:
16/24-bit / 48.0, 96.0 kHz
-
Recording Resolution
- Mic-in: 16 / 24-bit / 48.0, 96.0 kHz
Line-in: 16 / 24-bit / 48.0, 96.0 kHz
Optical In: 16 / 24-bit / 48.0, 96.0 kHz
-
Connectivity Options (Main)
- 1 x ?″ Side Out Jack, 1 x USB-C port for PC / Mac, 1 x TOSLINK Optical Out, 1 x ?″ Optical / Line-in Combo Jack, 1 x ?″ Front-out, 1 x ?″ Rear Out, 1 x ?″ Center / Sub Out, 1 x 1/8″ Headphone / Headset Jack, 1 x 1/8″ Ext. Mic-in Jack
-
Headphone Amp
- Supported Headphone Impedance: 32–600Ω, High Gain: 150–600Ω (2.3V RMS @ 150Ω, 2.9V RMS @ 600Ω), Low Gain: 32–149Ω (1.2V RMS @ 32Ω), Output Impedance: 10Ω
-
Audio Technologies
- CrystalVoice
Scout Mode
-
Supported Operating Systems
- Windows® 10 Ver 1703, macOS 10.15 and above, Windows® 11
-
Included Accessories
- USB-A to USB-C Cable (2m / 6.56 ft), Optical Cable (1m / 3.28 ft)
-
DAC
- Dynamic Range (Stereo): 114 dB, THD+N (Stereo): 0.001%
-
ADC
- Dynamic Range: 104 dB, THD+N: 0.0017%
-
Power
- USB-C, USB Bus Powered
