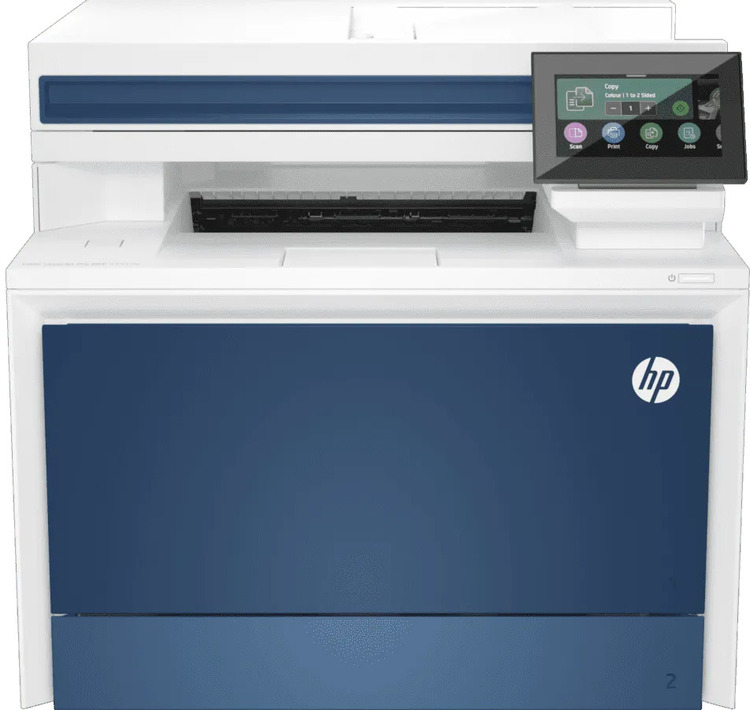

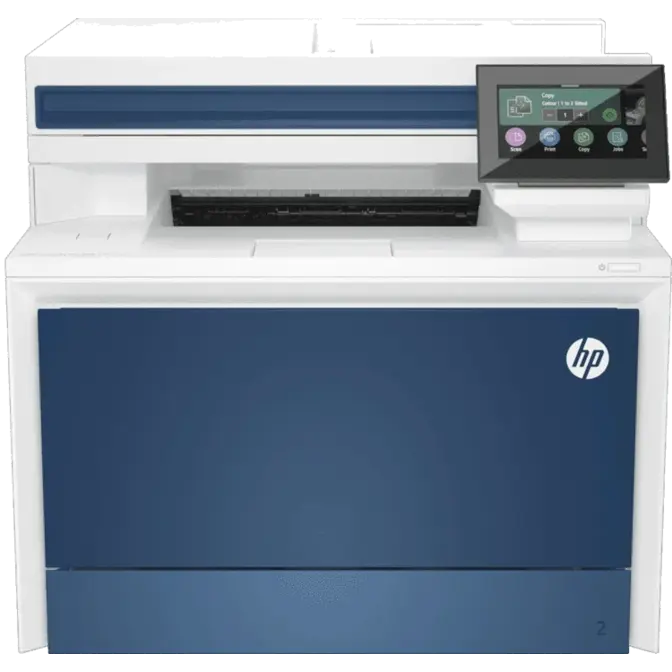

HP 4RA80F LaserJet Pro 4301dw A4 Colour Wireless Multifunction Laser

Sku

Sku

4RA80F

Print

?

Colour Output

Colour

Print Speed, Black

31 - 40

Print Speed, Color

31 - 40

Connection And Communication

?

Connectivity

Apple AirPrint™, Bluetooth, Ethernet Networking, Mopria™, Print Anywhere, USB, Wireless (Wi-Fi®), Wireless Direct Printing

Category

?

Product Type

Laser Printers

?

Family Brand

LaserJet

Features

?

Functions

Multifunction / All-in-One

Usage

?

Usage

Business, Small Work Team

?

Perfect For

Business

Printing Media Handling

Finished Output Handling

Sheet feed

Envelope Input Capacity

Up to 15 envelopes

Output Capacity

Up to 150 sheets

Maximum Output Capacity (Sheets)

Up to 150 sheets

Media Type And Capacity, Tray 3

Sheets: 550

Media Type And Capacity, Tray 1

Sheets: 50; envelopes: 5

Media Type And Capacity, Tray 2

Sheets: 250; envelopes: 10

Media Type And Capacity, ADF

Sheets: 50 uncurled

Paper Handling Input, Standard

50-sheet multipurpose tray, 250-sheet input tray, 50-sheet Automatic Document Feeder (ADF)

Paper Handling Input, Optional

Optional 550-sheet tray

Input Capacity

Up to 300 sheets

Paper Handling Output, Standard

150-sheet output bin

Standard Output Capacity (Envelopes)

Up to 20 envelopes

Maximum Input Capacity (Sheets)

Up to 850 sheets (with Optional 550-sheet tray)

Display Specifications

Display

4.3” diagonal WLED-backlit anti-glare (480X272)

Display Area (Metric)

95 x 53.8 mm

Display Area (Imperial)

3.74 x 2.1 Inch

Environmental

Acoustic Power Note

[6] Configuration tested: base model, simplex printing, A4 paper at an average of 33 ppm.

Acoustic Pressure Emissions Bystander (Active, Printing)

50 dB(A)

Acoustic Pressure Emissions Bystander (Active Scan)

48 dB(A)

Operating Humidity Range

10 to 80% RH (non-condensing)

Storage Temperature Range

-20 to 40°C

Operating Temperature Range

10 to 32.5°C

Acoustic Power Emissions

6.1 B(A)

Recommended Operating Temperature Range

15 to 27°C

Acoustic Power Emissions (Ready)

Inaudible

Acoustic Pressure Emissions Bystander (Ready)

Inaudible

Scan Speed

Scan Speed (Normal, Letter)

Up to 31 ppm (b&w), up to 28 ppm (color)

Scan Speed (Normal, A4)

Up to 29 ppm (b&w), up to 26 ppm (color)

Cartridges And Printheads

Technology

Laser

Number Of Print Cartridges

4 (1 each black, cyan, magenta, yellow)

Replacement Cartridges

HP 210A Black Original LaserJet Toner Cartridge (~2,000 pages) W2100A; HP 210A CyanOriginal LaserJet Toner Cartridge (~1,800 pages) W2101A; HP 210A Yellow Original LaserJet Toner Cartridge (~1,800 pages) W2102A;HP 210A Magenta Original LaserJet Toner Cartridge (~1,800 pages) W2103A;HP 210X Black Original LaserJet Toner Cartridge (~7,500 pages) W2100X; HP 210X CyanOriginal LaserJet Toner Cartridge (~5,500 pages) W2101X; HP 210X Yellow Original LaserJet Toner Cartridge (~5,500 pages) W2102X;HP 210X Magenta Original LaserJet Toner Cartridge (~5,500 pages) W2103X

Supplies Feature

TerraJet Cartridge

Copy Speed

Copy Speed (Black, Normal Quality, A4)

Up to 33 cpm

Copy Speed (Colour, Normal Quality, A4)

Up to 33 cpm

Copy Speed Black (Normal, Letter)

Up to 35 cpm

Copy Speed Color (Normal, Letter)

Up to 35 cpm

Battery And Power

Power

110-volt input voltage: 110 to 127 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz); 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz) (Not dual voltage, power supply varies by part number with # Option code identifier)

Power Consumption Description

585 watts (Active Printing), 18 watts (Ready), 0.8 watts (Sleep), 0.8 watts (HP auto-off/auto-on), 0.07 watts (auto-off/manual on), 0.07 watts (Off)

Power Supply Type

Internal (Built-in) power supply

Print Time

First Page Out Black (Letter, Ready)

As fast as 9.1 sec

First Page Out Black (A4, Ready)

As fast as 9.5 sec

First Page Out Color (A4, Ready)

As fast as 10.2 sec

First Page Out Color (Letter, Ready)

As fast as 9.7 sec

First Page Out Black (Letter, Sleep)

As fast as 10.0 sec

First Page Out Black (A4, Sleep)

As fast as 10.2 sec

First Page Out Color (Letter, Sleep)

As fast as 10.3 sec

First Page Out Color (A4, Sleep)

As fast as 10.5 sec

Printer Specifications

Storage Device And Direct Print Support

USB Printing; Wi-Fi Direct; Front-facing USB/Flash drive; Walk-up USB printing; Optional job storage via external rear host USB port (Minimum 16GB)

Duty Cycle (Monthly, Letter)

Up to 50,000 pages

Duty Cycle Note

[7] Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.

Envelope Feeder

No

Functions

Print, copy, scan

Print Languages

HP PCL 6, HP PCL 5e, HP Postscript level 3 emulation, PDF, URF, PWG Raster, Native Office, TIFF, JPEG

Paper Trays, Maximum

3

Duty Cycle (Monthly, A4)

Up to 50,000 pages

Paper Trays, Standard

2

Recommended Monthly Page Volume

750 to 4,000

Print Technology

Laser

Duplex Printing

Automatic

Warm-Up Time

As fast as 55 sec

Fonts And Typefaces

111 scalable TrueType fonts

Automatic Paper Sensor

No

Printer Management

HP Web JetAdmin Software, Security Manager, HP SNMP Proxy Agent (Part of HP WebJetAdmin), HP WS Pro Proxy Agent (Part of HP WebJetAdmin), Smart Printer Administrator Resource Kit for HP Smart Universal Print Driver (Driver Configuration, Utility - Driver, Deployment Utility - Managed Printing Administrator)

Print Colours

Yes

Top Key Features

Wireless; Print from phone or tablet; Automatic document feeder

Target User And Print Volume

For teams up to 10 users; Prints up to 4,000 pages/month

Scanner Specifications

Scan Size (ADF), Maximum

216 x 356 mm

Scan File Format

PDF; JPG; TIFF

Color Scanning

Yes

Auto Document Feeder Capacity

Standard, 50 sheets uncurled

Scanner Type

Flatbed, ADF

Scan Size, Maximum

216 x 297 mm

Levels Of Grayscale

256

Scan Input Modes

Front-panel scan, copy, email, or file buttons; HP Scan software; and user application via TWAIN or WIA

Scan Size ADF (Minimum)

102 x 152 mm

Bit Depth

30-bit

Twain Version

Version 2.3

Duplex ADF Scanning

No

Recommended Monthly Scan Volume

750 to 4000

Software Scan File Format

Windows HP Scan SW supports PDF,JPG, RTF, TXT, BMP, PNG, TIFF. Mac HP Easy Scan SW supports PDF, JPG, RTF, TXT, JPG-2000, PNG, TIFF.

Scan Technology

Contact Image Sensor (CIS)

Scan Size, Maximum

8.5 x 11.7 in

Scan Size (ADF), Maximum

8.5 x 14 in

Scan Size ADF (Minimum)

4 x 6 in

Certification And Compliance

ENERGY STAR® Certified

Yes

Energy Efficiency Compliance

IT ECO Declaration; EPEAT® Silver Australia; EPEAT® Silver Canada; EPEAT® Silver US

Electromagnetic Emission Standard

CISPR 22:2008 (International) Class B, CISPR 32:2015 (International) Class B / EN 55032:2015 Class B + A11:2020, CISPR 35:2016 (International) / EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019 + A2:2021, FCC 47 CFR Part 15 Class B, ICES-003, Issue 7 Class B. Other EMC approvals as required by individual countries.

Safety Approvals And Requirements

IEC 60950-1:2005 +A1:2009 +A2:2013 (International); IEC 62368-1:2014; EN 62368-1:2014(EU); EN 60825-1:2014/IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); UL62368-1 2nd Ed. 2014-12-01, CSA C22.2 No. 62368-1-14, 2nd Ed.; IEC 62471:2006 / EN 62471:2008; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 56, Dated May 8, 2019; Other safety approvals as required by individual countries.

Telecom Compliance (Fax Capability)

Telecom Wireless: FCC 47 CFR Part 15 Subpart C & E (UNII); FCC 47 CFR Part 15 Subpart C & E; IRSS-Gen Issue 4/RSS 247 Issue 2, 2017 & RSS 102 Issue 5, 2015; EN 301 489-1 V2.2.3; EN 301 489-17 V3.2.4; EN 300 440-1 V2.1.1; EN 300 328 V2.2.2; EN 301 893 V2.1.1. Other Telecom approvals as required by individual countries.

Environmental

ENERGY STAR® certified; EPEAT® registered; 15% post-consumer recycled plastic

Certifications And Compliances

UL/cUL (US/Canada); RCM (Australia); TUV and GS Mark (Germany); Department of Industrial Standards of Cambodia; Bureau of Standards, Metrology and Inspection Ministry of Economic Affairs - BSMI (Taiwan); Certificate of China Compulsory Product Certification - CCC (China); Bureau of Indian Standards - BIS Registration (India); PSB (Singapore); Eastern European country approvals; CE Marking; Other Safety & EMC Certification approvals as required by individual countries.

Box Contents

What's In The Box

HP Color LaserJet Pro 4301dw; 4 preinstalled HP LaserJet Toner cartridges (Black: ~2,000 pages, Introductory-Cyan, Magenta, Yellow: ~1,000 pages); In-box documentation (Reference Guide, Setup Card); warranty card (Where required). HP printer software is available at www.hp.com/support; Power cord; USB cable.

Cable Included

Yes, 1 USB cable

Warranty

Warranty

One-year, next-business day, onsite warranty.

Dimensions

Dimensions Without Stand (W X D X H)

421 x 435 x 384 mm

Maximum Dimensions (W X D X H)

421 x 686 x 761 mm (with optional 550-sheettray 3)

Minimum Dimensions (W X D X H)

16.6 x 17.1 x 15.1 in

Geographic

Country Of Origin

Made in China

Weights

Weight

~20.4 kg

Connectivity And Communications

Network Capabilities

Yes, via built-in 10/100/1000Base-Tx Ethernet, Gigabit; Auto-crossover Ethernet; Authentication via 802.1x;802.11ac (Wi-Fi 5)

Wireless Capability

Yes, built-in dual-band Wi-Fi (Wi-Fi 5); Authentication via WEP, WPA/WPA2/WPA3, WPA Enterprise; Encryption via AES or TKIP; WPS; Wi-Fi Direct; Bluetooth Low-Energy

Mobile Printing Capability

HP Smart App; Apple AirPrint™; Mobile Apps; Mopria™ Certified; Wi-Fi® Direct Printing

Network Protocols, Supported

TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, Apple AirPrint™, Mopria, IPP Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (DHCP, AutoIP, Manual), IPv6 (Stateless Link-Local and via Router, Stateful via DHCPv6), SSL Security and Certificate management; Management: SNMPv1, SNMPv2, SNMPv3, HTTP/HTTPS, Syslog

Plug And Play

Auto Wireless Connect; HP Smart App

Fax Specifications

Faxing

No

System Components

Control Panel

4.3" Capacitive touchscreen (all input functions)

Processors

Processor Speed

1200 MHz

Scan Resolution

Scan Resolution, Hardware

Up to 600 x 600 dpi

Enhanced Scanning Resolution

Up to 600 dpi

Scan Resolution, Optical

Up to 600 dpi

Memory

Memory

512 MB NAND Flash, 512 MB DRAM

Memory, Maximum

512 MB NAND Flash, 512 MB DRAM

Supported Printing Media

Media Size, Tray 3

A4; A5; A6; B5 (JIS); B6 (JIS); 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm); 10 x 15 cm; Oficio (216 x 340 mm); postcards (JIS single, JIS double)

Media Size, Tray 1

A4, A5, A6, B5 (JIS), B6 (JIS), 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm), 10 x 15 cm, Oficio (216 x 340 mm), postcards (JIS single, JIS double), envelopes (DL, C5, B5)

Media Size, Tray 2

A4, A5, A6, B5 (JIS), B6 (JIS), 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm), 10 x 15 cm, Oficio (216 x 340 mm), postcards (JIS single, JIS double), envelopes (DL, C5, B5)

Standard Media Sizes (Duplex)

A4; A5; 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm); B5 (JIS); Oficio; Oficio (216 x 340 mm); A4R

Media Types

Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, labels, envelopes

Media Weight (Tray 2)

60 to 163 g/m² paper (up to 176 g/m² with postcards, up to 200g/m² HP Color laser glossy photo papers)

Recommended Media Weight (Duplex)

60 to 163 g/m²plain paper, 105 to 200 g/m²glossy

Media Weight (Tray 1)

60 to 176 g/m² (up to 200 g/m² with postcards and HP Color laser glossy photo papers)

Media Weight (Tray 3)

Optional Tray 3: 60 to 163 g/m² (up to 176 g/m² with postcards, up to 200 g/m² HP Color laser glossy photo papers)

Media Weights, Supported, ADF

60 to 120 g/m²

Media Sizes, Custom

Simplex: Tray 1: 76.2 x 127 to 216 x 356 mm; Tray 2: 98 x 148 mm to 216 x 356 mm;optional Tray 3: 100 x 148 to 216 x 356 mm;Duplex (all trays): 148 x 148 mm to 216 x 356 mm

Media Sizes Supported, Key

4 x 6 in; Letter; Legal; Envelopes

Media Sizes Supported, Key

10 x 15 cm; A4; Envelopes

Media Size (ADF)

Letter; Legal; A4; custom sizes 102 x 152 to 216 x 356 mm

Standard Media Sizes (Duplex, Imperial)

Letter; Legal; Executive; Oficio; Oficio (8.5 x 13 in); 16k; A4; A5; A5-R; B5(JIS)

Media Weights, Supported ADF

16 to 32 lb

Media Sizes, Custom

Tray 1: 3 x 5 to 8.5 x 14 in; Tray 2, optional Tray 3: 3.93 x 5.82to 8.5 x 14 in; Duplex (all trays): 5.82 x 5.82 in to 8.5 x 14 in

System Requirements

Minimum System Requirements For Macintosh

2 GB available hard drive space, Internet connection or USB port, Internet browser. For additional OS hardware requirements see apple.com;

Minimum System Requirements

2 GB available hard disk space, Internet connection or USB port, Internet browser. For additional OS hardware requirements see microsoft.com;

Software And Applications

Driver Updates

Current HP printer drivers and software can be obtained from the HP Customer Care Web site: Go to http://www.hp.com/support/ (country/region may need to be selected) Select “Support”; Select “Software and Drivers”, Select “Printer”, Enter a product name/number, (The operating system is automatically detected), Select a driver or other software, Select “Download” for the software desired

Downloadable Software

From http://123.hp.com- HP Easy Start (Guided Software Install for Windows and Mac), From http://hp.com for Windows OS- Full-solution software and drivers, Basic-solution software and drivers, HP PCL6 XPS Discrete Print Driver, Product Documentation and Support, From http://hp.com for Mac OS-, HP Mac OS Print Driver, HP Easy Admin, For Mobile OS-, iOS For more information see: http://hp.com/go/businessmobileprinting, Android For more information se: http://hp.com/go/businessmobileprinting, From http://hp.com for printer administrators-, Printer Administrator Resource Kit (Driver Configuration, Utility - Driver Deployment Utility - Managed Printing Administrator),HP Universal Print Drivers PCL6 GDI & PS GDI for Windows. For more information on the supported operating systems go to http://support.hp.com, SAP Print Drivers for more information see http://support.hp.com/us-en/document/c05051702, HP Web JetAdmin, HP JetAdvantage Security Manager, HPLIP Linux, Printer Driver for more information see http://hplipopensource.com/hplip-web/index.html, Unix Model Script Printer Driver for more information see http://hp.com/go/unixmodelscripts, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, Supported Operating systems, For more information on the supported operating systems also see www.hp.com/go/upd, HP Smart Suite- Basic, HP Smart Suite- Advanced, HP SmartApp, HP SmartDriver, HP PrintScanDr, HP WebJetAdmin + Workpath, HP Command Center,Chrome Extension, Android Plug-in

Mac Compatible

Yes

Software Included

No software solutions are included in the Box only on http://hp.com http://123.hp.com;

Supported Operating Systems

Compatible Operating Systems

Windows 11; Windows 10; Windows 7; Windows Client OS; Android; iOS; macOS 12 Monterey; macOS 11 Big Sur; macOS 10.15 Catalina; Linux; Citrix; Chrome OS; Mobile OS

Compatible Network Operating Systems

SAP; Novell; UNIX; Citrix; Linux; Windows Server

Operating System (Supported Note)

Citrix Ready Kit Certification - Up to Citrix Server 7.18 for more information see http://citrixready.citrix.com; Citrix Server 6.5; Citrix XenApp & XenDesktop 7.6,Linux- For more information see http://developers.hp.com/hp-linux imaging-and-printing; Novell iPrint server; Unix- For more information see http://hp.com/go/unixmodelscripts; Windows Server 2008 R2 64-bit ; Windows Server 2012 64-bit; Windows Server 2012 R2 64-bit; Windows Server 2016 64-bit; Windows Server 2019 64-bit; Windows Server 2022 64-bit; (All operating systems with the latest updates); Android; iOS; macOS Big Sur v11.0; macOS Catalina v10.15; macOS Monterey v12.0; macOS's-; Mobile -; Win10; Win11; Win7 Ultimate; Windows Client OS (32/64 bit)-;(All operating systems with the latest updates)

Print Resolution

Print Quality Black (Normal)

ImageREt 2400, HP premium print quality mode (600 x 600 dpi)

Print Quality Black (Best)

Up to 600 x 600 dpi

Print Quality Color (Best)

Up to 600 x 600 dpi

Print Resolution Color (Normal)

ImageREt 2400, HP premium print quality mode (600 x 600 dpi)

Rack And Power Specifications

Typical Electricity Consumption (TEC) Number

1.423 kWh/Week (Blue Angel); 0.422 kWh/Week (Energy Star 3.0)

Number Of Users

3-10 Users

Print Area

Maximum Print Area

212 x 352 mm

Right Margin (A4)

4.23 mm

Top Margin (A4)

4.23 mm

Bottom Margin (A4)

4.23 mm

Left Margin (A4)

4.23 mm

Advanced Features

Printer Smart Software Features

Automatic duplex, collation, watermarks, printable forms,quiet mode, HPpremium print mode,accepts a variety of paper sizes and types

Energy Savings Feature Technology

HP Auto-On/Auto-Off Technology; Instant-on Technology

Copier Specifications

Copies, Maximum

Up to 999 copies

Copy Reduce / Enlarge Settings

25 to 400%

Copier Scaling (ADF)

25 to 400%

Copier Settings

ID Copy; Number of copies; Resize (including 2-Up); Lighter/Darker; Enhancements; Original Size; Binding Margin; Collation; Tray Selection; Two-Sided; Save Current Settings; Restore Factory Defaults; Quality (Draft/Standard/Best)

Multimedia And Input Devices

Resolution

600 dpi

Appearance

?

Colour

Blue
