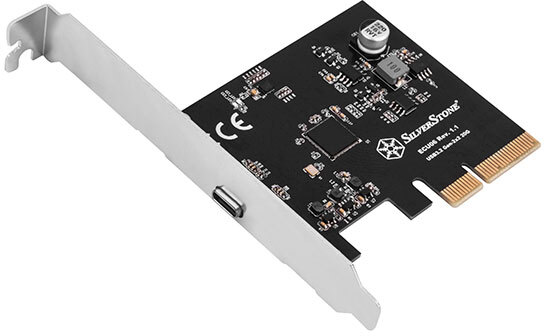

SilverStone ECU06 USB 20Gbps PCIe card
Web ID: 38107

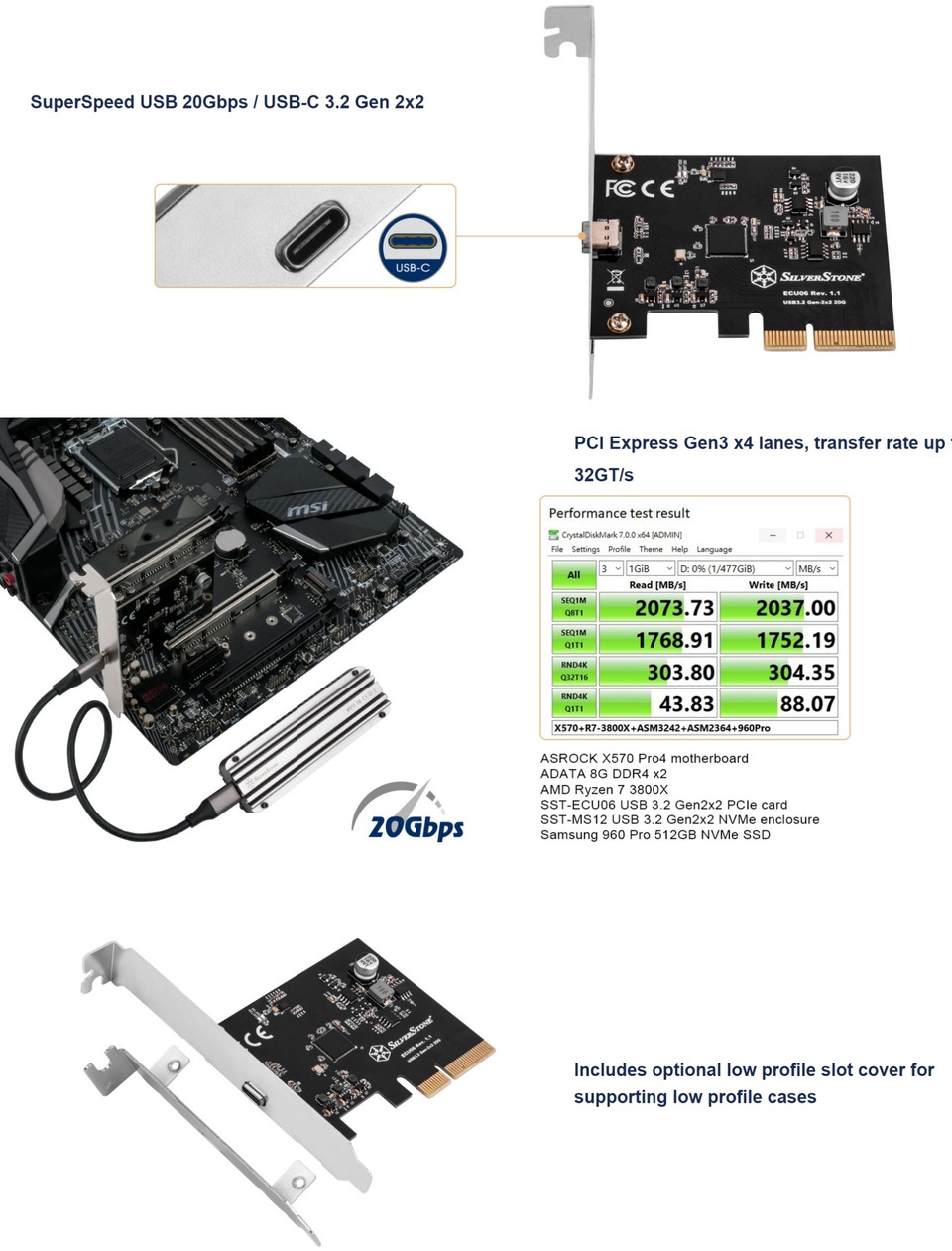

SuperSpeed USB 20Gbps
PCI Express Gen3 x4 lanes, transfer rate up to 32GT/s
Compliant with PCI Express Base 3.1a specification.
Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0

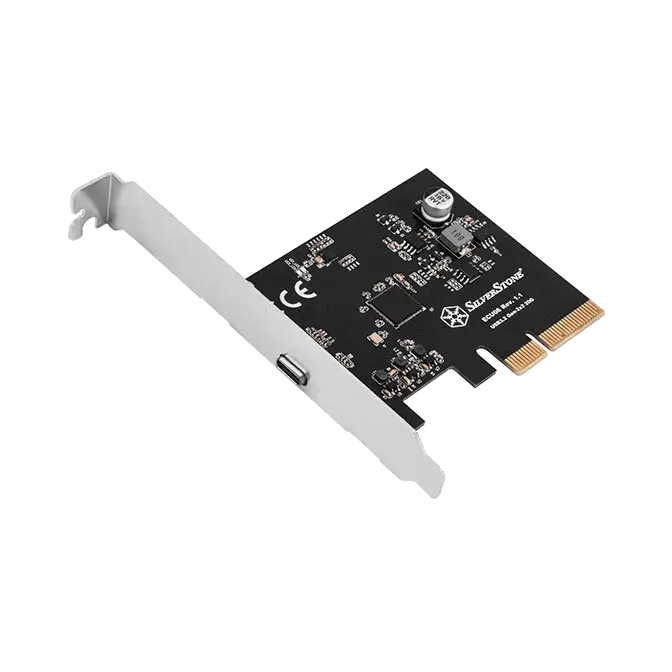

Includes optional low profile slot cover for supporting low profile cases
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-ECU06
Manufacturer Website
Model No.
SST-ECU06
Host interface
Low profile – PCI Express Gen 3 x4 (32GT/s)
USB Ports
USB 3.2 Gen 2x2 Type-C port.
USB 3.2 controller
ASMedia ASM3242
Transmitting Speed
USB 3.2 Gen 2x2 (20Gbps), USB 3.2 Gen 2x1 (10Gbps), USB 3.2 Gen 1 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Power requirement
PCI Express bus power
Power Management
Support USB 3.2 and USB 2.0 link power management
Current protection
Support over current detection
Operation Temperature
Operating temperature range: 0 ~ 85 ºC
Storage temperature range: -20 ~ +70 ºC
Humidity range: 5 ~ 95% RH
Operating system support
Windows 8-10, Windows Server 2016-2019, Mac10.X, Linux OS* in-box xHCI driver natively support UASP, no additional driver required
Dimension
123mm (W) x 21mm (H) x 105mm (D)
Net weight
47g
Extra
UASP and Multiple INs function
