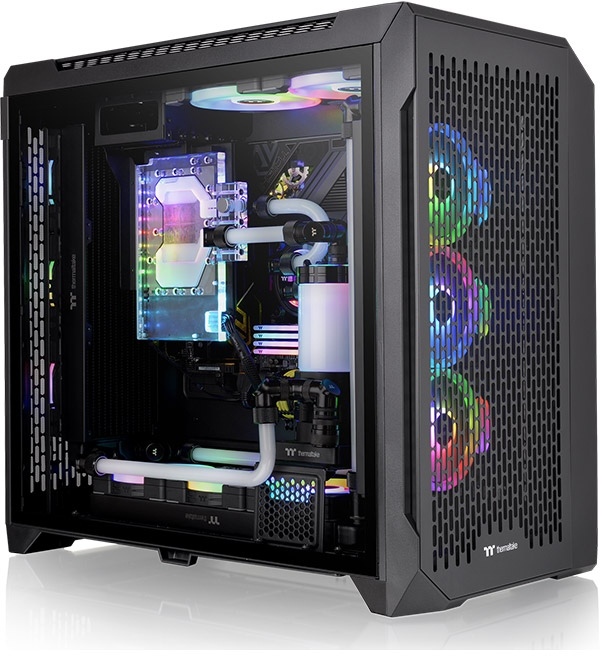

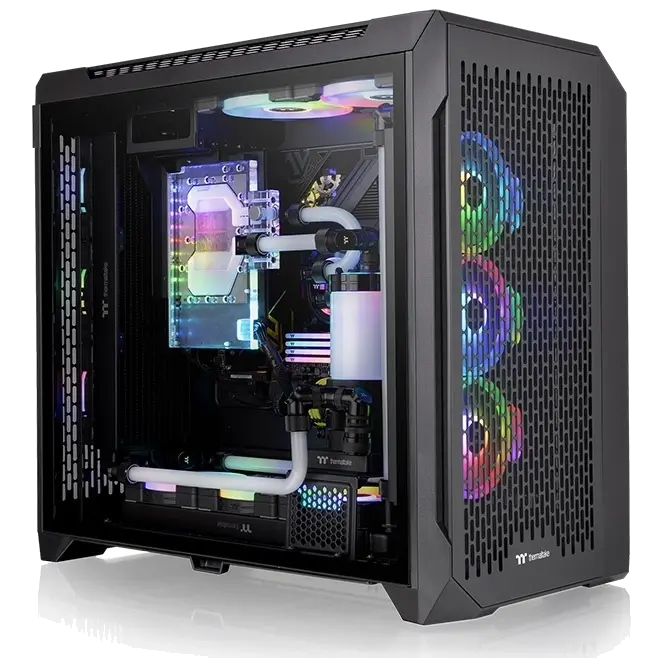

Thermaltake E-ATX CTE C750 Air Full Tower Case Black CA-1X6-00F1WN-00
Web ID: 36008
The CTE C750 Air is a specially designed E-ATX full tower chassis from the new CTE form factor series that emphasizes maximum airflow and is designed to provide high levels of thermal performance to critical components. It comes with three pre-installed 140mm CT140 fans and can support up to 420mm AIO radiators at the front, motherboard side and rear of the chassis.
Manufacturer Warranty: 3 Year
Manufacturer PN: CA-1X6-00F1WN-00
Manufacturer Website
$259
| P/N | CA-1X6-00F1WN-00 |
|---|---|
| CASE TYPE | Full Tower |
| DIMENSION (H X W X D) | 565.2 x 327 x 599.2 mm (22.25 x 12.87 x 23.59 inch) |
| NET WEIGHT | 16.7 kg / 36.82 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1 |
| COLOR | Black |
| MATERIAL | SPCC / ABS |
| COOLING SYSTEM | Front(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Rear(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm 1 x 140mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler max height: 190mm VGA max length: 370mm (With radiator) 420mm (Without radiator) PSU max length: 220mm |
