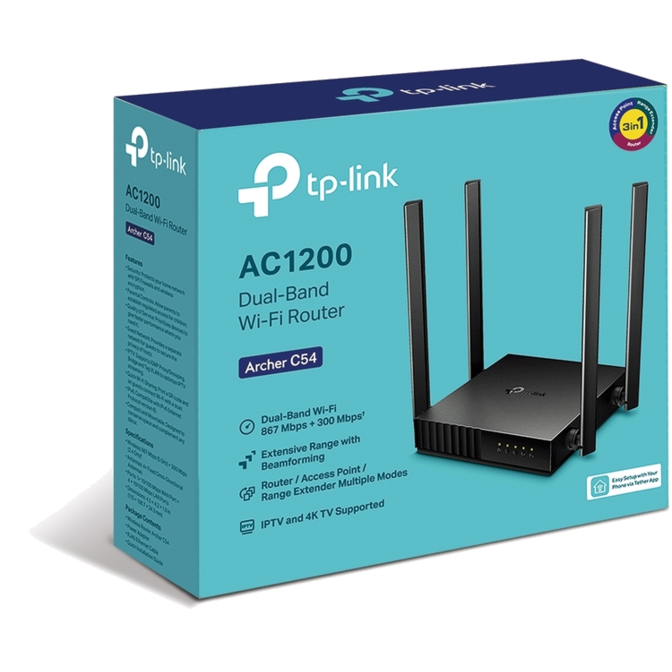

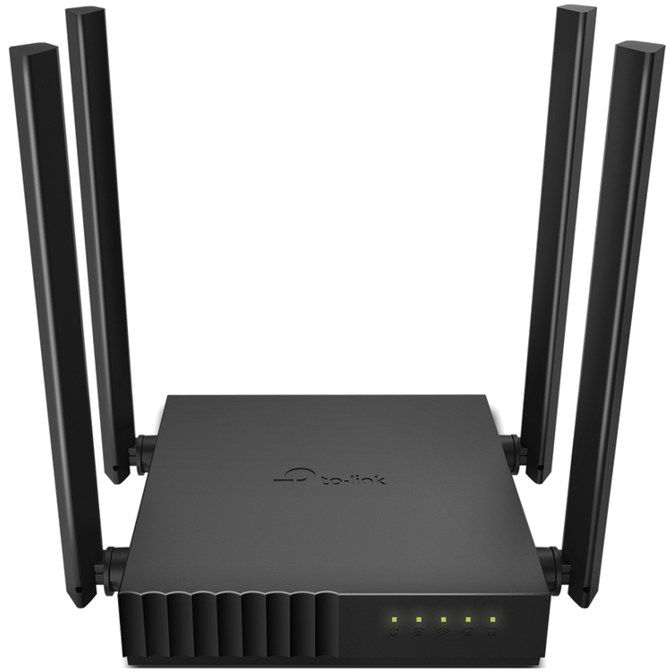

TP-Link Archer C54 Wireless-AC1200 Dual-Band Wi-Fi Router

Web ID: 28614

Faster AC Wi-FiAC1200 dual-band is ideal for 4K video streaming and high-speed downloading. Far-Reaching Coverage4 antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections. Multi-Mode 3-in-1Supports Router, Access Point, and Range Extender modes for added flexibility. Parental ControlsManages when and how connected devices can access the internet. Guest NetworkProvides separate access for guests in order to secure the host network. Smooth HD StreamingSupports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming. IPv6 SupportedCompatible with the IPv6 (the latest Internet Protocol version 6). Compact and MountableDesigned to conserve space and complement any dcor.
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer C54
GTIN: 6935364089337
Manufacturer Website

Family Wi-Fi.
Palm-Sized.

AC1200 Dual Band WiFi Router

Archer C54

  •

    Dual-Band WiFi

  •
  •

    AC1200 WiFi Speed

  •
  •

    Beamforming

  •
  •

    MU-MIMO

  •
  •

    Compact Design

  •
  •

    Parental Controls

867Mbps

5 GHz

|

4K | Gaming | Video

Faster and clearer Wi-Fi ensures smooth 4K streaming

300Mbps

2.4 GHz

|

Email | Photo | Internet

Wall-Penetrating signal covers the whole apartment*

Fast Dual-Band WiFi

Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

Boosted Signal throughout Your Home

Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered.

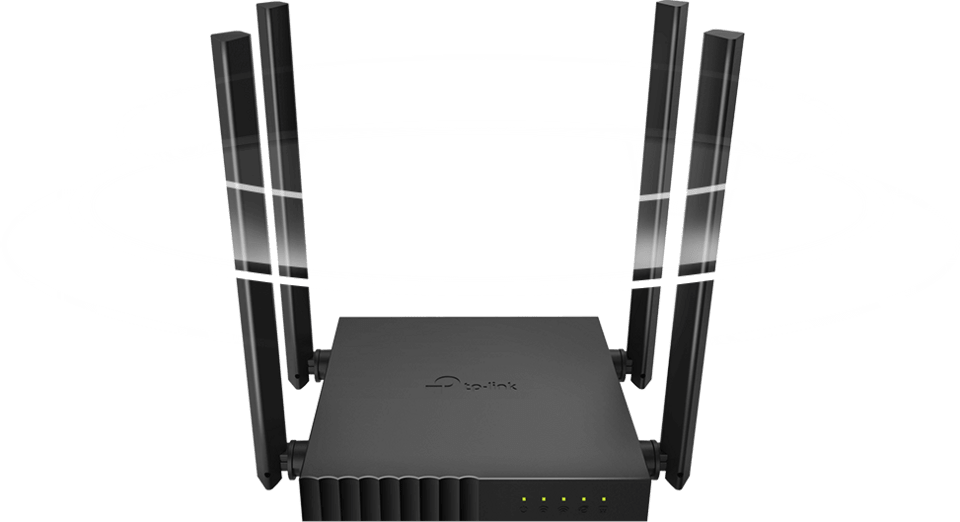

4x Antennas

4× Antennas

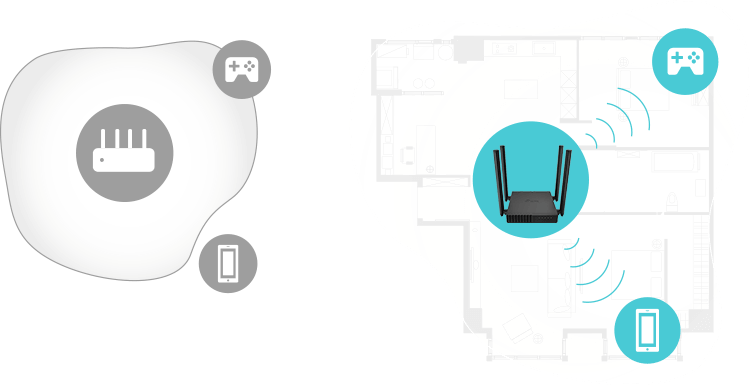

Beamforming

Beamforming

Talk to Devices Simultaneously

Equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.

Multi-Mode 3 in 1

Multi-Mode 1

Internet

Archer C54

Router Mode (Default)

Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.

 Multi-Mode 1

Internet

Host Router

Archer C54

Access Point Mode

Transform your existing wired network into a wireless one.

 Multi-Mode 1

Internet

Host Router

Archer C54

Range Extender Mode

Boost the existing wireless coverage in your house.

More Functions Despite the Size

Versatile Management

Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.

  •
    Parental Controls
    Block content
    Block content
  •
    Guest Network
    Use a different password
    Secure private network
  •
    QoS
    Prioritize devices

High Priority

Standard Priority

Standard Priority

Parents

Children

Guests

20:00

Study time

18:00





IPv6 Supported





IPTV Supported





Easy Wi-Fi Sharing





LED Control

Traditional Dual-Band Router

Archer C54

High Integration, Compact Size

Archer C54's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and multi-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.

As Stable as a Larger One

Archer C54 goes through rigorous repeated testing to ensure a final product reliable under serveral strenuous environments. The final result: 8 randomly selected Archer C54 routers collectively tested for 1,936 hours.

Continuous Transmission Test :

24 h

(Continuous 10 GB file uploads and downloads.)



Structure Test :

1.5 m + 120 min

(Drop impact test from 1.5 m height and a 120 min vibration test.)



Harsh Environment Test :

48 h

(Storage temperature: 70 °C and -20 °C.)



RAM Stress Test :

≥ 25,000

(Read and write combined.)



Capacity Test :

16 devices + 7 days

(16 connected Wi-Fi devices continuously streaming for 7 days without dropping WiFi.)



Flash Test :

≥ 2,000 I/O

(Read and write combined.)

Place it Anywhere

Easy Setup at
Your Fingertips

Set up Archer C54 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.

QRcode

App

Apple StoreGoogle Store

Dimension and Ports

Archer C54 Size

5.6 in(141.2 mm)

1.0 in (24.3 mm)

4.5 in (115 mm)

4.2 in (106.7 mm)

Archer C54 Ports

Power

WPS/Rest Button

Fast Ethernet WAN Port

Fast Ethernet LAN Ports

WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 3 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes Router Mode
Access Point Mode
Range Extender Mode
HARDWARE
Processor Single-Core CPU
Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons WPS/Reset Button
Power 9 V ? 0.85 A
SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)
Package Contents Wi-Fi Router Archer C54
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity 5GHz:
11a 6Mbps:-93dBm;
11a 54Mbps:-78dBm;
11ac HT20 mcs8:69dBm;
11ac HT40 mcs9:-66dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;
