Ubiquiti 305M CAT6 White Indoor CMR Cable
Web ID: 39050
Category 6 Ethernet cable for high-speed, indoor deployments.
Category 6 UTP communications multipurpose cable
Riser (CMR)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: U-Cable-C6-CMR
Manufacturer Website
UniFi® Category 6 indoor Ethernet cable is designed for your UniFi and general indoor network deployments that require plenum-rated cabling.
Available in lengths of 1000 ft (305 m), UC-C6-CMR is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 1 Gbps. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.
CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications. We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors.

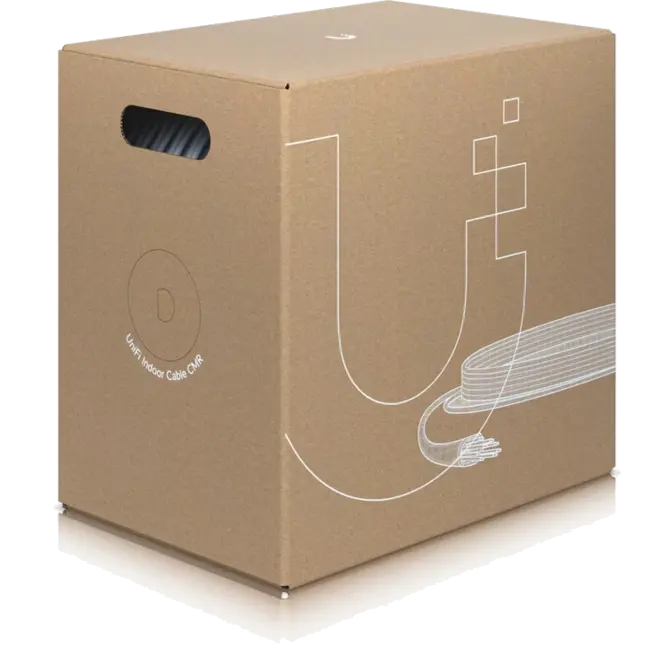

| Box dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box weight | 14.8 kg (32.7 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 6 |
| Shielding type | UTP |
| Flame rating | CMR |
| Conductor wire gauge | 23 AWG |
| Conductor type | Solid bare copper |
| Jacket material | PVC |
| Jacket diameter | 6.0 ± 0.2 mm |
| Bend radius | Min. 24 mm |
| Pulling tension | Max. 110 N |
| Storage temperature | -20 to 75°C (-4 to 167°F) |
| Installation temperature | 0 to 60°C (32 to 140°F) |
| Operation temperature | -20 to 60°C (-4 to 140°F) |
| Anti-crosstalk divider | Yes |
| Ripcord | Yes |
| Data rate | 10/100/1000 Base-T |
| Reference bandwith | Up to 600 MHz |
| Standards | Electrical transmission: ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) IEC 61156-5 (Edition 2.1) Flame test: UL 1666 (CMR) Material and construction: UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
