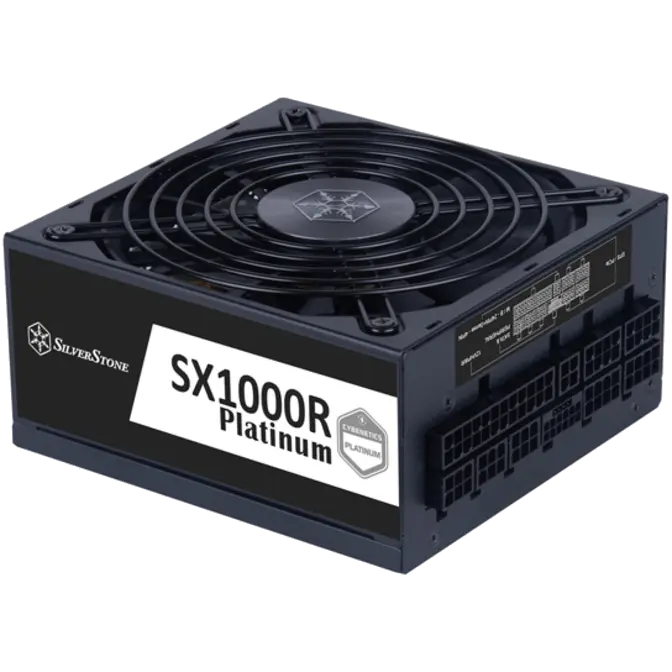

1000 Watt Silverstone SX1000R-PL Platinum Gen5 Modular SFX Power Supply
Web ID: 38055
SFX-L form factor for use in small form factor computers
Supports 12VHPWR PCIe connector with SFX12V 4.0 and PCIe Gen 5 standard
1000W continuous power output rated for 24/7 operation
Class-leading single +12V rail with 83.3A
High efficiency with Cybenetics Platinum certification
Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
24/7 continuous power output with 50 operating temperature
High quality construction with all Japanese capacitors
Manufacturer Warranty: 5 Year
Manufacturer PN: SST-SX1000R-PL
Manufacturer Website
Product No.
SST-SX1000R-PL
Model (safety certification)
SST-SX1000-LPT
Color
Black (lead-free paint)
Max. DC Output
1000W
Power density
969W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 25A | 25A | 83.3A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 100mV | 40mV | 80mV |
Combined +3.3V & +5V
125W
Combined +12V
999.6W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

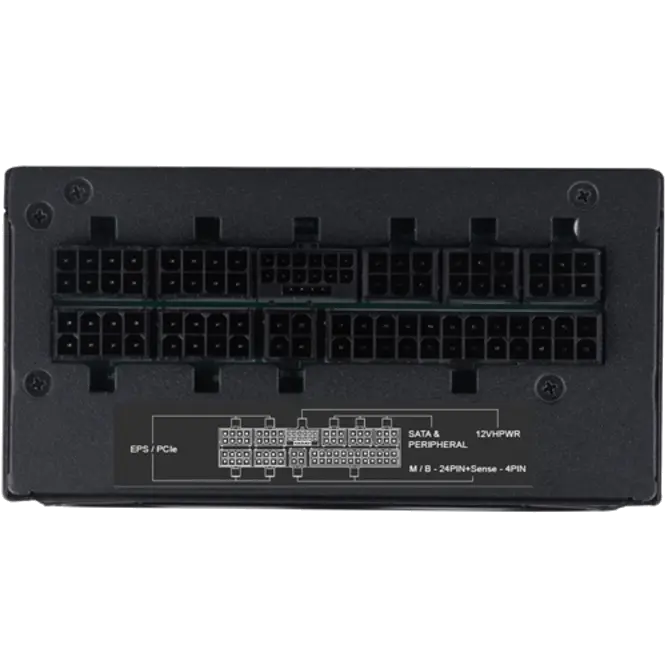

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
8 x SATA connector
3 x 4-Pin Peripheral connector + 1 x 4-Pin Floppy adapter connector
Cooling System
Single 120mm dual ball bearing fan
Noise Level
0 ~ 36 dBA
Certification
Cybenetics Platinum
Form factor
SFX-L
Dimension
125mm (W) x 63.5mm (H) x 130mm (D)
4.92” (W) x 2.5” (H) x 5.12” (D)
Weight
1.39 kg
Other
GPU Support list
Compatible with ATX12V v2.4
