1200 Watt NZXT Gen5 80 Plus Gold Modular Power Supply PA-2G1BB-AU

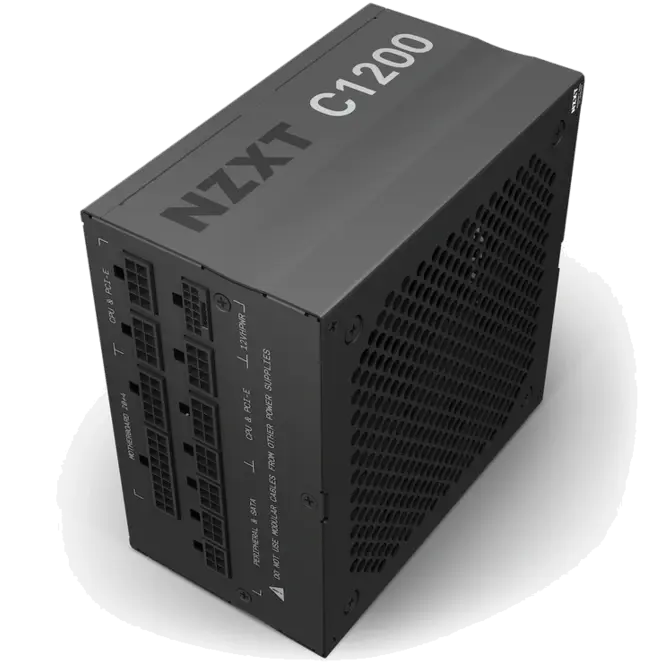

1200 Watt NZXT Gen5 80 Plus Gold Modular Power Supply PA-2G1BB-AU

Web ID: 35650

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.
16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
Built and tested with the strictest standards for trouble-free installation and operation
90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
Zero Fan Mode stops the fan when under light loads to reduce system noise
135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
Constructed with high-quality Japanese 105C capacitors

Manufacturer Warranty: 10 Year
Manufacturer PN: PA-2G1BB-AU
GTIN: 810074842594
Manufacturer Website

$279SAVE $20
 Add to cart
In Stock
 Compare
 Wish List
 Question

1200 watt nzxt gen5 80 plus gold modular power supply pa-2g1bb-au

OUTPUT CONNECTORS

  • 24-pin ATX power:1

  • 4+4-pin CPU power:1

  • 8-pin CPU Cable :1

  • 6+2-pin PCIe power :2

  • 16-pin (12+4) 12VHPWR PCIe Cable:1

  • SATA power :8

  • Peripherals :4

CABLE SPECS

  • 24-pin ATX power:600 mm, Nylon sleeving

  • 4+4-pin CPU power:700 mm, Nylon sleeving

  • 8-Pin CPU Power Cable:700mm, Nylon sleeving

  • 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

  • 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving

  • SATA power:500 + 150 mm

  • Peripherals:500 + 150 mm

AC INPUT RATING

  • 100 - 240Vac:14A-7A 50Hz-60Hz

DC OUTPUT RATING

  • +3.3V and +5V:22A (120W)

  • +12V:100A (1200W)

  • -12V:0.3A (3.6W)

  • 5Vsb:3A (15W)

  • Total:1200W

OPERATION

  • PF Correction:Active @0.96

  • MTBF:100,000 hours

  • Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

  • Rating:80 Plus Gold

  • 20% loading:87.5% @115Vac

  • 50% loading:90.5% @115Vac

  • 100% loading:87.5% @115Vac

FAN SPECS

  • Dimensions:135 x 135 x 25 mm

  • Speed:0-2300 ± 10% RPM

  • Airflow:93.02 CFM (Tpy.)

  • Noise:44.5 dBA max

  • Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

  • Dimensions:150 x 150 x 86mm

  • Material(s):Steel, PCB and Plastic

  • Compliance Standard:ATX12V v3.0 / EPS12V v2.92

  • Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

  • Warranty:10 years

  • Model Number:PA-2G1BB

UPC

  • UPC (CN):810074842549

  • UPC (US):810074842563

  • UPC (EU):810074842570

  • UPC (UK):810074842587

  • UPC (AU):810074842594

  • UPC (JP):810074842600

  • UPC (WO):810074842631

EAN

  • EAN (CN):5056547202464

  • EAN (US):5056547202488

  • EAN (EU):5056547202495

  • EAN (UK):5056547202501

  • EAN (AU):5056547202518

  • EAN (JP):5056547202525

  • EAN (WO):5056547202556
