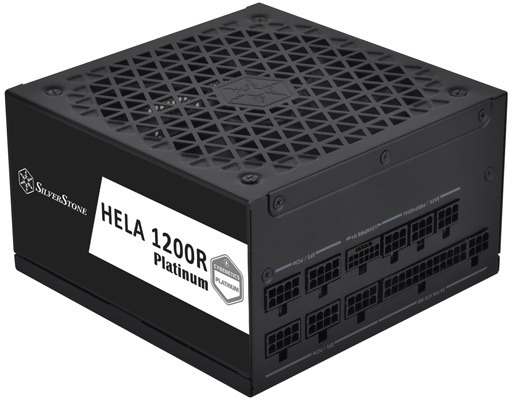

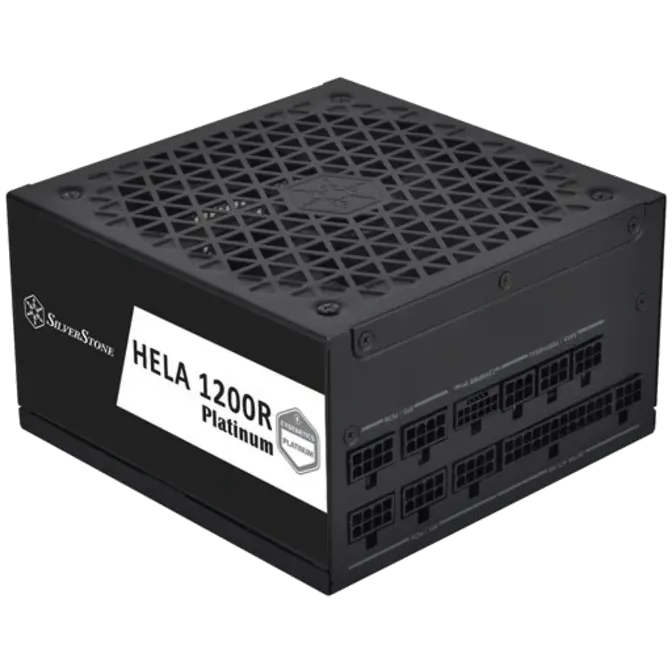

1200 Watt SilverStone Platinum HA1200R-PM Gen5 Modular Power Supply
Web ID: 34704
100% modular cables
Super flexible black flat cables
All Japanese electrolytic capacitors
Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
24/7 continuous power output with 50 operating temperature
CASH PRICE
Manufacturer Warranty: 5 Year
Manufacturer PN: SST-HA1200R-PM
GTIN: 844761025564
Manufacturer Website
Product No.
SST-HA1200R-PM
Model (safety certification)
SST-AX1200MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1200W
Power density
620W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 22A | 22A | 100A | 2.5A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | +5/-7% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 70mV | 40mV | 40mV |
Combined +3.3V & +5V
120W
Combined +12V
1200W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥87% & <89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
6 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
12 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy connector
Cooling System
Silent 135mm FDB fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 150mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D)
Weight
2.9 kg
