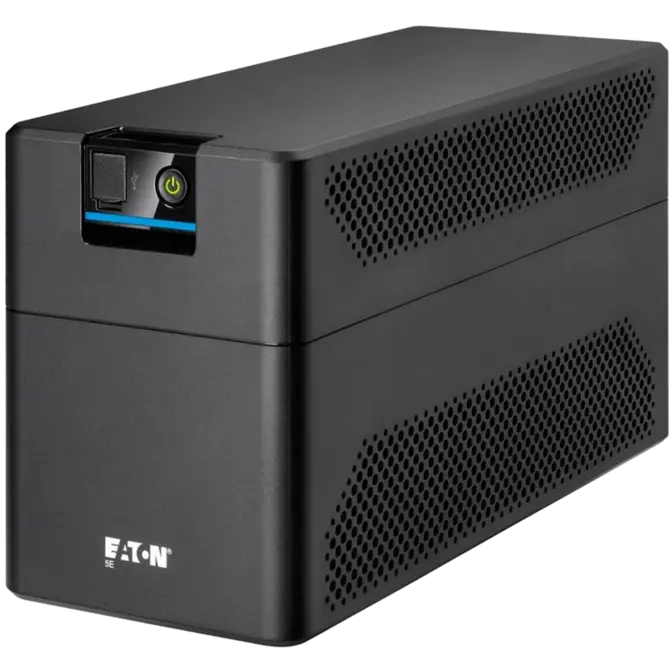

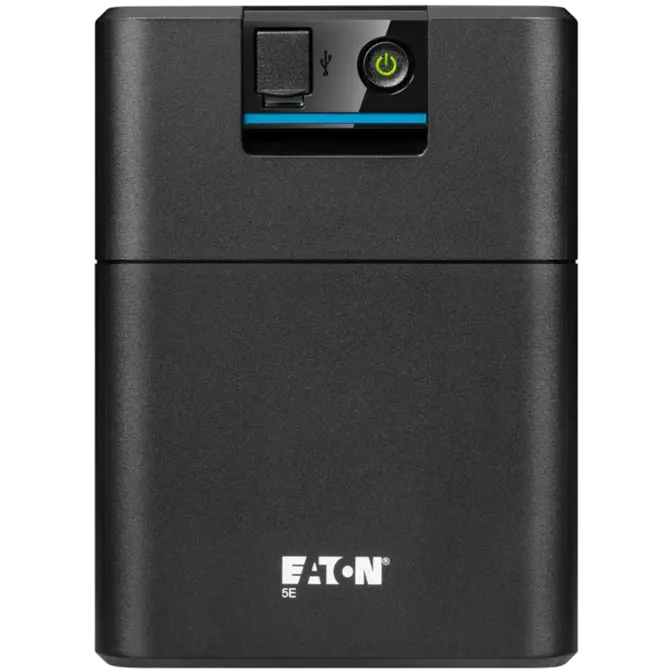

1200VA Eaton 5E Gen 2 1200UI UPS PN 5E1200UIAU
Web ID: 37155
1200VA, Eaton 5E Gen2 UPS protects application and data against power loss, Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (under and overvoltage) to save battery power in the event of power outage, A wide product range covers the power requirements of many IT devices, Auto-restart function enables the UPS to restart automatically when mains power recovers after a total battery discharge. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: 5E1200UIAU
GTIN: 3553340704413
Manufacturer Website
PRODUCT NAME
Eaton 5E Gen2 UPS
CATALOG NUMBER
5E1200UI
EAN
3553340704277
PRODUCT LENGTH/DEPTH
330 mm
PRODUCT HEIGHT
180 mm
PRODUCT WIDTH
133 mm
PRODUCT WEIGHT
8.13 kg
WARRANTY
2 year
COMPLIANCES
CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY - MAX
60 Hz
WATTAGE
660 W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
140 V
OUTPUT VOLTAGE - MAX
257 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE - MIN
195 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
195-257 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-63 Hz
INTERNAL BYPASS
No
INPUT VOLTAGE - MAX
300 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS
3
OPERATING TEMPERATURE - MIN
0 °C
VA RATING
1200 VA
POTENTIAL FREE SWITCH CONTACT
No
PHASE (INPUT)
1
PACKAGE CONTENTS
Quick start
Safety instructions
FEED TYPE
1
RUNTIME GRAPH
USER INTERFACE
LEDs
BATTERY QUANTITY
2
OPERATING TEMPERATURE - MAX
40 °C
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-90% non-condensing
OUTPUT APPARENT POWER
1200 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY - MIN
45 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
140-300 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY - MAX
63 Hz
PRODUCT NAME
Eaton 5E Gen2 UPS
CATALOG NUMBER
5E1200UI
EAN
3553340704277
PRODUCT LENGTH/DEPTH
330 mm
PRODUCT HEIGHT
180 mm
PRODUCT WIDTH
133 mm
PRODUCT WEIGHT
8.13 kg
WARRANTY
2 year
COMPLIANCES
CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY - MAX
60 Hz
WATTAGE
660 W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
140 V
OUTPUT VOLTAGE - MAX
257 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE - MIN
195 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
195-257 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-63 Hz
INTERNAL BYPASS
No
INPUT VOLTAGE - MAX
300 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
6
OPERATING TEMPERATURE - MIN
0 °C
VA RATING
1200 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(6) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
(2) IEC-IEC output cables
Quick start
Safety instructions
FEED TYPE
1
RUNTIME GRAPH
USER INTERFACE
LEDs
BATTERY QUANTITY
2
OPERATING TEMPERATURE - MAX
40 °C
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-90% non-condensing
OUTPUT APPARENT POWER
1200 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY - MIN
45 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
140-300 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY - MAX
63 Hz
