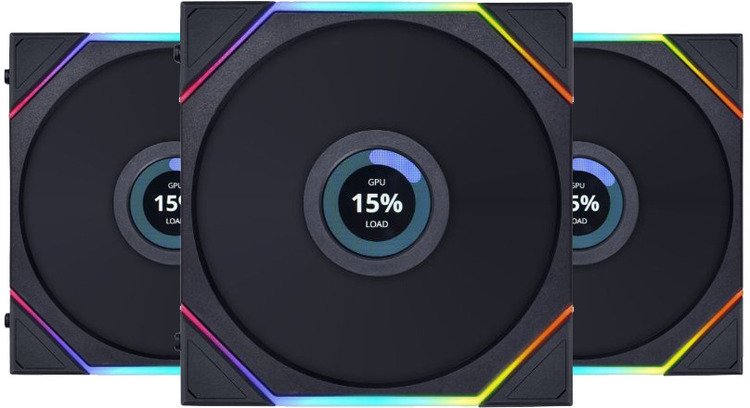

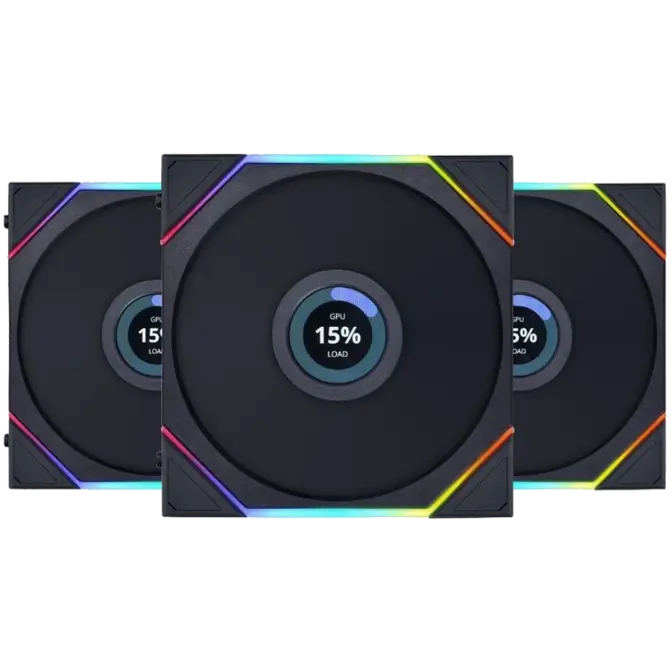

120mm Lian Li TLLCD120-3B UNI FAN TL LCD ARGB Black 3 Pack with LCD Screen and Controller
Web ID: 42044
1.6 LCD Screen with 400400 resolution.
Supports GIF, MP4, JPG, and PNG files.
Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
UNIFAN interlocking system for ease of cable management.
The controller is required to use the fans.
Manufacturer Warranty: 3 Year
Manufacturer PN: 12TLLCD3B
Manufacturer Website
$245
| PRODUCT NAME | UNI FAN TL LCD 120 | UNI FAN TL LCD 140 | ||||
|---|---|---|---|---|---|---|
| MODEL | 12TLLCD3B | 12TLLCD3W | 12TLLCD1B | 12TLLCD1W | 14TLLCD1B | 14TLLCD1W |
| COLOR | Black | White | Black | White | Black | White |
| NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 |
| CONTROLLER | Yes | No | NO | |||
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) | UNI FAN Controller Cable x 1 (P-7P) | UNI FAN Controller Cable x 1 (P-7P) | |||
| FAN DIMENSION | 124 x 120 x 28 mm | 144 X 140 X 28 (mm) | ||||
| FAN SPEED | 0, 350~1900 RPM | 0, 400~1600 RPM | ||||
| MAX. AIR PRESSURE | 2.9 mmH2O (Maximum) | 3.5 mmH2O (Maximum) | ||||
| MAX. AIRFLOW | 62 CFM (Maximum) | 68.1 CFM (Maximum) | ||||
| ACOUSTIC NOISE | 27 dB(A) Max | 28.5 dB(A) Max | ||||
| INPUT POWER | 7.08W | 6.72W | ||||
| MATERIAL | PA66 / PBT | |||||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||
| OPERATE VOLTAGE | DC12V & 5V | |||||
| WARRANTY | 3 years | |||||
