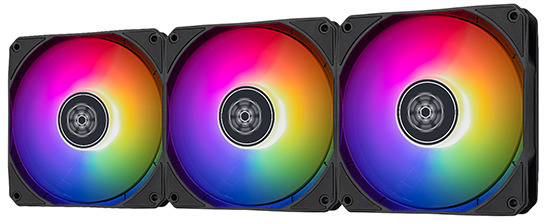

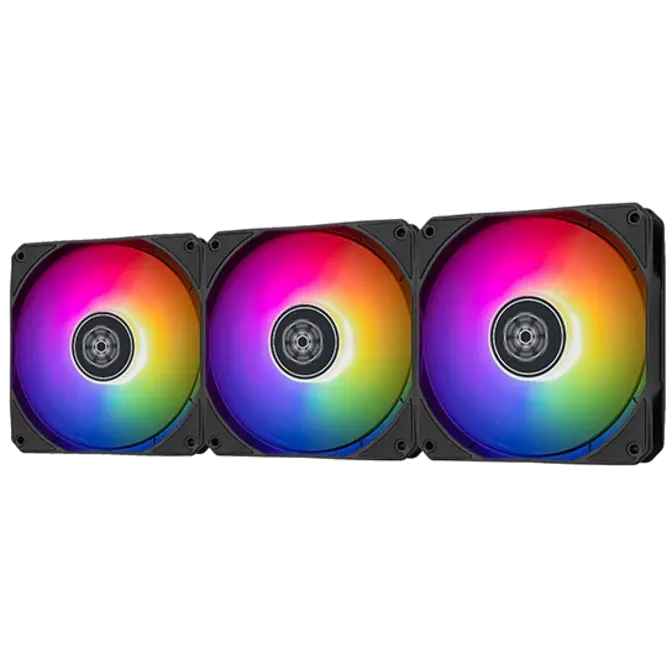

120mm Silverstone Air Nexus 120 ARGB Black Case Fans
Web ID: 42256
PLEASE NOTE:Fans Don't Function Seperately.
Interlock connection mechanism significantly reduce visible system cable clutter and streamlines installation
Wide 500~1,500 RPM speed range via PWM control
Standard 4-1 pin ARGB lighting, synced via an ARGB controller or ARGB compatible motherboards
Hydraulic bearing reduces friction and maintain low operational noise
Integrated rubber padding helps to further reduce vibrational noise
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-AN120B-ARGB-3PK
GTIN: 844761027667
Manufacturer Website
Model No.
SST-AN120B-ARGB-3PK (Black)
SST-AN120W-ARGB-3PK (White)
Material
Polycarbonate fan blades, PBT frame
Color
Translucent fan blades, black frame(SST-AN120B-ARGB-3PK)
Translucent fan blades, white frame(SST-AN120W-ARGB-3PK)
Bearing
Hydraulic bearing
Connectors
4 pin PWM connector, 4-1 pin ARGB (5V LED)
Rated Voltage
12V
Starting Voltage
7V
Rated Current
0.18A
Rated Power
Fan:2.16W
LED:1.8W
Speed
500±200 ~ 1,500 ±10% RPM
Airflow
60.4 CFM
Static Pressure
1.4 mmH2O
Noise Level
30 dBA
Dimension
120mm (W) x 25mm (H) x 120 mm (D)
4.72" (W) x 0.98" (H) x 4.72" (D)
Weight
422g
*Please do not hot-swap the fan-to-fan connector during operation to prevent potential damage and degradation of the fan's lifespan.
**As only 1 of the 3 fans has PWM and ARGB cable output, the other 2 must be connected to it for operation.
