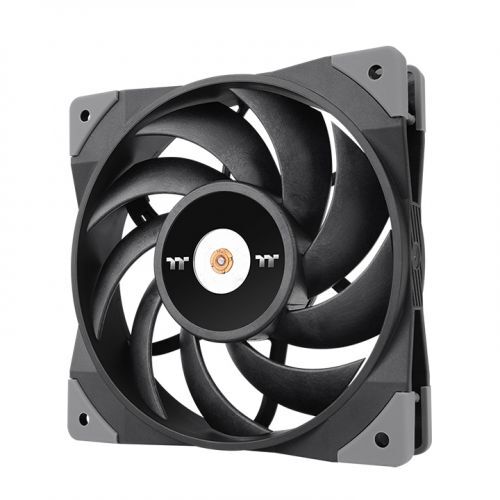

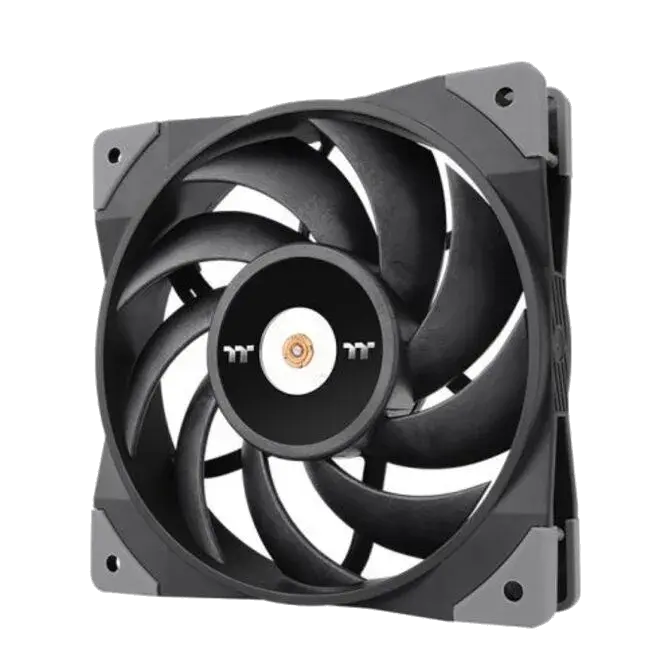

120mm Thermaltake TOUGHFAN 12 High Static Pressure Case Fan CL-F117-PL12BL-A

Web ID: 29131

Thermaltake TOUGHFAN 12 120mm High Static Pressure Radiator Fan (Single Fan Pack), Dimensions: 120x120x25mm, Interface: 4 Pin PWM, Fan Rated Voltage: 9V, Rated Current: 0.12A, Power Input: 1.44W, Fan Speed: PWM 500~2000 RPM With LNC PWM 500~1500 RPM, Max Airflow: 58.35 CFM, Max Static Pressure 2.41mm-H2O, Noise Level: 22.3 db-a (without LNC), 19.2 db-a (with LNC), Bearing Type: Hydraulic Bearing Gen.2, Life Expectation: 40,000 hrs, CL-F117-PL12BL-A
Manufacturer Warranty: 2 Year
Manufacturer PN: CL-F117-PL12BL-A
GTIN: 841163076781
Manufacturer Website

thermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-a

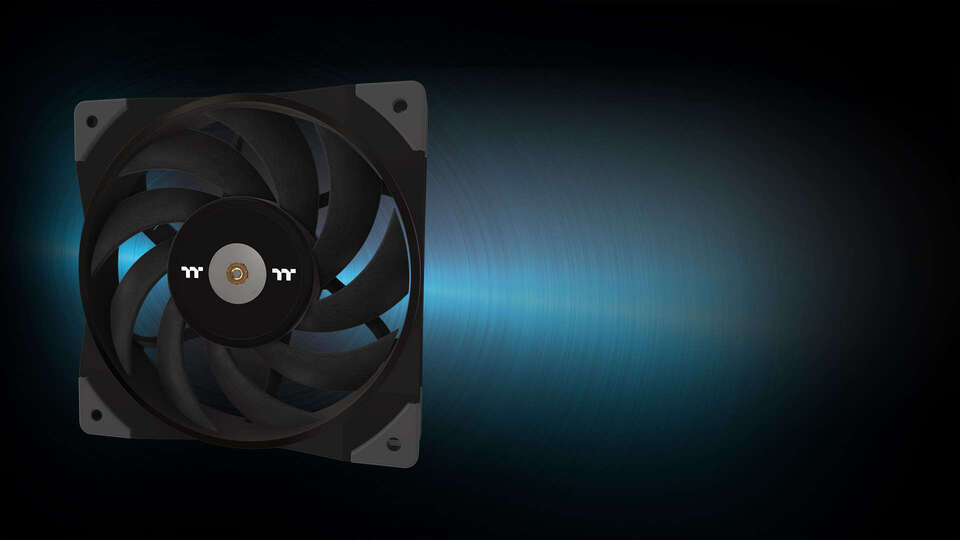

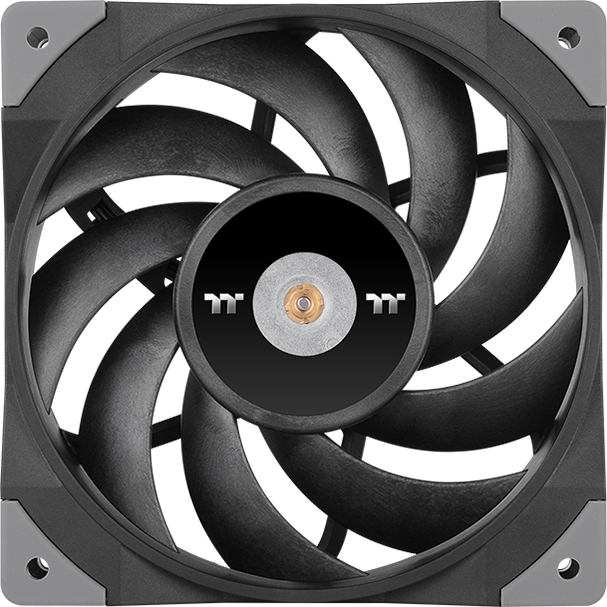

Exceptional Blade Design

Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.


thermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-a

Metal-Reinforced Motor Hub

The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.


thermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-athermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-a

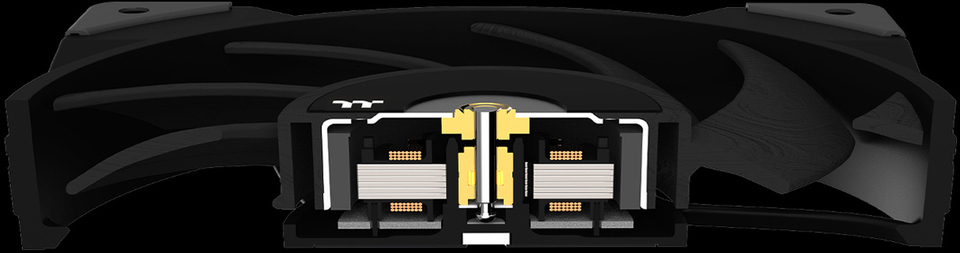

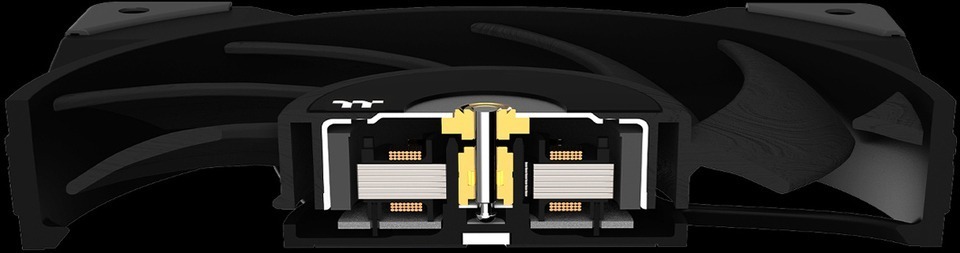

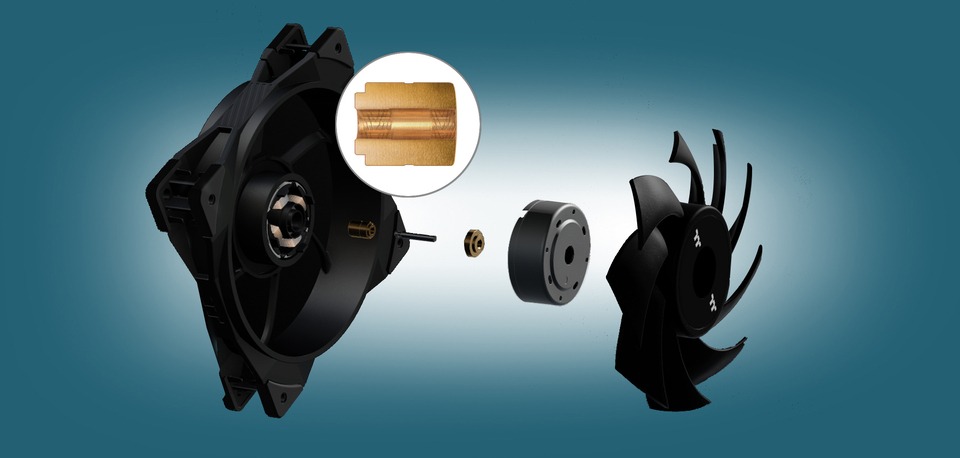

The 2nd Generation Hydraulic Bearing

The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.


thermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-athermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-athermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-a

Built for Superior Cooling

The TOUGHFAN is designed for all cooling applications. It’s your perfect go to solution whether your using it as radiator fan or on a air cooler. Level up with the TOUGHFAN for superior cooling performance.


thermaltake toughfan 12 120mm high static pressure radiator fan cl-f117-pl12bl-a

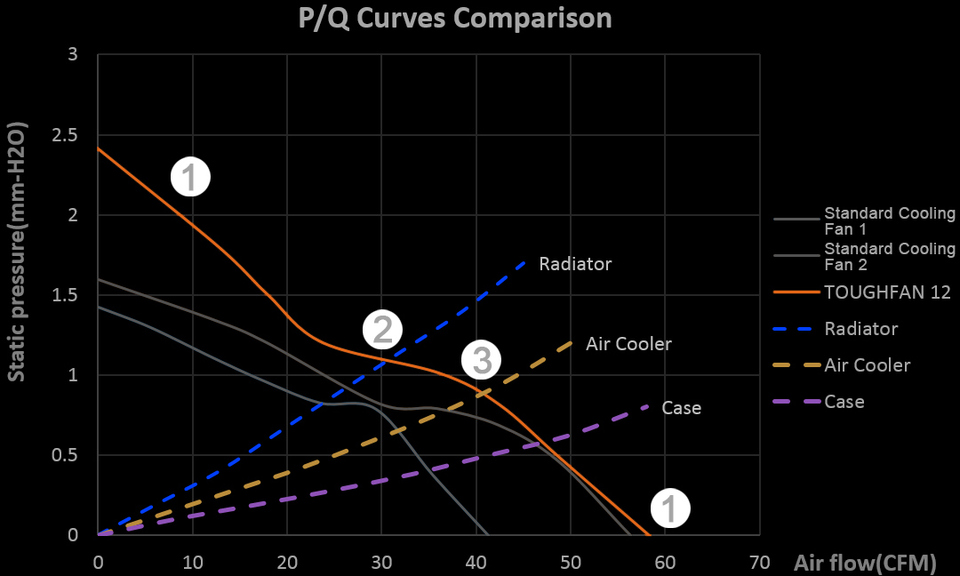

*1. Designed for all air cooling applications. (58.35CFM & 2.41mm-H2O)
*2. Best for radiator fans. (With higher static pressure than other standard cooling fans)
*3. Best for air coolers. (With higher static pressure than other standard cooling fans)

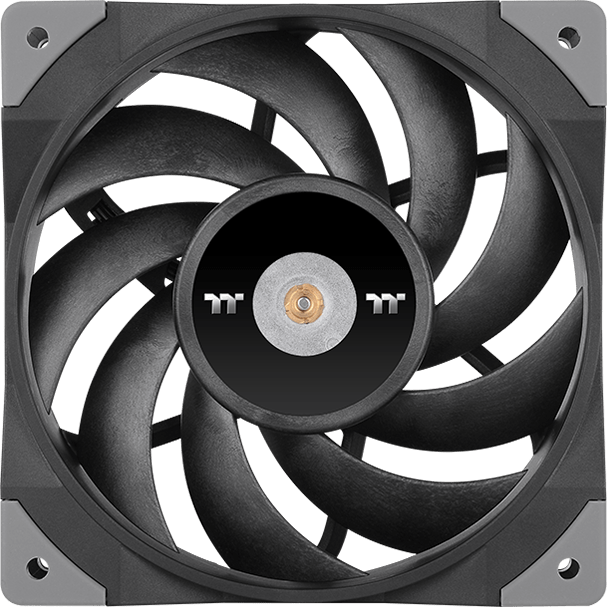

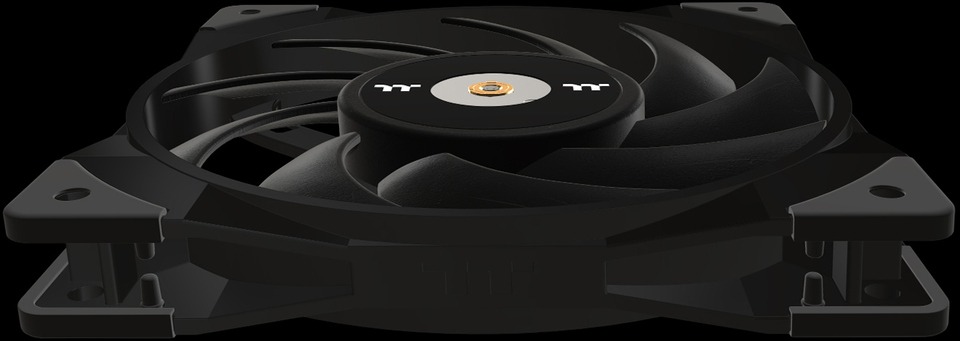

Anti-Vibration Mounting System

The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

More Information
P/N CL-F117-PL12BL-A
FAN DIMENSION 120 x 120 x 25 mm
FAN STARTED VOLTAGE 9.0 V
FAN RATED VOLTAGE 12 V
RATED CURRENT 0.12 A
POWER INPUT 1.44 W
FAN SPEED 500 ~ 2000 R.P.M
With L.N.C PWM 500~1500 R.P.M
MAX. STATIC PRESSURE 2. 41mm-H2O
MAX AIR FLOW 58.35 CFM
NOISE 22.3 db-a (without L.N.C)
19.2 db-a (with L.N.C)
BEARING TYPE Hydraulic Bearing Gen. 2
LIFE EXPECTATION 40,000 hrs, 25?
CONNECTOR 4 PIN PWM
WEIGHT 212.5 g (Fan*1)
