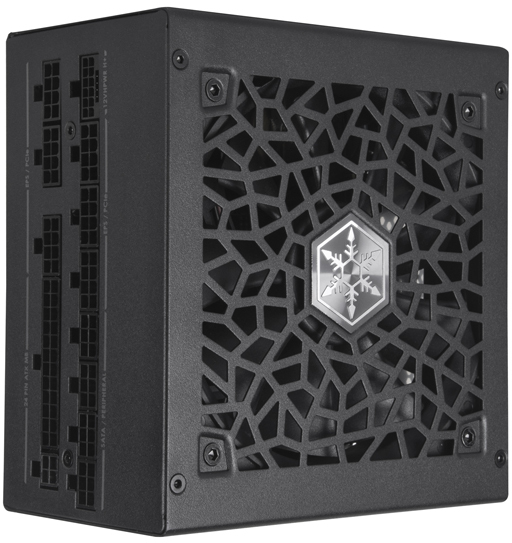

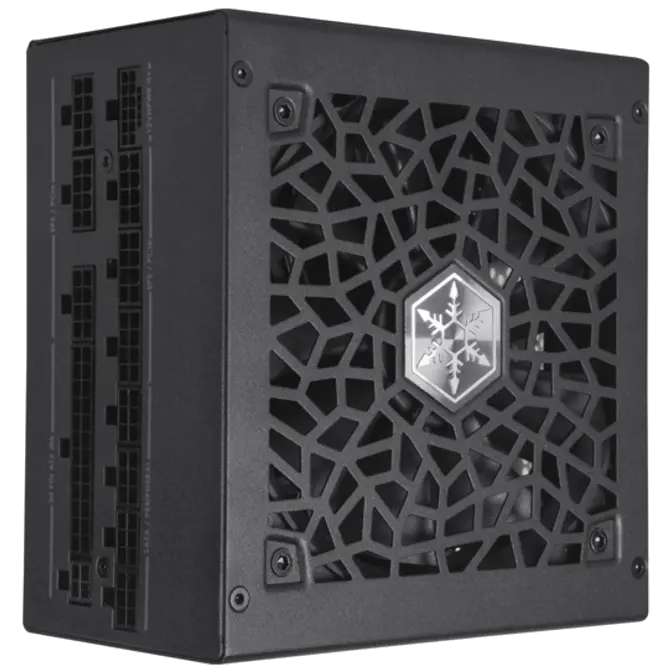

1300 Watt SilverStone Platinum HA1300R-PM Gen5 Modular Power Supply
Web ID: 38429
Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
High efficiency with Cybenetics Platinum certification
Super flexible black flat cables
100% modular cables
24/7 continuous power output with 50 operating temperature
All Japanese electrolytic capacitors
Silent running 120mm FDB fan with semi-fanless and delayed shut-off function
180 angled SATA connectors designed for stack mounted hard drives
Manufacturer Warranty: 5 Year
Manufacturer PN: SST-HA1300R-PM
GTIN: 844761025687
Manufacturer Website
Product No.
SST-HA1300R-PM
Model (safety certification)
SST-AX1300MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1300W
Power density
720W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 24A | 24A | 108.3A | 3.0A | 0.5A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | +5/-7% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
Combined +3.3V & +5V
120W
Combined +12V
1300W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥89% & <91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
No load operation

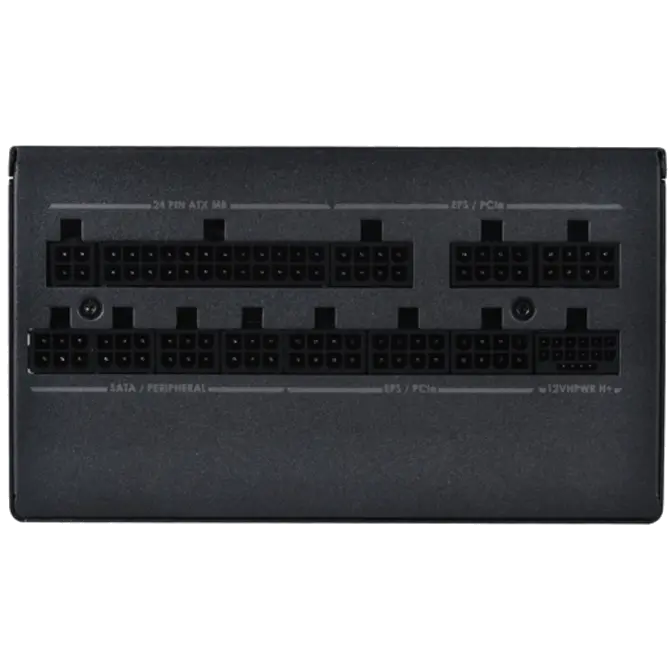

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
1 x 12+4-Pin 12VHPWR connector
8 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors
Cooling System
Silent 120mm FDB fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
2.93 kg
