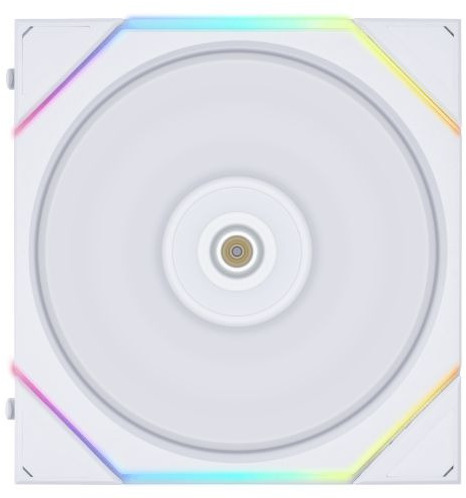

140mm Lian Li TL140-1W UNI FAN TL ARGB PWM White Fan
Web ID: 42036
Noise-optimized and performance-oriented fan.
Features two light zones for increased lighting customizability.
UNIFAN interlocking system for ease of cable management.
Support up to 10 fans per controller port via a daisy-chain POGO cable.
LED lighting and fan speed controller shared with UNIFAN TL LCD.
The controller is required to use the fans.
Manufacturer Warranty: 3 Year
Manufacturer PN: 14TL1W
GTIN: 840353045224
Manufacturer Website
$59
| PRODUCT NAME | UNI FAN TL 120 Reverse Blade | UNI FAN TL 140 Reverse Blade | ||||
|---|---|---|---|---|---|---|
| MODEL | 12RTL3B | 12RTL3W | 12RTL1B | 12RTL1W | 14RTL1B | 14RTL1W |
| COLOR | Black | White | Black | White | Black | White |
| NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 |
| CONTROLLER | Yes | No | NO | |||
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) Power Adapter Cable x 1 (P-SA) |
UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) |
UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) |
|||
| FAN DIMENSION | 124 x 120 x 28 mm | 144 X 140 X 28 (mm) | ||||
| FAN SPEED | 0, 200~2300 RPM | 0, 200~1800 RPM | ||||
| MAX. AIR PRESSURE | 2.66 mmH2O (Maximum) | 2.27 mmH2O (Maximum) | ||||
| MAX. AIRFLOW | 83.4 CFM (Maximum) | 101.6 CFM (Maximum) | ||||
| ACOUSTIC NOISE | 34 dB(A) Max | 31 dB(A) Max | ||||
| INPUT POWER | 4.5W | 4.6W | ||||
| MATERIAL | PA66 / LCP | |||||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||
| OPERATE VOLTAGE | DC12V & 5V | |||||
| WARRANTY | 3 years | |||||
