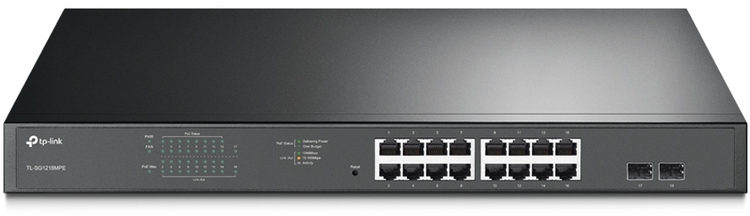

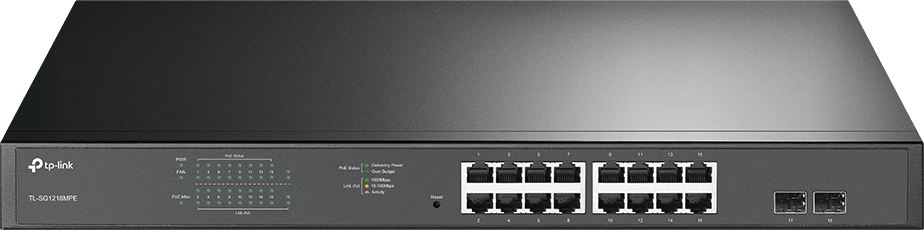

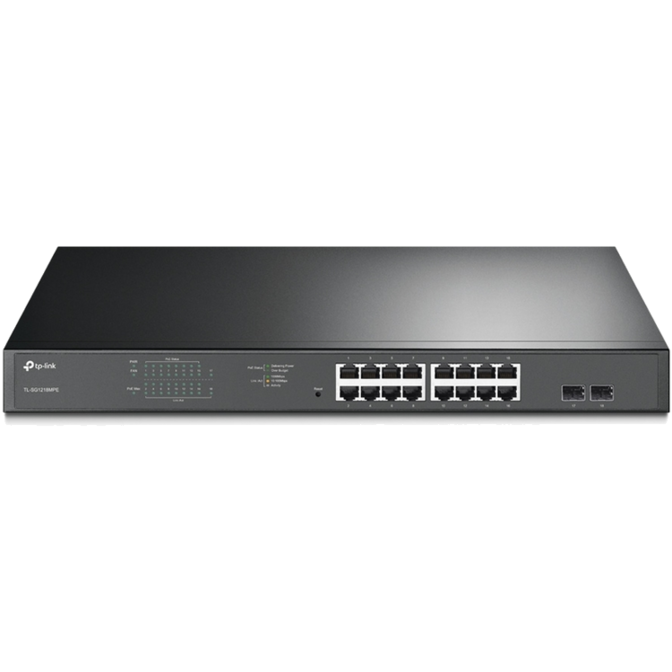

Multi-purpose PoE Switch with Powerful Performance
JetStreamTL-SG1218MPE
Web ID: 26476
16 x 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch. PoE power budget is up to 192W, making it ideal for small to medium business surveillance system. Port Priority is able to guarantee the quality of sensitive application like video monitor. Intelligent power management can protect the switch from overload.
Manufacturer Warranty: 3 Year
Manufacturer PN: TL-SG1218MPE
GTIN: 6935364086923
Manufacturer Website
JetStreamTL-SG1218MPE
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface | 16 PoE+ 10/100/1000Mbps RJ45 Ports 2 Fiber Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |

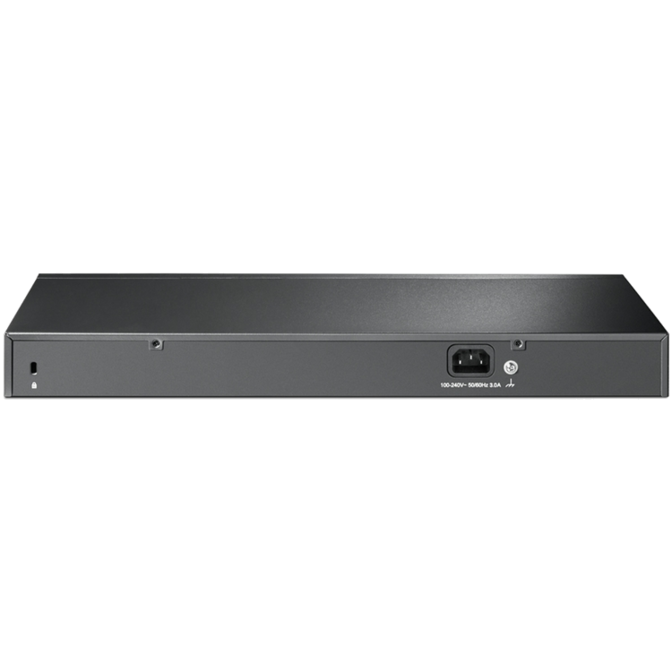

Power Supply | 100-240V AC, 50/60 Hz |
Backup Bandwidth | 7.2 Gbps |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W |
Mac Address Table | 8K |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected) |
Max Heat Dissipation | 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 36 Gbps |
Packet Forwarding Rate | 23.8 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Management | Web-based GUI Easy Smart Configuration Utility |
Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Port Priority Mode Extend Mode (Up to 250m PoE power supply and data transmission) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
Transmission Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
