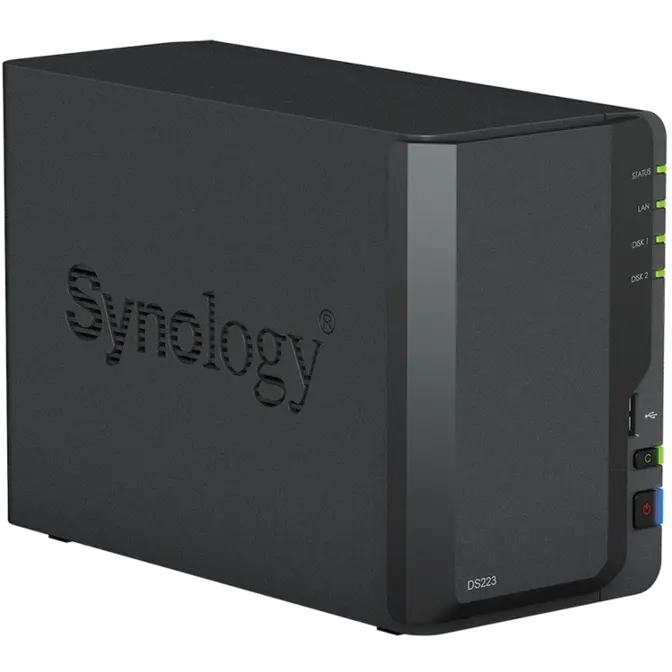

2 Bay Synology DiskStation DS223 Gigabit NAS Unit

2 Bay Synology DiskStation DS223 Gigabit NAS Unit

Web ID: 35768

Get your data under control. Consolidate files from various sources into your own private cloud. The DS223 keeps the process simple and offers everything you need to keep your data safe and organized.
Manufacturer Warranty: 2 Year
Manufacturer PN: DS223
GTIN: 846504004775
Manufacturer Website

$419

Add to cart

In Stock

Compare

Wish List

Question

2 bay synology diskstation ds223 gigabit nas unit

CPU	CPU Model	Realtek RTD1619B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 1.7 GHz
	Hardware Encryption Engine
Memory	System Memory	2 GB DDR4 non-ECC
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage	Drive Bays	2
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

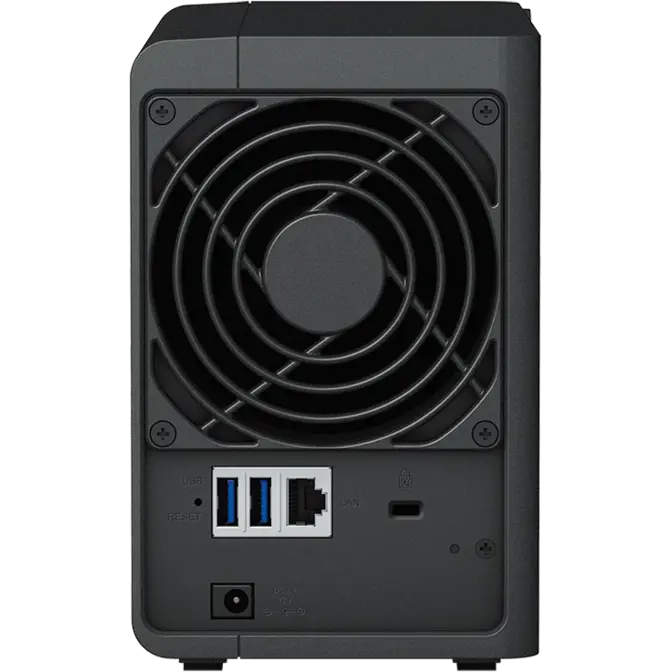

External Ports	RJ-45 1GbE LAN Port*	1
	USB 3.2 Gen 1 Port*	3
	USB / SD Copy
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Size (Height x Width x Depth)	165 mm x 108 mm x 232.7 mm
	Weight	1.28 kg
Others	System Fan	92 mm x 92 mm x 1 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	14.6 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	60 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	17.343 W (Access) 4.08 W (HDD Hibernation)
	British Thermal Unit	59.19 BTU/hr (Access) 13.92 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%.
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty	2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1
Optional Accessories	3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 VisualStation: VS360HD Surveillance Device License Pack
