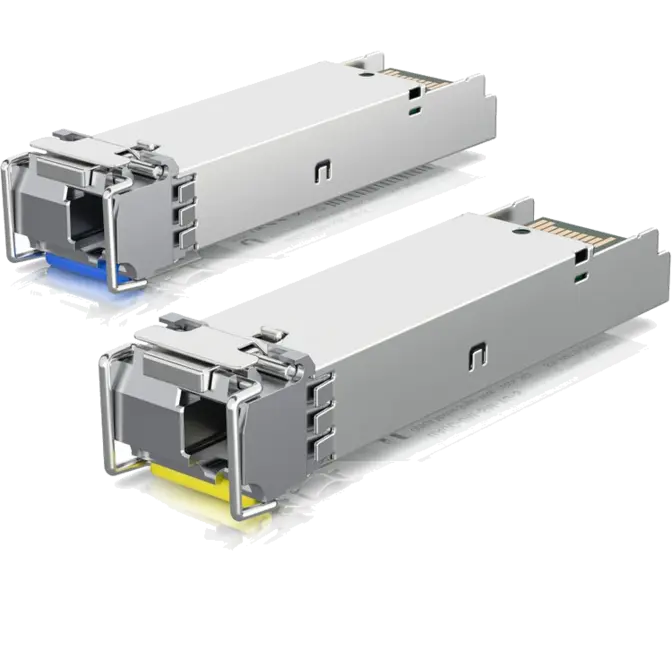

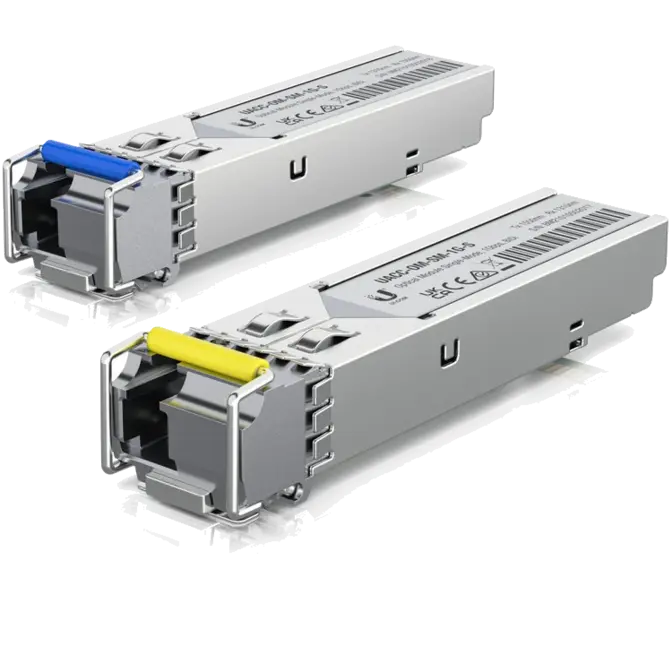

2-Pack Ubiquiti UFiber 1G Bidirectional Single-Mode Optical Module
Web ID: 42946
SFP transceiver that supports 1G connections up to 3 km using single-mode fiber with a simplex LC UPC connector.
- Max data rate: 1 Gbps
- Compatible with SFP interfaces
- Simplex LC UPC connector
- Supports single-mode fiber connections up to 3 km
Manufacturer Warranty: 2 Year
Manufacturer PN: UACC-OM-SM-1G-S
GTIN: 810010076984
Manufacturer Website
$59
| Supported media | Single-mode fiber |
| Connector type | (1) LC |
| BiDi | Yes |
| TX wavelength* | Blue latch: 1310 nm Yellow latch: 1550 nm Must be used in pairs (blue latch and yellow latch). |
| RX wavelength* | Blue latch: 1550 nm Yellow latch: 1310 nm Must be used in pairs (blue latch and yellow latch). |
| Data rate | 1 Gbps |
| Max. power consumption | 0.66W |
| Cable distance | 3 km |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
| Pack options | 2-pack, 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
