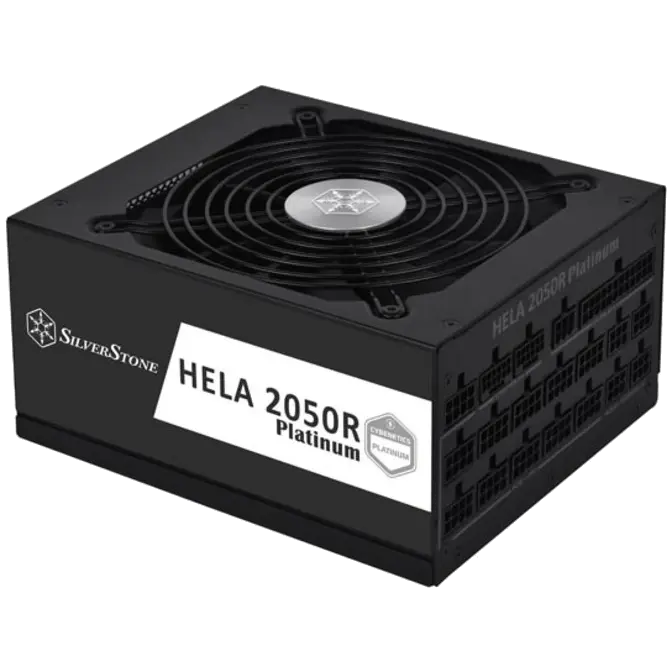

2050 Watt SilverStone Platinum HA2050R-PM Gen5 Modular Power Supply
Web ID: 38440
PLEASE NOTE: Requires 15amp Power Input.
Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
High efficiency with Cybenetics Platinum certification
Built-in MCU semi-fanless mode to achieve optimized cooling performance
2050W continuous power output rated for 24/7 operation
Fully modular design with SilverStones 3rd generation modular interface
2 x native 12VHPWR connector on modular interface with 3 x 12VHPWR cable included
Silent running 135mm dual-ball bearing fan with advanced semi-fanless operation
Manufacturer Warranty: 5 Year
Manufacturer PN: SST-HA2050R-PM
Manufacturer Website
Product No.
SST-HA2050R-PM
Model (safety certification)
SST-AX2050MCPT-C
Color
Black (lead-free paint)
Max. DC Output
2050W
Power density
882W/L
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 25A | 22A | 170A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 60mV | 30mV | 60mV |
Combined +3.3V & +5V
120W
Combined +12V
2040W
Input Voltage
2050W: 200~240 Vrms
1650W: 103 ~ 264 Vrms
1350W: 90~264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.95 at full load)
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection

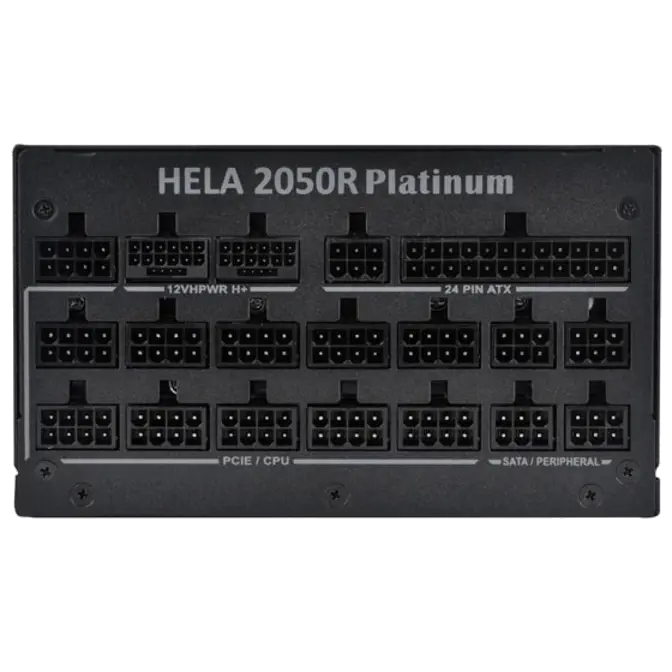

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
14 x 8 / 6-Pin PCIe connectors
3 x 12+4-Pin 12VHPWR connector
12 x SATA connector
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
135mm dual-ball bearing fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D)
Weight
4.34 kg
Other
Switch on rear side to activate / de-activate semi-fanless mode
