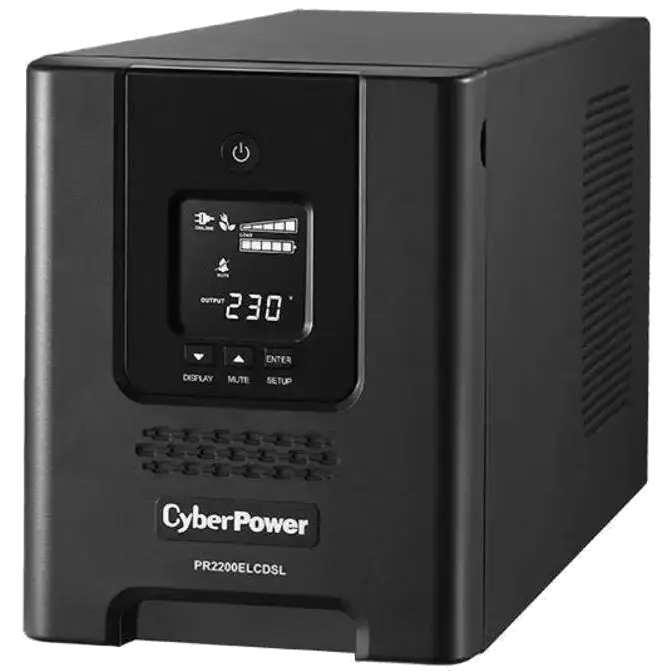

2200VA CyberPower Pro Tower UPS with LCD PN PR2200ELCDSL
Web ID: 22773
CyberPower PR2200ELCDSL Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. Its typically integrated in the back office, server room, and data center environment.
Manufacturer Warranty: 3 Year
Manufacturer PN: PR2200ELCDSL
GTIN: 4712856279801
Manufacturer Website
CyberPower PR2200ELCDSL Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software. The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible.
FEATURES
- Line-interactive UPS Topology
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Automatic Voltage Regulation (AVR)
- Overload Protection
- Hot-swappable Batteries
- Surge and Spike Protection
- EMI and RFI Filtration
- LCD Status Display
- USB Connectivity Port
- Serial Connectivity Port
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/ HTTP Remote Management Capability
- Tower Form Factor
TYPICAL APPLICATION
- PCs & Workstations
- Computers & Laptops
- Printers & Office Devices
- SOHO Networking Devices
- Phone/Fax/Modem
- Telecom & Network Equipment
- Video/Audio Equipment
- Industrial Equipment
- Mission-Critical Equipment
- Cable & Satellite
- Back Office
- Server Room
- Data Center
FEATURE FOCUS
Emergency Power Off
The emergency power off is used to immediately power down the UPS in order to terminate its output power in case of a disaster, for example during a building fire. Multiple UPS systems can be connected to a single access point, and by manually activating it can immediately shutdown all the UPS systems to ensure rescue personnel safety.
High Output Power Factor (0.9)
While electrical loads tends to demand more power than they consume, the Power factor (PF) is a standard method to measure how effectively the electrical power is being used. An UPS that offers higher power factor indicates within the same amount of power demanded, the more power is really utilized within the UPS system.
GENERAL
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
Energy Star Qualified
| Yes |
Active PFC Compatibility
| Yes |
INPUT
Nominal Input Voltage (Vac)
| 230 |
Input Voltage Range (Vac)
| 151 ~ 296 |
Input Frequency (Hz)
| 50 ± 3 |
| 60 ± 3 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current (A)
| 10 |
Input Connector Type
| IEC C14 |
Detachable Power Cord Plug Type
| AU | |
| IEC C14 |
Power Cord Length (ft.)
| 10 |
| 6 |
Power Cord Length (m.)
| 3.05 |
| 1.83 |
OUTPUT
Capacity (VA)
| 2200 |
Capacity (Watts)
| 1980 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) (Vac)
| 230 ± 10% |
On Battery Frequency (Hz)
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Double Boost, Single Buck |
Overload Protection
| Internal Current Limiting , Circuit Breaker |
Outlet(s) - Total
| 8 |
Outlet Type
| IEC C13 x 8 |
Outlet(s) - Battery & Surge Protected
| 8 |
Typical Transfer Time (ms)
| 4 |
BATTERY
Runtime at Half Load (min)
| 12 |
Runtime at Full Load (min)
| 3 |
Typical Recharge Time (Hours)
| 8 |
Start On Battery
| Yes |
User-replaceable
| Yes |
Hot-swappable
| Yes |
Battery Type
| Sealed Lead-acid |
Replacement Battery Pack
| RBP0116 |
RBP Quantity (pcs)
| 1 |
SURGE PROTECTION & FILTERING
Surge Suppression (Joules)
| 405 |
EMI/RFI Filtration
| Yes |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Information Display
| Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
LCD Setting & Control
| Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Event & Log |
LED Indicators
| Power On |
HID Compliant USB Port(s)
| 1 |
Serial Port
| Combo (RS232 + Dry Contact) |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode , Low Battery , Overload , UPS Fault |
Power Management Software
| PowerPanel® Business Edition |
SNMP / HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL
Form Factor
| Tower |
Enclosure Construction
| Metal |
Color
| Black |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 6.69 x 8.70 x 17.00 |
Dimensions (WxHxD) (mm.)
| 170 x 221 x 432 |
Weight (lbs.)
| 56.2 |
Weight (kg.)
| 25.5 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 12.44 x 14.17 x 22.80 |
Dimensions (WxHxD) (mm.)
| 316 x 360 x 579 |
Weight (lbs.)
| 58.82 |
Weight (kg.)
| 26.68 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) (%)
| 0 ~ 95 |
Operating Elevation (feet/meters)
| 0-10,000 feet (0-3,000 meters) |
Storage Temperature (°F)
| 5 ~ 113 |
Storage Temperature (°C)
| -15 ~ 45 |
Storage Relative Humidity (Non-condensing) (%)
| 0 ~ 95 |
Storage Elevation (feet/meters)
| 0-50,000 feet (0-15,000 meters) |
Online Thermal Dissipation (BTU/hr)
| 155 |
CERTIFICATIONS
Certifications
| CE , RCM |
RoHS
| Yes |
WARRANTY
Product Warranty Period (Year)3
Battery Warranty Period (Year)2
