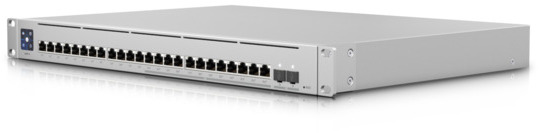

24 Port Ubiquiti USW-Enterprise-24-PoE L3 Switch
Web ID: 32810
The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Manufacturer Warranty: 2 Year
Manufacturer PN: USW-Enterprise-24-PoE
GTIN: 810010073044
$1499
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | Without Mount: 5.11 kg (11.27 lb) With Mount: 5.2 kg (11.46 lb) |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max. Power Consumption | 550W |
| Power Method | (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 550W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10G SFP+ |
| PoE Interfaces | (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | White: Link or Activity |
| SFP+ | White: Link or Activity |
