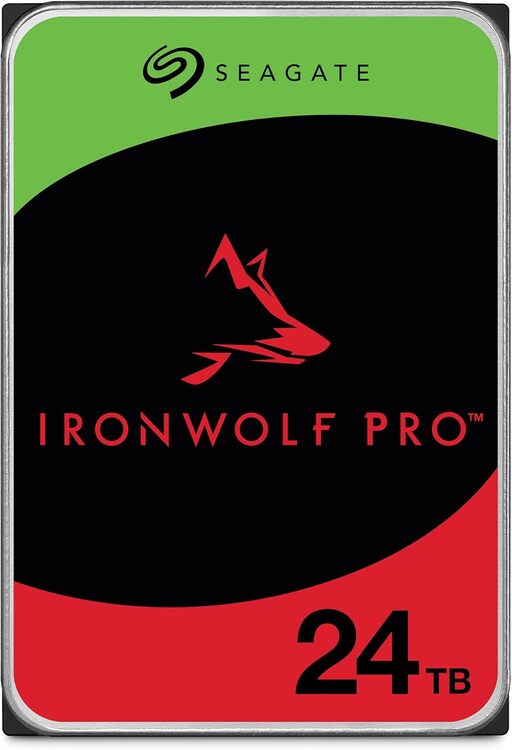

24TB Seagate 3.5" 7200rpm SATA Ironwolf Pro NAS HDD ST24000NT002
Web ID: 43319
IronWolf Pro is designed for commercial and enterprise NAS. Delivering Tough, Ready and Scalable 24x7 performance in multi-bay, multi-user environments.
Manufacturer Warranty: 5 Year
Manufacturer PN: ST24000NT002
GTIN: 763649182253
Manufacturer Website
$1099
Key Advantages |
| Optimised for NAS with AgileArray AgileArray enables Dual-Plane Balancing and Time-Limited Error Recovery to deliver best-in-class RAID performance in multi-bay systems. |
| Always On, Always Accessible IronWolf Pro drives are designed for 24x7 usage, allowing users to access their data any time, anywhere. |
| All-CMR Portfolio All IronWolf Pro drives utilise conventional magnetic recording (CMR) technology for consistent, best-in-class NAS performance. |
| Up to 24 TB Broad range of capacity options to deliver scalable and cost-efficient storage solutions. |
| Built Tough IronWolf Pro drives are rated for 550 TB/yr workload, allowing commercial and enterprise NAS users to seamlessly store, share and collaborate on large amounts of networked data. |
| Class-Leading Reliability and Dependability IronWolf Pro drives are rated for 2.5M hours MTBF and include a 5-year limited warranty for hassle-free data storage and best-in- class total cost of ownership (TCO). |
| Rotational Vibration (RV) sensors. Built-in RV sensors for vibration tolerance and consistent performance in multi-bay systems. |
| IronWolf Health Management (IHM) Actively protect your NAS data with Prevention, Intervention, and Recovery recommendations to ensure peak system health. |
| Peace of mind with Data Recovery IronWolf Pro drives include 3 years of complimentary Rescue Data Recovery Services - in-house secure facilities, with an industry-leading recovery rate of 95% - so you do not have to incur high recovery costs in the event of accidental data corruption or drive damage. |
| Specifications | 24 TB |
| Standard Model Number | ST24000NT002 |
| Interface | SATA 6Gb/s |
| Features | |
| Drive Bays Supported | Unlimited |
| Recording Technology | CMR |
| Drive Design (Air or Helium) | Helium |
| Workload Rate Limit (WRL) | 550 |
| Rotational Vibration (RV) Sensors | Yes |
| Cache (MB) | 512 MB |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2500000 hr |
| Non-recoverable Read Errors per Bits Read, Max | 1 per 10E15 |
| Power-On Hours (per year) | 8,760 |
| Sector Size (Bytes per Logical Sector) | 512E |
| Rescue Data Recovery Services (years)3 | 3 |
| Limited Warranty (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (MB/s) | 285 |
| Rotational Vibration @ 10-1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Startup Current, Typical (12V, A) | 2.0 A |
| Idle Power, Average (W) | 6.3 W |
| Average Operating Power (W) | 7.8 W |
| Standby Mode, Typical (W) | 1.1 W |
| Sleep Mode, Typical (W) | 1.1 W |
| Power Supply Requirements | +12 V and +5 V |
| Environmental/Temperature | |
| Operating Temperature (ambient, min °C) | 5°C |
| Operating Temperature (drive reported, max °C)4 | 65°C |
| Non-operating Temperature (ambient, min °C) | -40°C |
| Non-operating Temperature (ambient, max °C) | 70°C |
| Environmental/Acoustics | |
| Vibration, Non-operating: 10 Hz to 500 Hz (Grms) | 2.27 |
| Acoustics, Idle (typical, measured in Idle 1 state) (dBA) | 20 |
| Acoustics, Seek (typical) (dBA) | 26 |
| Environmental/Shock | |
| Shock, Operating 2 ms (Read/Write) (Gs) | 40/40 Gs |
| Shock, Non-operating, 1 ms and 2 ms (Gs) | 200 |
| Physical | |
| Height (mm/in) | 26.11 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 685 g/1.512 lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet / Cartons per Layer | 40/8 |
