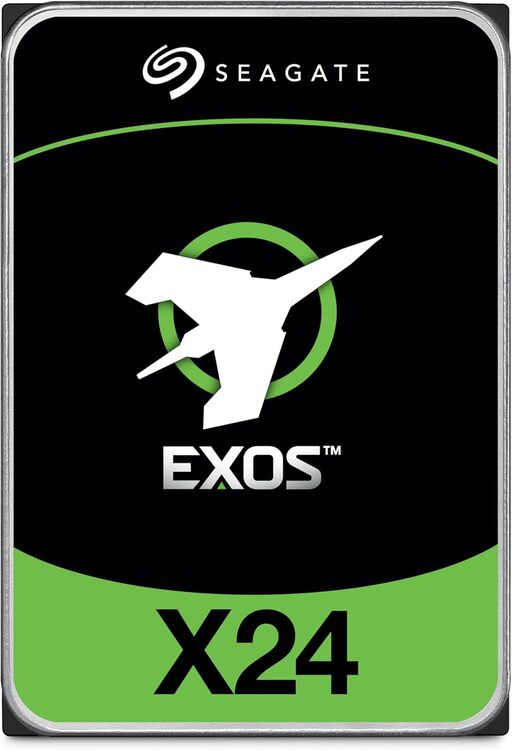

24TB Seagate EXOS 3.5" SATA 7200rpm Hard Drive ST24000NM002H
Web ID: 43318
Powerful performance with proven technology Seagates Exos X24 drives are built off the platform thats shipped millions globally and deployed in leading cloud service provider solutions making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Manufacturer Warranty: 5 Year
Manufacturer PN: ST24000NM002H
GTIN: 763649174883
Manufacturer Website
$1099
Maximum Storage Capacity for Highest Rack Space Efficiency |
| Market-leading 24 TB HDD offering the highest capacity available for more petabytes per rack |
| Highly reliable performance with enhanced caching — making it the logical choice for cloud data centre and massive scale-out data centre applications |
| Hyperscale SATA model tuned for large data transfers and low latency |
| PowerBalance feature optimises watts per TB |
| Maximise total cost of ownership savings through lower power and weight with helium- sealed drive design |
| Proven helium side-sealing weld technology for added handling, robustness and leak protection |
| Digital environmental sensors to monitor internal drive conditions for optimal operation and performance |
| Data protection and security — featuring Seagate Instant Secure for safe, affordable, fast, and easy drive retirement |
| Proven enterprise-class reliability backed by a 5-year limited warranty and 2.5M-hr MTBF rating |
| Capacity | 24 TB |
| Standard Model - Seagate Instant Secure Erase (ISE) 1 | ST24000NM002H |
| SED Model2 | ST24000NM001H |
| SED-FIPS2 | — |
| FEATURES | |
| Helium Sealed-Drive Design | Yes |
| Conventional Magnetic Recording (CMR) | Yes |
| SuperParity | Yes |
| PowerChoice™ Idle Power Technology | Yes |
| PowerBalance™ Power/Performance Technology | Yes |
| Hot-Plug Support3 | Yes |
| Cache, Multi-segmented (MB) | 512 |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| RELIABILITY/DATA INTEGRITY | |
| Mean Time Between Failures (MTBF, hours) | 2500000 hr |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read | <1 in 10E15 |
| Power-On Hours per Year (24×7) | 8,760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4,096 |
| Limited Warranty (years) | 5 |
| PERFORMANCE | |
| Spindle Speed (RPM) | 7200 RPM |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 285/272 |
| Random Read/Write 4K QD16 WCD (IOPS) | 168/550 |
| Interface Ports | Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec²) | 12.5 |
| POWER | |
| Idle A (W) Average | 6.3 |
| Max Operating, Random Read/Write 4K/16Q (W) | 8.9, 7.1 |
| Power Supply Requirements | +12 V and +5 V |
| ENVIRONMENTAL | |
| Temperature, Operating (°C) (Ambient/Drive Reported) | 5 / 60 |
| Vibration, Non-operating: 2 to 500 Hz (Grms) | 2.27 |
| Shock, Operating 2 ms (Read/Write) (Gs) | 40 Gs |
| Shock, Non-operating 2 ms (GS) | 200 |
| PHYSICAL | |
| Height (mm/in, max) 4 | 26.1 mm/1.028 in |
| Width (mm/in, max)4 | 101.85 mm/4.010 in |
| Depth (mm/in, max) 4 | 147 mm/5.787 in |
| Weight (gm/lb) | 685 g/1.51 lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet / Cartons per Layer | 40/8 |
