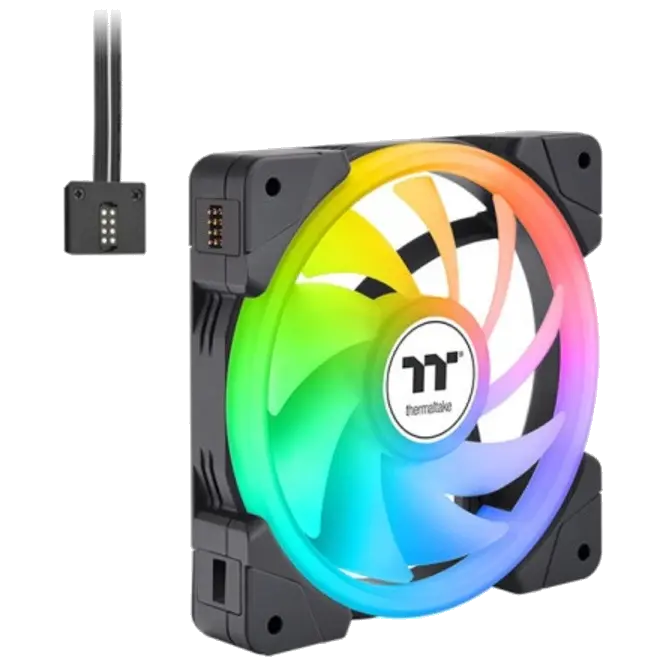

3 x 140mm Thermaltake SWAFAN EX14 ARGB CL-F168-PL14SW-A Magnetic Quick Connect PWM Black Fan
Web ID: 36907
Swappable fan blades with magnetic force quick connection. Connecting up to 3 fans together with only 1 cable required, providing you quicker and more efficient building. (3-Fan Pack) ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: CL-F168-PL14SW-A
GTIN: 841163089378
Manufacturer Website

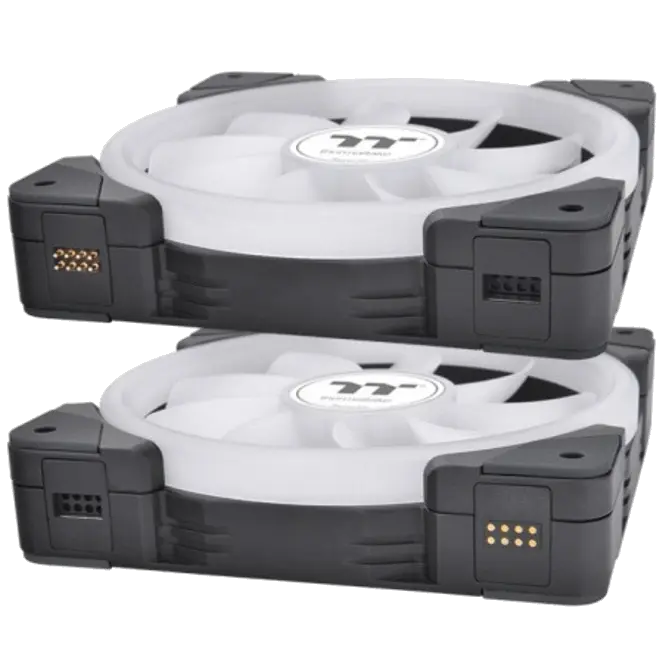

Quick Connect with Magnetic Force Design
The SWAFAN EX’s ARGB magnetic force design allows you to achieve super quick connection via your motherboards 5V addressable RGB header. By simply placing the fans side by side, the magnetic connectors instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them together.
Caution: Due to safety and motherboard software signal limitations, SWAFAN EX ARGB is only recommended to daisy-chain maximum 5 fans per cable.
Say Goodbye to Excessive Cables
Eliminate cable usage and stray away from excessive cable management with the SWAFAN EX’s Magnetic Force Quick Connect Design fan!
The Ultimate Cooling Performance
The SWAFAN EX’s ARGB blade design guarantees optimal cooling performance under different conditions. Whether you’re installing fans on thick radiators or air coolers, or even a chassis with multiple filters, the SWAFAN EX is equipped to provide you with the best cooling possible!
Keep'em clean!
Pop and insert, it is that easy.
No more excuses to not clean your fans when they are this easy to do! Simply pop the blades out for an easy clean. You can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the included bearing lubricant before popping them back in.

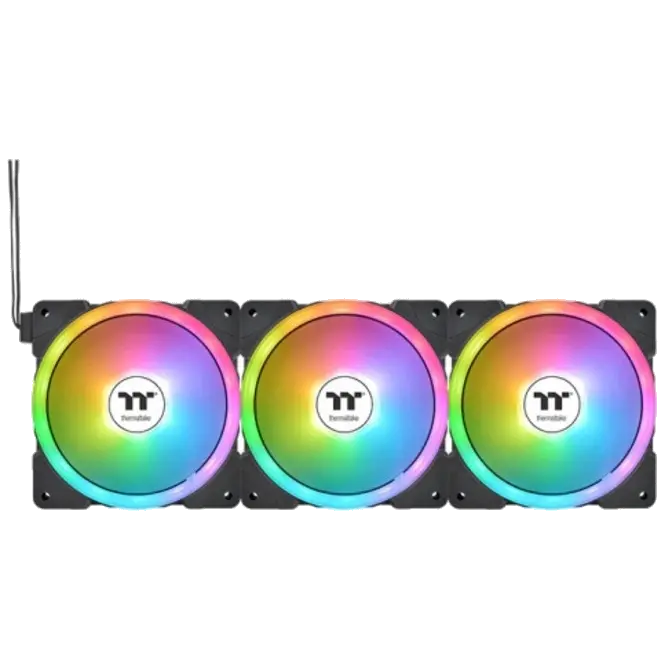

Unlock the Full Potential of ARGB
No more sacrificing aesthetics for your airflow direction; SWAFAN EX can now do both!
Easily Show off Your RGB Lighting, whether you're running your fans as intake or exhaust!
The SWAFAN EX’s ARGB feature two independent LED rings with 20 LEDs allow you to create striking lighting patterns with 5V motherboard sync lighting software.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
| P/N | CL-F168-PL14SW-A |
|---|---|
| FAN DIMENSION | 140 x 140 x 25 mm |
| INTERFACE | 2510-4 PIN PWM, 5V ARGB header-3PIN |
| FAN STARTED VOLTAGE | 9.0 V |
| FAN RATED VOLTAGE | 12 V & 5V |
| RATED CURRENT | 12 V - 0.32 A , 5 V – 0.72 A (one fan) |
| POWER INPUT | 12 V – 3.84 W , 5 V – 3.6 W (one fan) |
| FAN SPEED | PWM 500 ~ 2000 R.P.M |
| MAX. AIR PRESSURE | Standard Fan Blade : 3.17 mm-H2O (one fan) Reverse Fan Blade : 2.73 mm-H2O (one fan) |
| MAX AIR FLOW | Standard Fan Blade : 81.6 CFM (one fan) Reverse Fan Blade : 79.3 CFM (one fan) |
| NOISE | Standard Fan Blade : 34.5 dB-A (one fan) Reverse Fan Blade : 38.8 dB-A (one fan) |
| BEARING TYPE | Hydraulic Bearing |
| LIFE EXPECTATION | 40,000 hrs,25? |
| INCLUDED LTEMS | Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
