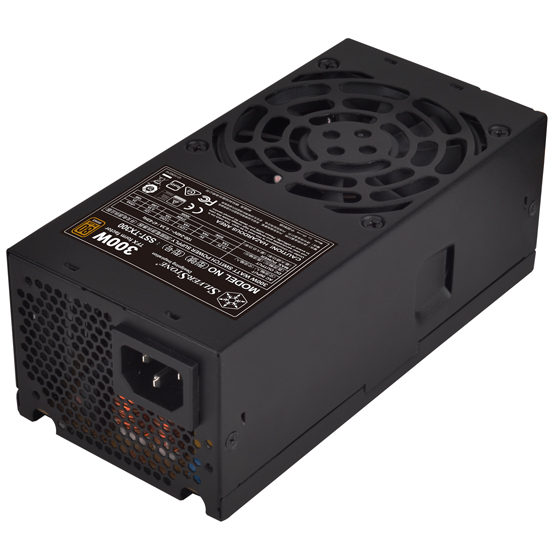

300 Watt Silverstone SST-TX300 TFX Power Supply 80 PLUS Bronze

Web ID: 26372

300W,TFX form factor, dual +12V rails with 23A output, Silent 80mmFan with 18~36dBA, efficiency 80Plus Bronze certification, fixed cable, 4x8/6pin PCI-E
Manufacturer Warranty: 3 Year
Manufacturer PN: SST-TX300
GTIN: 844761014575

silverstone sst-tx300 300w tfx power supply 80 plus bronze

? Support standard TFX form factor

? 300W continuous power output at 40?XC operating temperature rated for 24/7 operation

? High efficiency with 80 PLUS Bronze certification

? Silent running 80mm fan with 18 dBA minimum

? Single PCI-E 6pin connectors support

? Active PFC

silverstone sst-tx300 300w tfx power supply 80 plus bronze   silverstone sst-tx300 300w tfx power supply 80 plus bronze

As a leading brand in small form factor (SFF) case design and power supply miniaturization, SilverStone launched its first TFX power supply, the TX300, to further widen the scope of SFF design possibilities. It has features that enthusiasts demand such as all black exterior coating, sleeved cables, silent running 80mm fan, and support for PCI-E 6pin connector. In addition to 80 PLUS Bronze level efficiency, the TX300 features 24/7 40?J continuous 300W output capability to provide reliable and high-performing system operation.



Remark


Model No.
SST-TX300
Max. DC Output
300W
Power density
310W per liter
Load Range
?
+3.3V +5V +12V1 +12V2 +5VSB -12V
Max.(Amps)
15A 16A 14A 15A 2.0A 0.3A
Peak (Amps)
/ / / / / /
Min.(Amps)
0.3A 0.5A 0.5A 0.5A 0A 0A
Range (%)
??5% ??5% ??5% / ??10% ??10%
Line Reg.(%)
??1% ??1% ??1% / ??1% ??1%
Ripple(mVp-p)
50mV 50mV 120mV / 50mV 120mV
Color
Black?]Lead-Free Paint?^
Combined +3.3V & +5V
95W
Combined +12V
276W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0?XC ~ 40?XC
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Connectors
1 x 24 / 20-Pin motherboard connector (350mm)?
1 x 8 / 4-Pin EPS / ATX 12V connector (450mm)?
1 x 6-Pin PCIE connector (350mm)?
4 x SATA connector ("350mm / 150mm" x 2)?
2 x 4-Pin Peripheral connector (350mm / 150mm)?
1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm)
Cooling System
Single 80mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
85 mm (W) x 65 mm (H) x 175 mm (D)
3.35" (W) x 2.56" (H) x 6.89" (D)
Weight
1 kg
Certification
80 PLUS Bronze
Other
GPU Support list?
Compatible with ATX12V v2.4
?? Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
