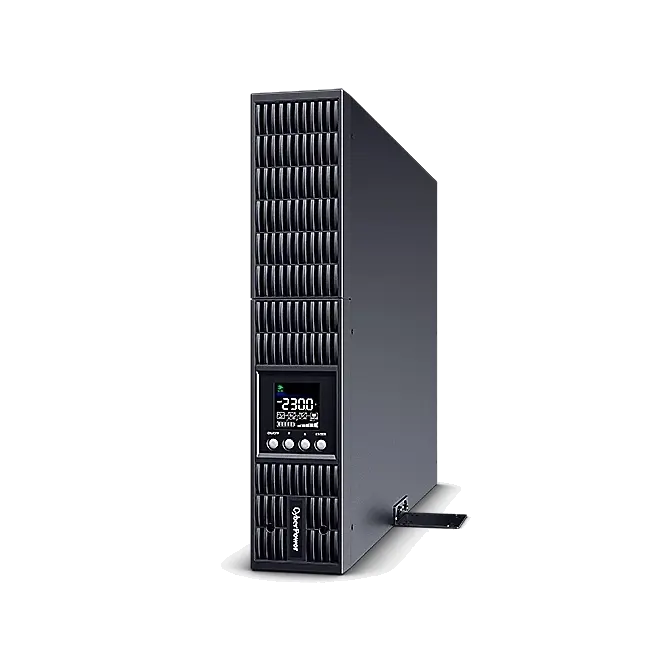

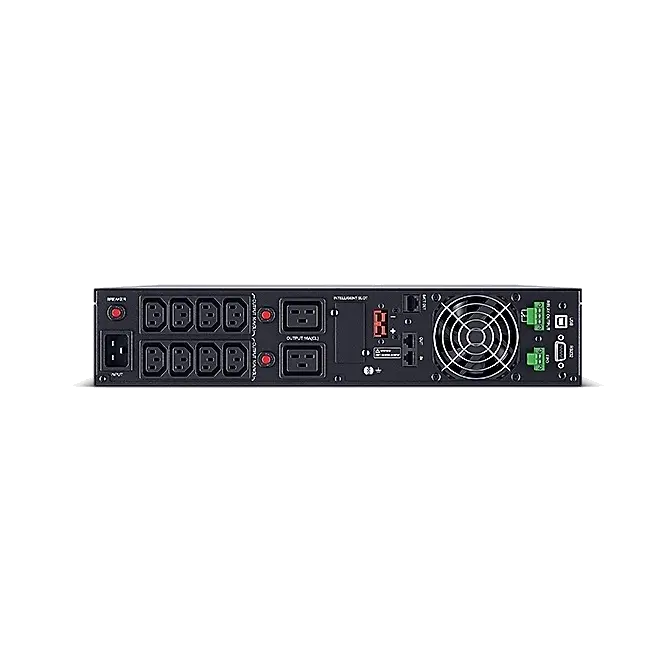

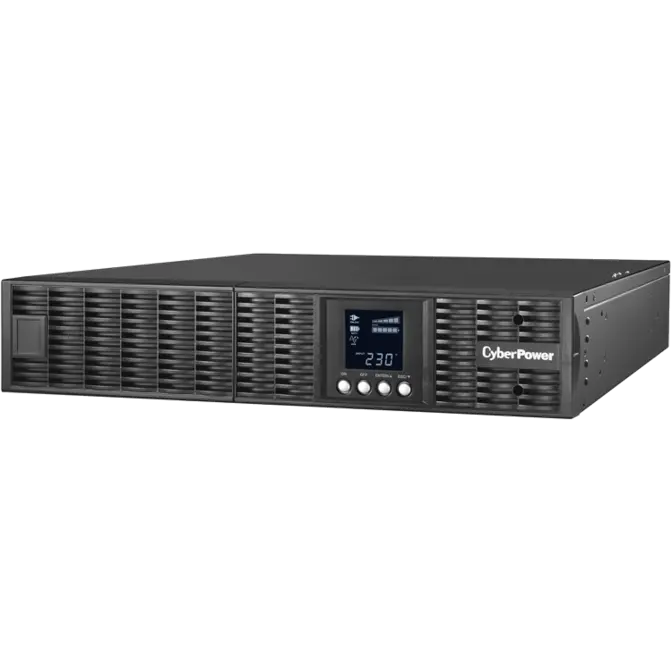

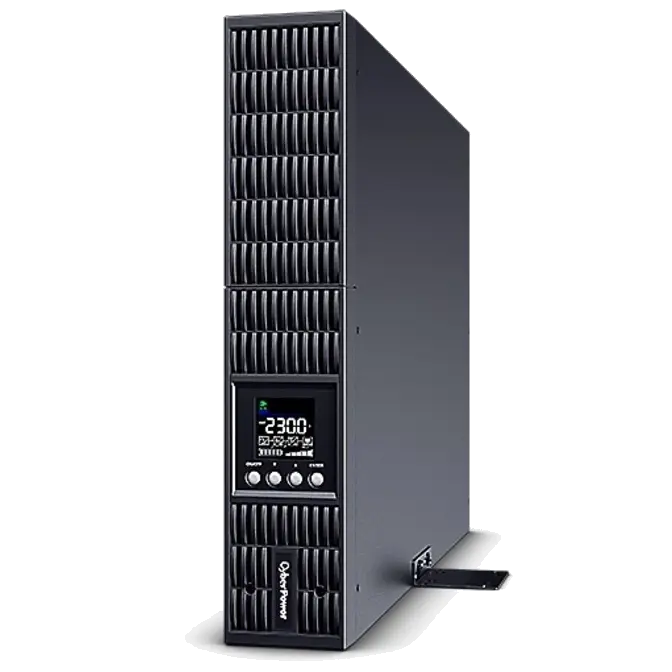

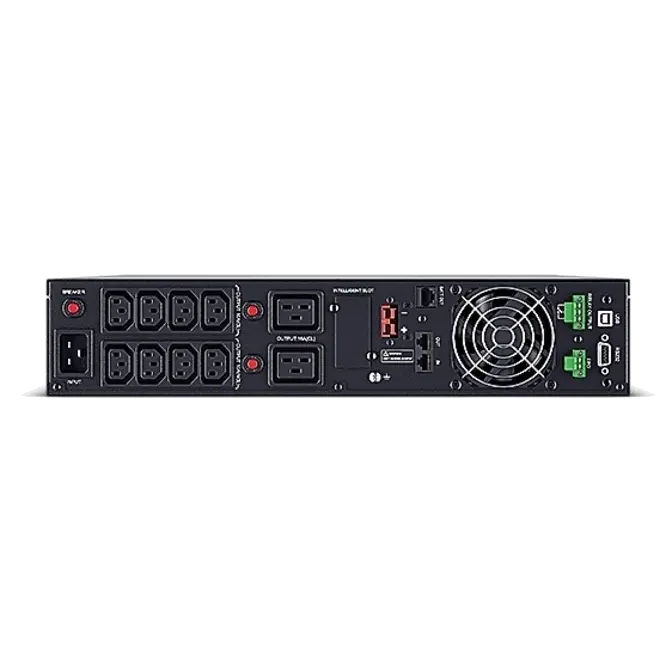

3000VA CyberPower OLS3000ERT2Ua Online Smart App Rackmount UPS
Web ID: 27421
CyberPower OLS3000ERT2Ua is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. Its typically integrated in the back office, server room, and data center environment. Requires 15 Amp wall socket
Manufacturer Warranty: 2 Year
Manufacturer PN: OLS3000ERT2Ua
GTIN: 4712856273823
Manufacturer Website
Online Double-conversion Topology
The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power all the time. This topology features a zero transfer time, supporting system operation with no downtime.
Online ECO Mode
When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.
UPS Parallel Expansion
The UPS parallel expansion capability allows users to customize their power systems by connecting multiple UPS units, therefore reaching even higher capacity and achieving N+X power redundancy to protect the systems against power failures.
Multifunction LCD Readout
The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.
Maintenance Bypass Switch
The operators can use the switch to seamlessly transfer to utility power via bypass mode, performing quick and safe maintenance without having to shut down power system and connected equipment.
Generator Compatible
Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, the UPS can stabilize generator's unstable voltages, providing reliable power.
Extended Battery Module (EBM)
The UPS can connect to extended battery modules (EBM) to prolong system runtime during power interruption. The EBM comes with plug-n-play DC connectors and supports EBM expansion, ensuring system's maximum power availability.
Emergency Power Off
The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.
Remote Management Capability
Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks such as scheduled shutdowns and reboots.
PowerPanel® Business Software
The PowerPanel® Management Software can perform large-scale power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V.
General
| Single Phase |
| Online Double Conversion |
| Online ECO Mode Efficiency > 95% |
| Yes |
Input
| Yes |
| 230 ± 10% |
| 190 ~ 300 |
| 0~50% Load for 110 ~ 300 Vac |
| 0~60% Load for 140 ~ 300 Vac |
| 0~80% Load for 160 ~ 300 Vac |
| 0~100% Load for 190 ~ 300 Vac |
| 50 ± 10 |
| 60 ± 10 |
| Auto-sensing |
| 13 |
| 0.98 |
| IEC C20 |
| Straight |
| AU x 1 |
| 5.9 |
| 1.8 |
Output
| 3000 |
| 2700 |
| Pure Sine Wave |
| 208 ± 1% |
| 220 ± 1% |
| 230 ± 1% |
| 240 ± 1% |
| Configurable |
| 50 ± 0.5% |
| 60 ± 0.5% |
| Configurable |
| 0.9 |
| ± 15 % |
| Internal Current Limiting, Circuit Breaker, Fuse |
| 110~120% Load for 1 min, >120% Load Immediately |
| 110~120% Load for 10 sec, >120% Load Immediately |
| >130% Load Immediately |
| 3 : 1 |
| THD<3% |
| THD<5% |
| Automatic Bypass, Manual Bypass |
| 9 |
| IEC C19 x 1 | |
| IEC C13 x 8 |
| 9 |
| 0 |
Battery
| 14 |
| 4 |
| 5 |
| 1 |
| Yes |
| Yes |
| Yes |
| Yes |
| Sealed Lead-acid |
| RBP0070 |
| 1 |
| 6 |
| 72 |
| 12 V 9 AH |
| BPSE72V45ART2U |
| 3 |
Surge Protection & Filtering
| 440 |
| Yes |
| 1-in, 1-out |
Management & Communications
| Yes |
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
| 1 |
| Yes |
| Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
| Power Cord x2, USB Cable x1, Phone Line x1 |
| PowerPanel® Business (Recommended) |
| Yes - with optional RMCARD205 |
| Mode Setting, Alarm Setting, Input & Output, Battery Setting |
Physical
| Rack/Tower |
| Metal |
| Black |
| Yes |
Physical Size - UPS Module
| 17.24 x 3.46 x 24.2 |
| 438 x 88 x 610 |
| 60.85 |
| 27.6 |
| 2 |
Shipping Dimensions
| 21.65 x 9.09 x 29.37 |
| 550 x 231 x 746 |
| 75.4 |
| 34.2 |
Environmental
| 32 ~ 104 |
| 0 ~ 40 |
| 20 ~ 90 |
| 0-5,000 feet (0-1,500 meters) |
| -4 ~ 122 |
| -20 ~ 50 |
| 10 ~ 90 |
| 0-5,000 feet (0-1,500 meters) |
| 1126 |
| 45 |
Certifications
| CE, EAC, RCM |
| Yes |
WARRANTY
| 2 |
| 2 |
