32" Benq SW321C 4K Adobe RGB IPS LED Monitor
Web ID: 27759
Panel Size: 32"
Panel Type: IPS
Resolution: UHD (3840 x 2160)
Refresh Rate: 60Hz
Response Time: 5ms (MPRT)
Display Inputs: 2 x HDMI || 1 x DisplayPort || 1 x USB-C
Display Technology: Eye Care || Flicker Free
Other: Height Adjust || Shading Hood || Designed for Photo Editing
Manufacturer Warranty: 3 Year
Manufacturer PN: SW321C
GTIN: 4544438015022
Manufacturer Website
Reality
Validity
Creativity
Devoted to meet the latest professional color standard, BenQ has developed AQCOLOR technology to uphold the concept: “Accurate Reproduction". BenQ has invited color experts to lead the team, and also actively participated in ICC (International Color Consortium) and ISO (International Standard Organization) to establish color-related standards and implementation in order to provide consistent and accurate colors.
Photographers work with great demand on color accuracy. BenQ SW321C photographer monitor achieved industry color standard to deliver truer and accurate colors so as to relive the moment.
in Every Detail
Surpassing industry color standards, BenQ has dedicated itself to evolving and developing its technologies to achieve higher level of color accuracy in every detail.
In every production line, BenQ has utilized a well prepared instrument to ensure that monitors from different production lines display color at same precise level. Photographers will perceive consistent color when working on dual monitors.
With the use of Palette Master Element and a calibrator, you can customize the color setting or maintain the color performance of the monitor at its most optimal state.
* Supported Platforms : Win7 or above, Mac OS 10.6.8 or above * Supported Calibrators : X-Rite i1 Display Pro / i1 Pro / i1 Pro 2 / i1 Studio , Datacolor Spyder 4/5, Spyder X, Colormunki Photo
BenQ’s SW321C monitor offers the out-of-the-box color accuracy that guarantees users can enjoy the most trustworthy color performance.
With the certification of CalMAN Verified as well the Pantone Validated, BenQ SW321C is to maintain truthful colors which promise the industry-approved performance all the creative enterprises will love to reproduce.

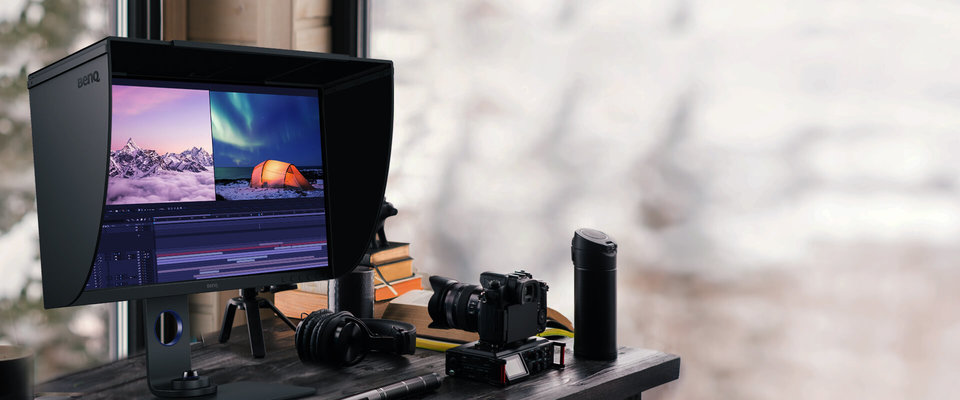

More and more photographers are using digital cameras to capture the moment and to preserve any remarkable episode in life. BenQ SW321C adopts HDR and supports various video formats to replay your vivid times dynamically.
SW321C supports 24P/25P film content to be displayed at native cadence without pulldown which can distort playback of the source video.
SW321C supports the world-leading video calibration software CalMAN and LightSpace and thus gains software access to adjust display’s 3D LUT, guaranteeing image accuracy and consistency at all levels.
A perfect photo is not done in a step but takes a whole process from clicking the button, retouching the work, to getting it printed. BenQ has developed specialized features to facilitate a smooth retouching-to-printing workflow. This streamlined workflow will smooth the retouching process with intuitive designs and simplify the printing process with a simulated preview before printout. You can thus make the moment stay in true colors.

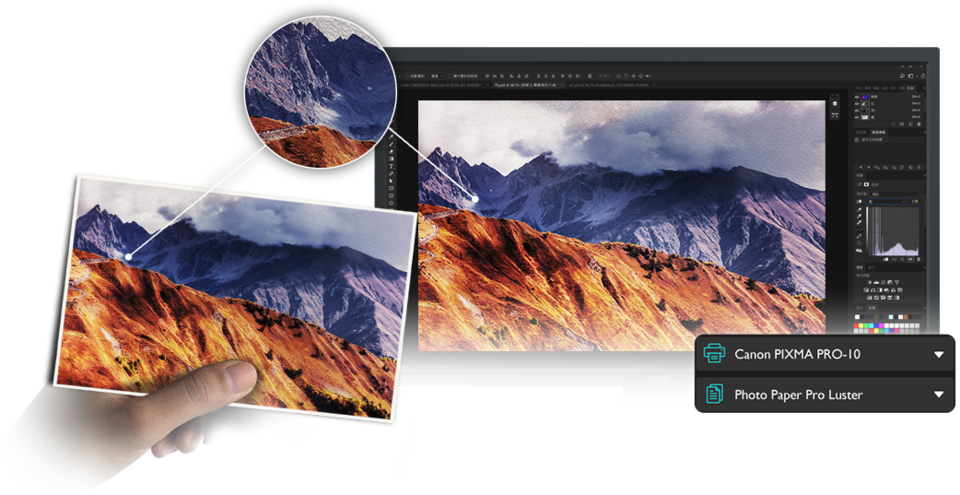

Paper Color Sync
Paper color sync is a BenQ proprietary technology to simulate the printing results. You can edit photos with efficiency and confidence in this time-saving screen-to-print process just by picking the color gamut, printer model and paper type to get a preview. Moreover, SW321C adopts a panel which reduces effectively the reflected light and screen glare, offering a preview that is true to what you’ll see on the paper.

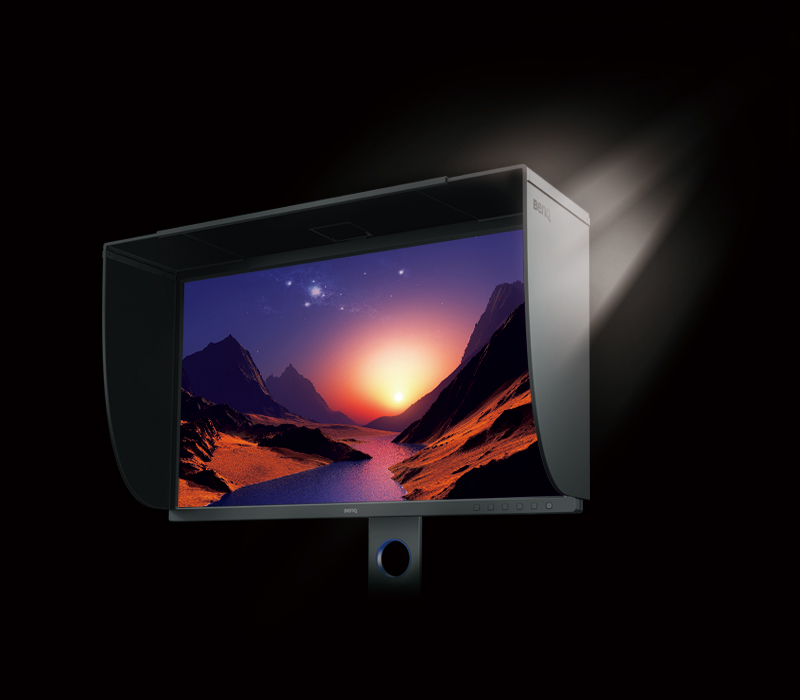

Shading hood
A specially designed detachable shading hood can effectively reduce the monitor’s screen glare from ambient lighting for superb color accuracy.

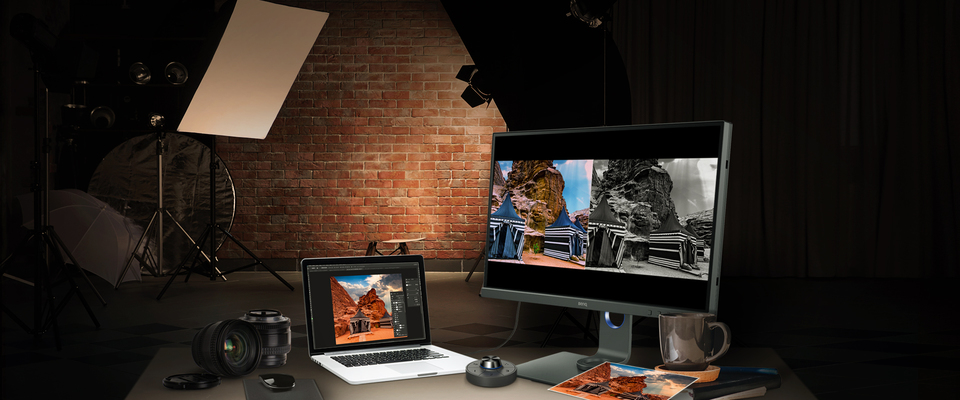

Photographers would be free from repetitive actions for photo retouching and video editing by BenQ’s customizable designs to boost the work efficiency.

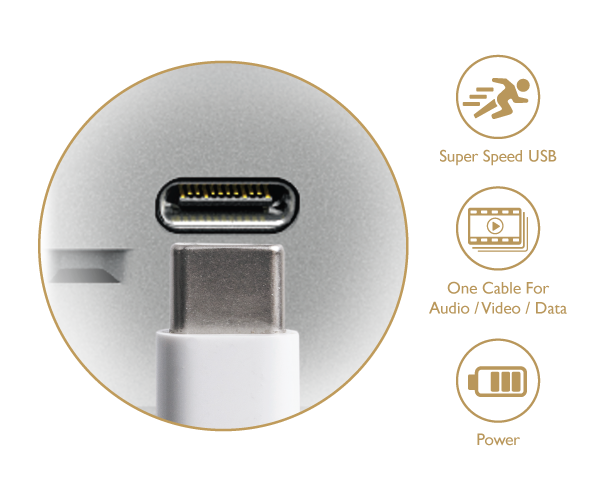

USB-C port
The latest USB-C?? port provides high-speed Video/Audio/Data transmission and power delivery with one single cable.
*The transmission rate of USB-C™ can vary. *USB-C is compatible with Thunderbolt 3. *Please make sure your laptop’s USB-C port supports DisplayPort Alt mode. * Please make sure the purchased cable is certified by USB-IF and is full-featured with power delivery and video / audio / data transfer functions.
Preferred color modes and features are designated as quick access to widely used settings.

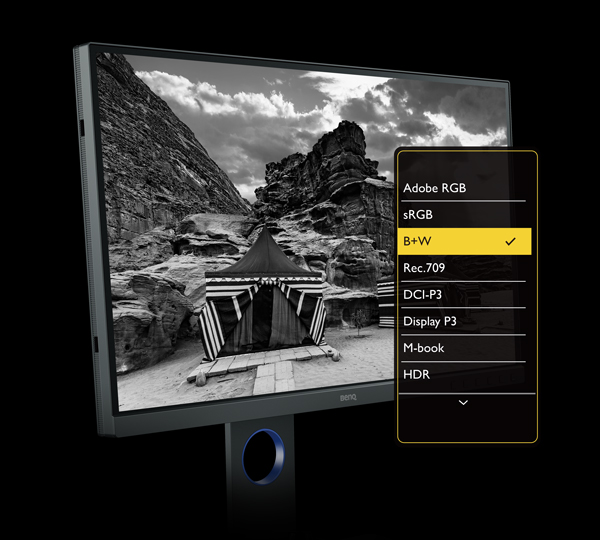

Color photos are displayed in enhanced black and white film effect. Choose from three different black and white presets to preview your photos before actual adjustment.
Photo preview is enabled to present the same image in two color gamut side by side for added comparison.
Main Specifications
Screen Size
32
Resolution (max.)
3840 x 2160
All Specifications
Display
Screen Size
32
Panel Type
IPS
Backligh Technology
LED backlight
Resolution (max.)
3840 x 2160
Brightness
250
Native Contrast(typ.)
1000:1
Viewing Angle (L/R;U/D) (CR>=10)
178 / 178
Response Time
5 ms (GtG)
Refresh Rate
60Hz
Aspect Ratio
16:9
Display Colors
1.07 billion colors
Color Gamut
99% AdobeRGB, 95% P3, 100% sRGB
Display Area(mm)
708.48 x 398.52
Pixel Pitch (mm)
0.1845
PPI
137
DCR (Dynamic Contrast Ratio) (typ.)
20M:1
Color Bit
10bits
Audio
Headphone Jack
Yes
Monitor
Segment
Photographer
Product Color
Gray
Color Mode
Adobe RGB / sRGB / Rec.709 / DCI-P3 / Display P3 / M-book / B+W / HDR / Calibration 1 / Calibration 2 / Calibration 3 / Custom / Paper Color Sync / DICOM
HDR
HDR10 / HLG
Display Mode
Full, Aspect Ratio, 1:1
Color Temperature
5000°K / 6500°K/ 9300°K / Custom / User Defined
Gamma
1.6 - 2.6, sRGB
K Locker
Yes
OSD Language
18 Languages (English / French / German / Italian / Spanish / Polish / Czech / Hungarian / Romanian / Dutch / Russian / Swedish / Protuguese / Japanese / Chinese / S-Chinese / Arabic/ Korean)
PIP/PBP
Yes
HDCP
2.2
VESA Wall Mount
100x100mm
AMA
Yes
Display Screen Coating
Anti-Glare / Anti-Reflection
Professional
3D-LUT
16bits
Delta E
<= 2 ( avg)
Uniformity Technology
Yes
Hardware Calibration
Yes
Video Format Support
Yes
Gamut Duo
Yes
Black & White mode
Yes
Black Level
Yes
Hotkey Puck G2
Yes
Factory Calibration Report
Yes
Connectivity
HDMI
HDMI (v2.0) x 2
DisplayPort
DisplayPort (v1.4)
USB 3.1 Hub
USB Downstream x 2
USB 3.1 Hub
USB Upstream x 1
USB Type-C
Yes (PD60W, DP Alt mode, Data)
Card Reader
SD/MMC type
Support Format: SD/SDHC/SDXC/MMC
Power
Voltage Rating
100~240V
Power Supply
Built-in
Power Consumption (on mode.)
170W
Power Consumption (based on Energy Star)
52W
Power Consumption (stand by mode)
0.5W
Power Consumption (sleep mode)
0.5W
Dimension and Weight
Dimensions (HxWxD mm) (w/o Base) (with shading hood)
453.45 x 759.4 x 257.89
Dimensions(HxWxD mm) (without shading hood)
Landscape: 502.25-652.25 x 747.2 x 223.61
Pivot: 798.6 x 448.15 x 223.61
Dimensions (HxWxD mm) (w/o Base)
448.15 x 747.2 x 77.82
Dimensions (HxWxD mm)
Landscape: 513.65-663.65 x 759.4 x 340.53
Pivot: 811.5 x 460.35 x 340.53
Net Weight (kg) (without shading hood)
11.8
Net Weight (kg) (without stand)
Landscape: 9.1
Pivot: 9.4
Net Weight (kg)
Landscape: 13.2
Pivot: 13.5
Gross Weight (kg)
25.6
Tilt (down/up)
-5°/- 20°
Swivel (left/right)
45/45
Pivot
90°
Height Adjustment (mm)
150mm
Software
Palette Master Element
Yes
Support Calibrator
X-Rite il Display Pro / il Pro /il Pro 2 /il Studio/ ColorMunki Photo, Datacolor Spyder 4/ Spyder 5/ Spyder X
* Note. MacOS 10.15 update:
(a) Spyder 4 / il Display 2 not supported by macOS 10.15
(b) Spyder 5 will be supported macOS 10.15 in future PME software update
Video Signal Data
Hor. Frequency (KHz)
27~140Khz
Ver. Frequency (Hz)
24~76Hz
Video Bandwidth (MHZ)
600M Hz
Included Accessories
Other Accessories
Shading hood, CD, QSG, Factory Calibration Report ,Hotkey Puck G2
Power Cable
Yes(1.8m)
Signal Cable
USB type-C cable(1m), mDP to DP cable (1.8m), HDMI 2.0 cable (1.8m), USB 3.1 cable (Gen 1)(1.8m)
Reliability
MTBF(hr, exclude backlight)
60000
Operating Temperatur
0°C - 40°C
Operating Humidity (non-condensing)
10% - 90%
Backlight Life (hr) Typical
30000
Compatibility
Mac Compatible
Yes
Windows® Compatible
Windows®10, Windows®8.1, Windows®8, Windows®7
Certification
Verified by CalMAN
Yes
Pantone Validated
Yes
