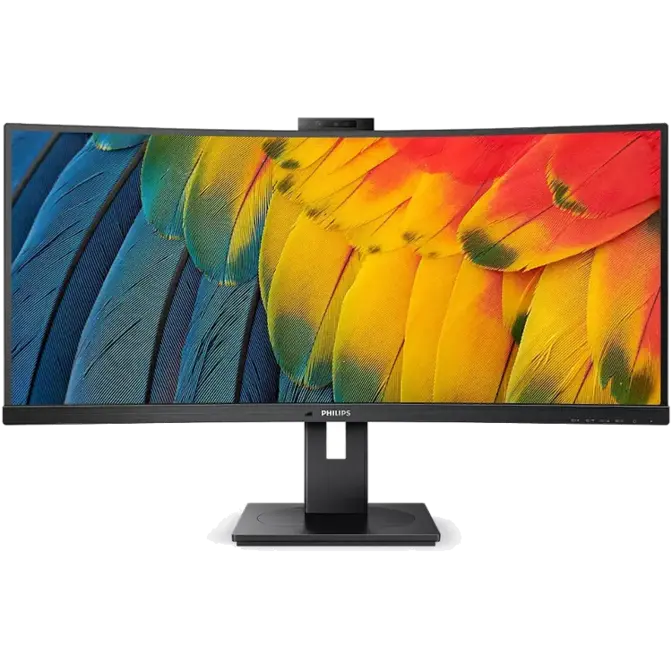

34" Philips 34B1U5600CH Curved WQHD USB-C VA Monitor Web Cam and Speakers

Technical Specifications

• Picture/Display

  LCD panel type

  VA LCD

  Backlight type

  W-LED system

  Panel Size

  34 inch / 86.36 cm

  Display Screen Coating

  Anti-Glare, 3H, Haze 25%

  Effective viewing area

  797.22 (H) x 333.72 (V) - at a 1500R curvature*

  Aspect ratio

  21:9

  Maximum resolution

  HDMI: 3440 x 1440 @ 100 Hz; DP/USB-C: 3440 x 1440 @ 120 Hz

  Pixel Density

  110 PPI

  Response time (typical)

  4 ms (Gray to Gray)*

  Brightness

  350  cd/m²

  Contrast ratio (typical)

  3000:1

  SmartContrast

  50,000,000:1

  Pixel pitch

  0.23175 x 0.23175 mm

  Viewing angle

  • 178º (H) / 178º (V)

  • @ C/R > 10

  Flicker-free

  Yes

  Picture enhancement

  SmartImage

  Display colors

  16.7 M (8 bit)

  Color gamut (typical)

  NTSC 100%*, sRGB 120%*

  Scanning Frequency

  HDMI: 30 - 160 kHz (H) / 48 - 100 Hz (V); DP/USB-C: 30 - 190 kHz (H) / 48 - 120 Hz (V)

  SmartUniformity

  93 ~ 105%

  Delta E

  < 2 (for sRGB)

  LowBlue Mode

  Yes

  EasyRead

  Yes

  sRGB

  Yes

  Adaptive sync

  Yes

• Connectivity

  Signal Input

  HDMI 2.0 x 1, DisplayPort 1.4 x 1, USB-C x 1 (upstream, DP Alt mode, Data, PD up to 100 W)

  HDCP

  HDCP 1.4 (HDMI / DisplayPort / USB-C); HDCP 2.2 (HDMI / DisplayPort / USB-C)

  HBR3

  HBR 3 (DisplayPort / USB-C)

  USB Hub

  USB 3.2, Gen 2 / 10 Gbps, USB-C upstream x 1 (Data), USB-A downstream x 4 (with 1 for fast charge B.C 1.2), USB-C downstream x 1 (Data, PD 15W)

  Audio (In/Out)

  Audio out / Microphone in combo jack

  RJ45

  Ethernet LAN up to 1G*, Wake on LAN

  Sync Input

  Separate Sync

• Power Delivery

  Version

  USB PD version 3.0

  Max power delivery

  USB-C up to 100 W* (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.8A)

• Convenience

  Built-in Speakers

  5 W x 2

  Built-in webcam

  Pop-up 5.0 megapixel camera with microphone and LED indicator (for Windows Hello)

  Noise cancellation

  Yes

  MultiView

  • PIP/PBP mode

  • 2x devices

  KVM

  Yes (USB-C/USB-C)

  User convenience

  • SmartImage

  • Input

  • User

  • Menu

  • Power On/Off

  Control software

  SmartControl

  OSD Languages

  • Brazil Portuguese

  • Czech

  • Dutch

  • English

  • French

  • Finnish

  • German

  • Greek

  • Hungarian

  • Italian

  • Japanese

  • Korean

  • Portuguese

  • Polish

  • Russian

  • Simplified Chinese

  • Spanish

  • Swedish

  • Traditional Chinese

  • Turkish

  • Ukrainian

  Other convenience

  • Kensington lock

  • VESA mount (100x100mm)

  Plug & Play Compatibility

  • DDC/CI

  • Mac OS X

  • sRGB

  • Windows 11 / 10 / 8.1 / 8 / 7

• Stand

  Height adjustment

  180  mm

  Swivel

  -/+180  degree

  Tilt

  -5/25  degree

• Power

  ECO mode

  31 W (typ.)

  On mode

  35 W (typ.) (EnergyStar test method)

  Standby mode

  0.3 W (typ.)

  Off mode

  Zero watts with AC switch

  Power LED indicator

  • Operation - White

  • Standby mode- White (blinking)

  Power supply

  • Built-in

  • 100-240VAC, 50-60Hz

• Dimensions

  Product with stand(max height)

  807 x 601 x 250  mm

  Product without stand (mm)

  807 x 367 x 110  mm

  Packaging in mm (WxHxD)

  904 x 525 x 282  mm

• Weight

  Product with stand (kg)

  11.71  kg

  Product without stand (kg)

  8.04  kg

  Product with packaging (kg)

  15.38  kg

• Operating conditions

  Temperature range (operation)

  0°C to 40  °C

  Temperature range (storage)

  -20°C to 60  °C

  Relative humidity

  20%-80  %

  Altitude

  Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)

  MTBF (demonstrated)

  70,000 hrs (excluded backlight)

• Sustainability

  Environmental and energy

  • PowerSensor

  • LightSensor

  • EnergyStar 8.0

  • EPEAT*

  • TCO Certified

  • RoHS

  Recyclable packaging material

  100  %

  Post consumer recycled plastic

  85%

  Specific Substances

  • Mercury free

  • PVC / BFR free housing

• Compliance and standards

  Regulatory Approvals

  • CB

  • CE Mark

  • FCC Class B

  • ICES-003

  • CU-EAC

  • EAEU RoHS

  • TUV Ergo

  • TUV/GS

  • TUV Eye Comfort certified

  • MEPS

  • RCM

• Cabinet

  Front bezel

  Black

  Rear cover

  Black

  Foot

  Black

  Finish

  Texture
