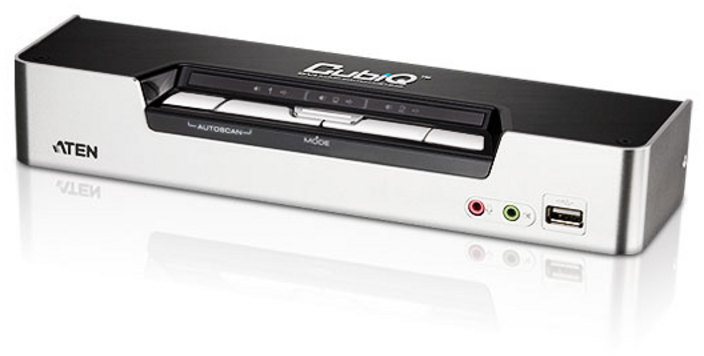

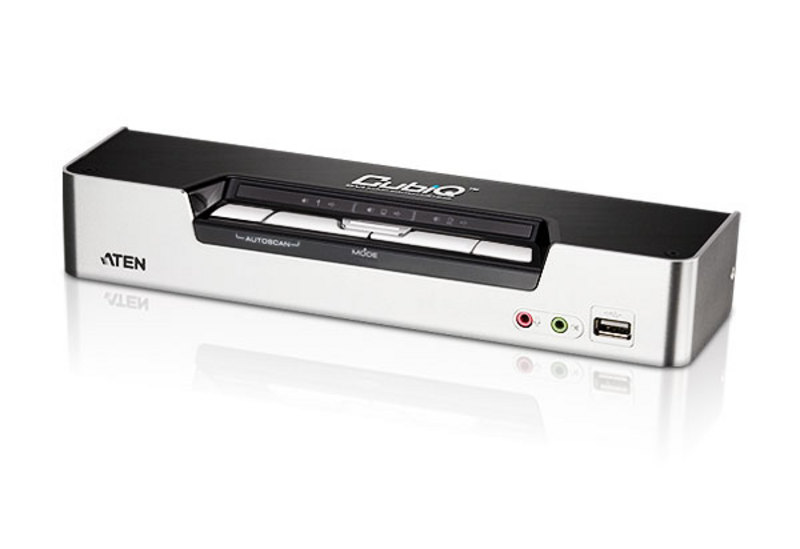

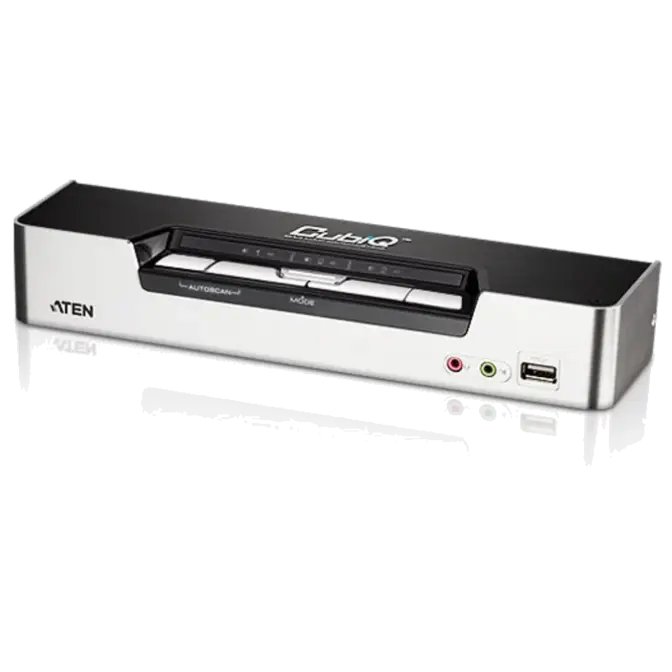

4 Port Aten CS1794-AT-U USB HDMI KVMP Switch with Dolby Audio
Web ID: 10758
With its unique design and innovative features, the CubiQ CS1794 USB 2.0 HDMI KVMP Switch provides both style and functionality for today's multimedia SOHO environment ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: CS1794-AT-U
GTIN: 672792100260
Manufacturer Website
With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the home or office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

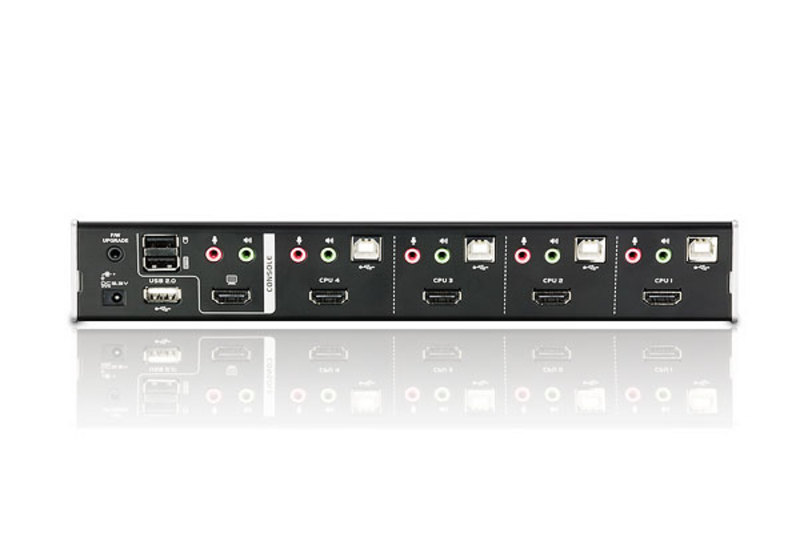

| Computer Connections | 4 | ||
| Port Selection | Front Panel Pushbuttons; Hotkeys | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (Black; rear panel) |
| Video | 1 x HDMI Type A Female (Black) | ||
| Mouse | 1 x USB Type A Female (Black; rear panel) | ||
| Speaker | 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) | ||
| Mic. | 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) | ||
| KVM Ports | Keyboard / Mouse | 4 x USB Type B Female (White) | |
| Video | 4 x HDMI Type A Female (Black) | ||
| Speaker | 4 x Mini Stereo Jack Female (Green) | ||
| Mic. | 4 x Mini Stereo Jack Female (Pink) | ||
| F/W Upgrade | 1 x 4-conductor 3.5mm Jack (Black) | ||
| Power | 1 x DC Jack | ||
| USB 2.0 Hub | 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel) | ||
| Switches | Selected | 5 x Pushbutton | |
| LEDs | Audio | 5 (Green) | |
| KVM | 5 (Orange) | ||
| USB | 5 (Green) | ||
| Emulation | Keyboard/Mouse | USB | |
| Video | 1080p (HDTV) / 1920 x 1200 (DVI) | ||
| Scan Interval | 1-99 secs. (Default: 5 secs) | ||
| Power Consumption | DC 5.3 V, 4.8 W | ||
| Environment | Operating Temp. | 0-50?XC | |
| Storage Temp. | -20-60?XC | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal, Plastic | |
| Weight | 0.53 kg | ||
| Dimensions (L x W x H) | 26.50 x 7.30 x 4.50 cm | ||
