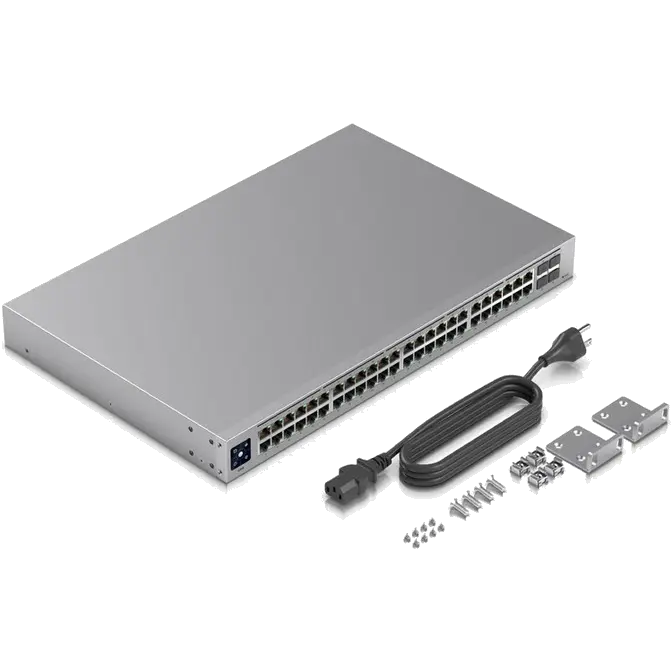

48 Port Ubiquiti UniFi USW-48 Managed Gigabit Switch
Web ID: 30423
The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Manufacturer Warranty: 2 Year
Manufacturer PN: USW-48
GTIN: 810010072481
Features:
(48) Gigabit RJ45 ports
(4) 1G SFP ports
Layer 2 features
Fanless, silent cooling
1.3" touchscreen display, supports UniFi Network AR
Managed by UniFi Network Controller (5.13.10 or later)
MECHANICAL
Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
Weight Without Mount: 3.9 kg (8.6 lb)
With Mount: 3.99 kg (8.8 lb)
Enclosure Characteristics SGCC Steel
HARDWARE
Total Non-Blocking Line Rate 52 Gbps
Max. Power Consumption 40W
Forwarding Rate 77.376 Mpps
Power Method Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply AC/DC, Internal, 60W
Supported Voltage Range 100 - 240VAC
Networking Interfaces (48) 10/100/1000 Mbps Ethernet RJ45 Ports
(4) 1 Gbps SFP Ports
Management Interface Ethernet In-Band
Modes SMB Layer 2 Gigabit Ethernet Switch
Operating Temperature -15 to 40° C (5 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
LEDS
System (1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet Green: 1G, Amber: 10/100 Mbps
SFP Green: 1G
