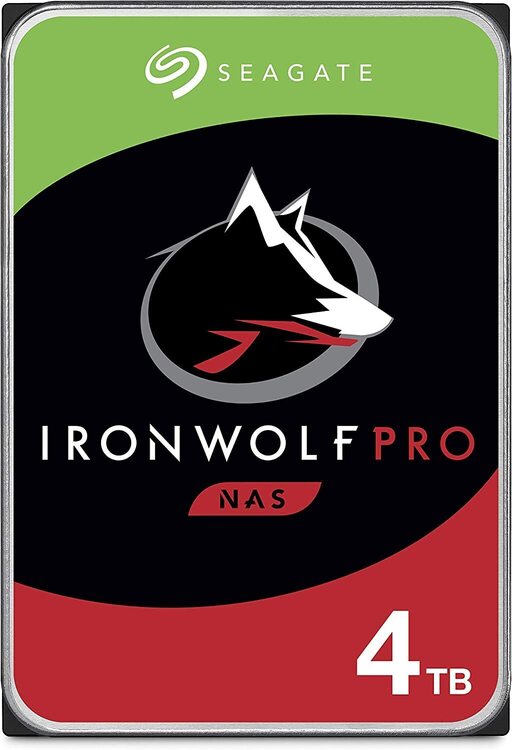

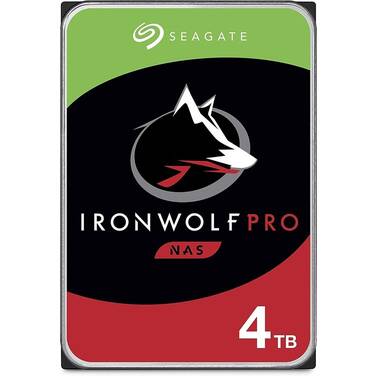

4TB Seagate 3.5" 7200rpm SATA IronWolf PRO NAS HDD ST4000NT001
Web ID: 43314
IronWolf Pro is designed to deliver reliable and dependable performance in 24x7 intensive workload environments. It is engineered to perform in commercial and enterprise multi-bay, multi-user, multi-application NAS storage solutions.
Manufacturer Warranty: 5 Year
Manufacturer PN: ST4000NT001
GTIN: 763649176337
Manufacturer Website
Optimized for NAS with AgileArray™
AgileArray uses dual-plane balancing and time-limited error recovery (TLER) to deliver best-in-class RAID performance in multi-bay systems.
Always On, Always Accessible
IronWolf Pro drives are designed for 24x7 performance, allowing users to access their data anytime, anywhere.
All-CMR Portfolio
All IronWolf Pro drives utilize conventional magnetic recording (CMR) technology for consistent, best-in-class NAS performance.
Up to 20TB
Broad range of high-performance capacity options to deliver scalable and costefficient storage solutions.
Built Tough
IronWolf Pro drives are rated for up to 550TB/year workload rate, allowing commercial and enterprise NAS users to seamlessly store, share, and collaborate on large amounts of data over a network.
Class-Leading Reliability and Dependability
IronWolf Pro drives are rated for up to 2.5M hours MTBF and include a 5-year limited warranty for hassle-free data storage and best-inclass total cost of ownership (TCO).
Rotational Vibration (RV) sensors
Built-in RV sensors coupled with dynamic fly-height technology correct for external vibration to deliver consistently high performance and reliability in multi-bay systems.
IronWolf Health Management (IHM)
Actively protect your data with prevention, intervention, and recovery recommendations to ensure peak system health.
Peace of mind with Data Recovery
IronWolf Pro drives include three years of complimentary Rescue Data Recovery Services so users don't incur high recovery costs. In-house secure facilities with an industry-leading 95% success rate enable data recovery in the event of accidental data corruption or drive damage.
Specifications 4TB
Capacity 4TB
Standard Model Number ST4000NT001
Interface SATA 6Gb/s
Features Drive Bays Supported Unlimited
Recording Technology CMR
Drive Design (Air or Helium) Air
Workload Rate Limit (WRL) 550
Rotational Vibration (RV) Sensors Yes
Cache (MB) 256 2
Reliability/Data Integrity Mean Time Between Failures (MTBF, hours) 2,000,000
Nonrecoverable Read Errors per Bits Read, Max 1 per 10E15 1
Power-On Hours (per year) 8760
Sector Size (Bytes per Logical Sector) 512E
Rescue Data Recovery Services(years) 3
Limited Warranty (years) 5
Performance Spindle Speed (RPM) 7200
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s) 250MB/s
Rotational Vibration @ 10-1500 Hz (rad/s) 12.5
Power Consumption Startup Current, Typical (12V, A) 2.0
Idle Power, Average (W) 5.5
Average Operating Power (W) 8.7W
Standby Mode, Typical (W) 1.0
Sleep Mode, Typical (W) 1.0
Power Supply Requirements +12 V and +5 V
Environmental/Temperature Operating Temperature (ambient, min °C) 0
Operating Temperature (drive reported, max °C) 65
Nonoperating Temperature (ambient, min °C) -40
Nonoperating Temperature (ambient, max °C) 70
Environmental/Acoustics Vibration, Nonoperating: 10Hz to 500Hz (Grms) 2.27
Acoustics, Idle (typical, measured in Idle 1 state) (dBA) 28
Acoustics, Seek (typical) (dBA) 30
Environmental/Shock Shock, Operating 2ms (Read/Write) (Gs) 70/40Gs
Shock, Nonoperating, 1ms and 2ms (Gs) 300
Physical Height (mm/in) 26.11mm/1.028in
Width (mm/in, max) 101.85mm/4.01in
Depth (mm/in, max) 146.99mm/5.787in
Weight (g/lb, typical) 650g/1.431lb
Carton Unit Quantity 20
Cartons per Pallet/Cartons per Layer 40/8
