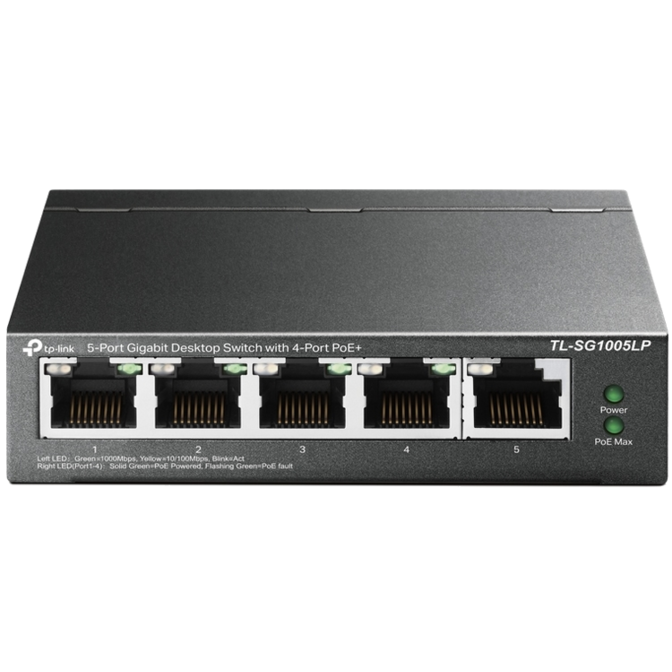

5-Port TP-Link TL-SG1005LP Gigabit Network Switch with 4-Port Power over Ethernet

5-Port TP-Link TL-SG1005LP Gigabit Network Switch with 4-Port Power over Ethernet

Web ID: 28609

5 x 10/100/1000 Mbps RJ45 ports. With 4 x PoE+ ports, transfers data and power on one single cable. Works with IEEE 802.3af/at compliant PDs. 802.1p/DSCP QoS enable smooth latency-sensitive traffic. Supports PoE Power up to 30 W for each PoE port. Supports PoE Power up to 40 W for all PoE ports*. Plug and play, no configuration and installation required . ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 5 Year
Manufacturer PN: TL-SG1005LP
GTIN: 6935364052720
Manufacturer Website

$49

Add to cart

Out of Stock

Compare

Wish List

Question

Professional 5-Port Gigabit Switch with 4 PoE+ Ports

Plug and Play, with PoE power supply which meets the needs of diverse devices.

TL-SG1005LP

40 W PoE Budget*
Plug and Play
Multicast Optimization
QoS for Traffic
Prioritization
Intelligent Power
Management
Durable Metal Casing

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

4 PoE+ Ports
Up to 30 W on Each Port
Total 40 W Power Budget

TL-SG1005LP

Router

Internet

Surveillance
IP Camera

Conference Calls
IP Phone

Wi-Fi Coverage
Access Point

Plug and Play, No Configuration Required

Plug-In
Connect Devices
IP phoneIP CameraAccess PointsInternetRouterTL-SG1005LP
Enjoy

Intelligent Power Management

When total power consumption exceeds 40 W, intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Power overload40WIntelligent Power ManagementIntelligent power supply40W

Advanced Functions for Higher Performance

Qos

For Fluent Online Experience

Administrators can designate the priority of the traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP

Snooping

Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing

The interior components of TL-SG1005LP are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Compact Desktop
Design
Wall-Mounting
Fanless Design

High-Quality Metal25mm100mm98mm

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

HARDWARE FEATURES
Interface	• 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate	7.44 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption	• 4.12 W (220/50 Hz. no PD connected) • 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation	• 14.05 BTU/h (no PD connected) • 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
Transfer Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SG1005LP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
