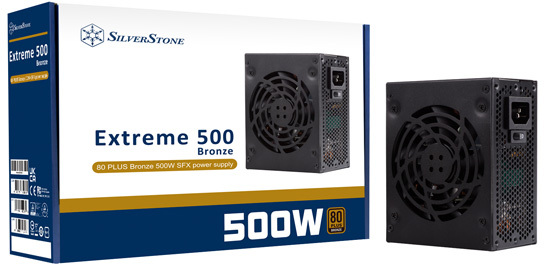

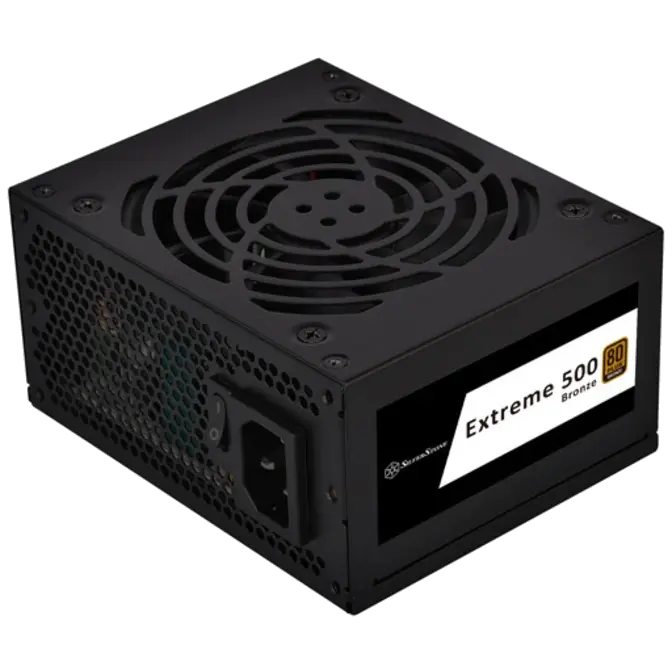

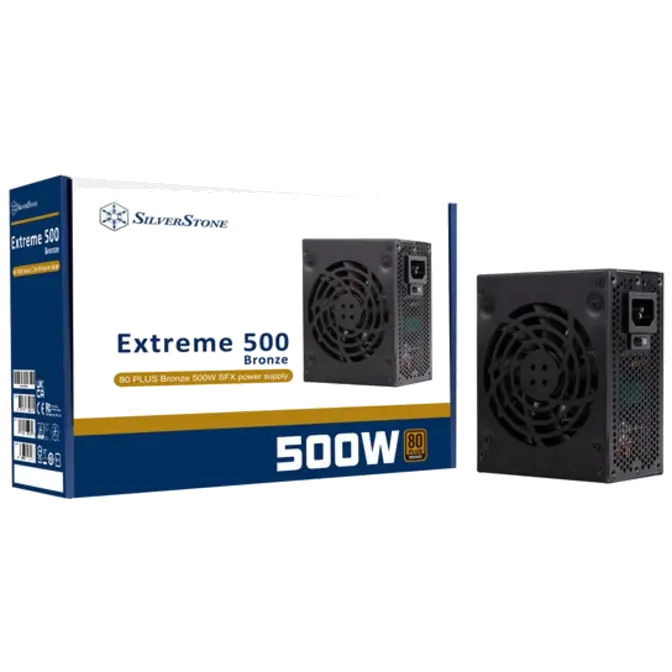

500 Watt Silverstone EX500-B 80 PLUS Bronze SFX Power Supply
Web ID: 38052
Supports standard SFX form factor and ATX via included bracket
500W 24/7 continuous power output with 40 operating temperature
Silent running 92 mm fan with 18dBA minimum
Japanese primary capacitor
High efficiency with 80 PLUS Bronze certification
Class-leading single +12V rail
PCIe 8-Pin and PCIe 6-Pin connectors support
Manufacturer Warranty: 3 Year
Manufacturer PN: SST-EX500-B
GTIN: 844761020613
Manufacturer Website
Product No.
SST-EX500-B
Model (safety certification)
SST-SX0500FCBR-A
Color
Black (lead-free paint)
Max. DC Output
500W
Power density
630W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 41.66A | 2.5A | 0.3A |
| Min.(Amps) | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
120W
Combined +12V
499.2W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at Full Load)
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS / ATX 12V connector
1 x 8 / 4-Pin EPS / ATX 12V connector
2 x 8 / 6-Pin PCIe connectors
3 x SATA connectors
2 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
Cooling System
Silent 92mm fan
Noise Level
18 dBA minimum
Certification
80 PLUS Bronze
Form factor
SFX
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
Weight
1.02 kg
Other
