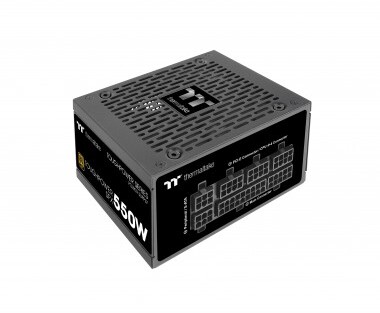

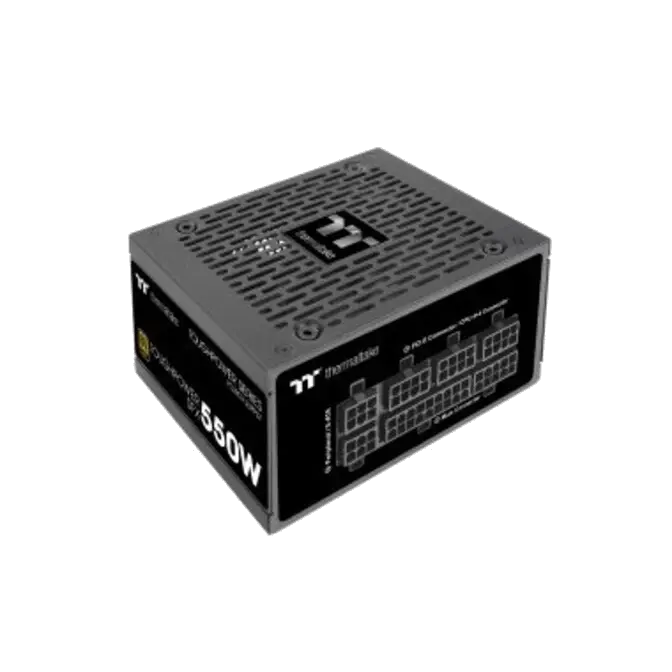

550 Watt Thermaltake Toughpower SFX GOLD Modular PS-STP-0550FNFAGA-1 Power Supply
Web ID: 32386
The Toughpower SFX 550W Gold is an upgraded version of our previous SFX form factor PSUs, targeting users who are using Mini ITX cases or other compact cases. The dimensions of the PSU are 100mm (D) x 125mm (W) x 63.5mm (H) as standard profile. Moreover, it is constructed with premium components and advanced technology which makes this PSU a reliable and stable power supply unit. With an ample 7-year warranty, the Toughpower SFX 550W Gold can satisfy the market where PC enthusiasts are looking for a premium power supply with all the latest features. includes SFX to ATX Bracket
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 7 Year
Manufacturer PN: PS-STP-0550FNFAGA-1
GTIN: 841163077825
Manufacturer Website
$159
| P/N | PS-STP-0550FNFAGA-1 |
|---|---|
| WATTS | 550W |
| RGB FAN | No |
| FORM FACTOR | SFX |
| MODEL | SFX-550AH8FKG |
| MAX. OUTPUT CAPACITY | 550W |
| PEAK OUTPUT CAPACITY | 660W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 125mm(W) x 63.5mm(H) x 100mm(D) |
| WEIGHT | 0.845KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 80% of full load |
| INPUT CURRENT | 10A max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 5°C to + 40°C |
| OPERATING HUMIDITY | 20% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing |
| COOLING SYSTEM | 9cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV/FCC/BSMI/EAC/CCC/S-Mark/C-TICK |
| PCI-E 6+2PIN | 2 |
| PROTECTION | OCP, OVP, OPP, SCP |
