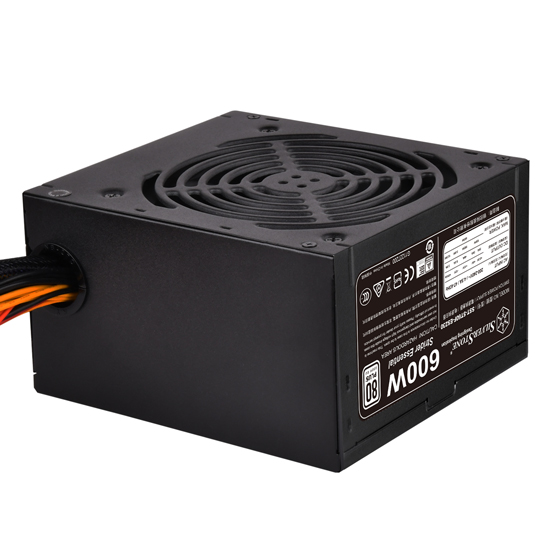

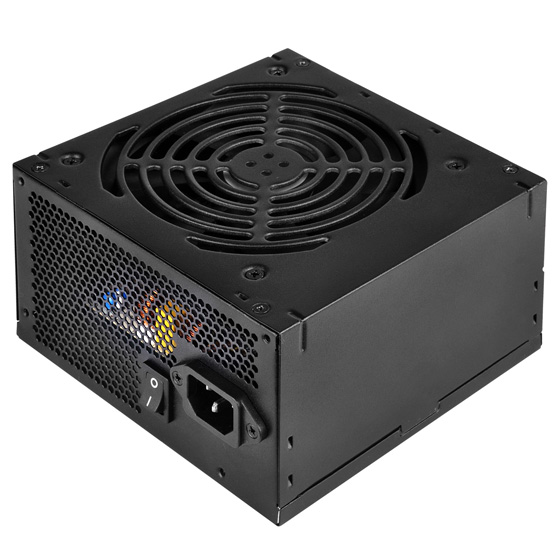

600 Watt SilverStone ST60F-ES230 Essential PSU 80+ SST-ST60F-ES230
Web ID: 26343
600W, ATX, 230V only, single +12V rails with46A output, Silent 120mmFan with 18dBA, efficiency 80Plus 230V EU certification, fixed cable, 140mm depth, 2xPCIE-8/6pin ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: SST-ST60F-ES230
 | ? High efficiency with 80 PLUS certification ? 24/7 continuous power output with 40?J operating temperature ? Class-leading single +12V rail ? Active PFC Circuitry ? PCI-E 8pin and PCI-E 6pin connector support ? Silent running 120mm fan with 18dBA |
|---|---|
  | |
The Strider Essential series is a line of power supplies designed with high affordability and great performance. They have 80 PLUS certification with maximum efficiency of up to 85% under 230V. Equipped with powerful single +12V rail and quiet running fan, they also provide stable performance with minimum noise. For longevity, they are based on proven design and built with quality components to support 24/7 operation at up to 40 degrees Celsius. Even high-end systems with powerful graphics cards can be powered easily by Strider Essential PSUs standard 8pin/6pin PCI-E connectors, making them an outstanding choice for those seeking best value and performance for their money. | |
Remark | |
| Model No. |
SST-ST60F-ES230
|
||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output |
600W
|
||||||||||||||||||||||||||||||||||||||||||
| Power density |
332W per liter
|
||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Color |
Black?]Lead-Free Paint?^
|
||||||||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V |
120W
|
||||||||||||||||||||||||||||||||||||||||||
| Combined +12V |
552W
|
||||||||||||||||||||||||||||||||||||||||||
| Input Voltage |
180V~264V
|
||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range |
47Hz~63Hz
|
||||||||||||||||||||||||||||||||||||||||||
| PFC |
Active PFC?]PF>0.9 at full load?^
|
||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
82% ~ 85% at 20% ~ 100% loading
|
||||||||||||||||||||||||||||||||||||||||||
| MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
0?XC ~ 40?XC
|
||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over Power Protection
Over Voltage Protection Short Circuit Protection |
||||||||||||||||||||||||||||||||||||||||||
| Connectors |
1 x 24 / 20-Pin motherboard connector?]500mm?^
1 x 8 / 4-Pin EPS / ATX 12V connector?]750mm?^ 2 x 8 / 6-Pin PCIE connector?]"500mm / 150mm"?^ 4 x SATA connector?]"500mm / 150mm" x 2?^ 3 x 4-Pin Peripheral connector?]500mm / 150mm / 150mm?^? 1 x 4-Pin Floppy connector?]500mm / 150mm / 150mm / 150mm?^ |
||||||||||||||||||||||||||||||||||||||||||
| Cooling System |
Single 120mm silent fan
|
||||||||||||||||||||||||||||||||||||||||||
| Form factor | |||||||||||||||||||||||||||||||||||||||||||
| Noise Level |
18 dBA minimum
|
||||||||||||||||||||||||||||||||||||||||||
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D) |
||||||||||||||||||||||||||||||||||||||||||
| Weight |
1.41 kg
|
||||||||||||||||||||||||||||||||||||||||||
| Certification |
80 PLUS
|
||||||||||||||||||||||||||||||||||||||||||
| Other |
GPU Support list?
Compatible with ATX12V v2.4 |
||||||||||||||||||||||||||||||||||||||||||
| ?? Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. |
