600 Watt Thermaltake ToughPower GX1 RGB Power Supply PS-TPD-0600NHFAGA-1
Web ID: 27724
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 RGB features capacities ranging from 500W to 700W. 10 RGB LEDs come preinstalled on the Hydraulic Bearing fan to provide multiple vivid lighting mode/color options, LED Off, and a built-in memory function. CASH PRICE
Manufacturer Warranty: 5 Year
Manufacturer PN: PS-TPD-0600NHFAGA-1
GTIN: 841163005538
Manufacturer Website
Thermaltake Toughpower GX1 RGB 600W
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 RGB features capacities ranging from 500W to 700W. 10 RGB LEDs come preinstalled on the Hydraulic Bearing fan to provide multiple vivid lighting mode/color options, LED Off, and a built-in memory function. Coming with premium components, Japanese 105°C/221°F main capacitor, its near silent operation, trouble free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.
*The image is for reference only.
One Button to Your Desired Color
Adding personal appeal to your build has never been easier. By just pressing one RGB lighting button! There is also a built-in memory function to save the applied color and ensure the same color selection every time you turn on your PC.
10 RGB LEDs Preinstalled
The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and 256-color RGB Cycle, and an LED Off mode. * All images are for reference only; actual specification and lighting effects are based on the real product.
120mm RGB Hydraulic Bearing Fan

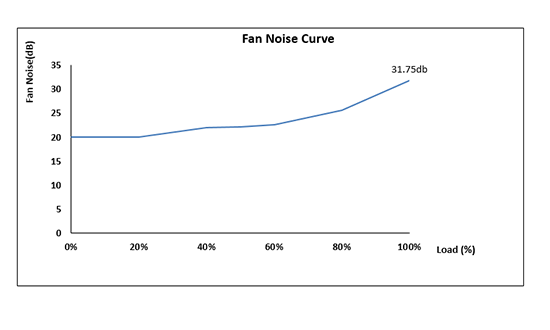

Featuring an 120mm RGB Hydraulic Bearing fan with intelligent RPM control to guarantee superior cooling performance and silent operation.
Low Ripple Noise
The maximum ripple/noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

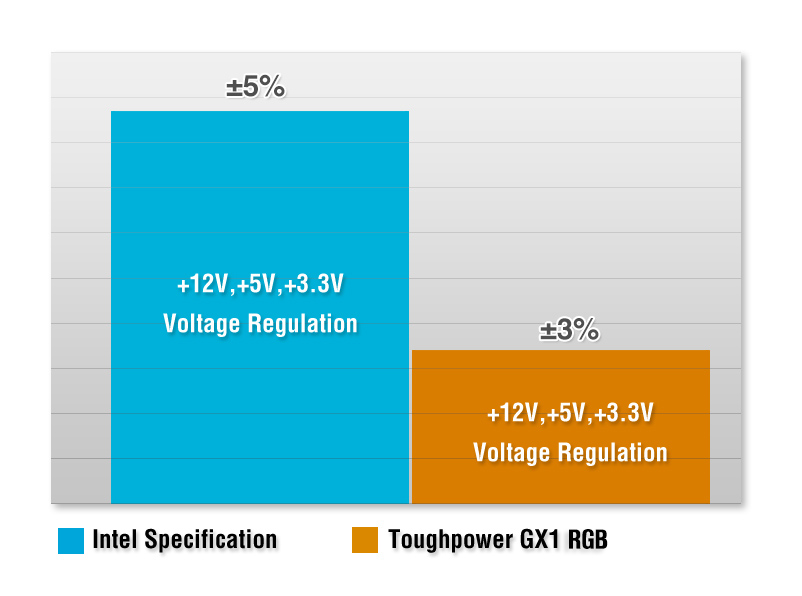

? ±3% Strict Voltage Regulation
The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the highest performance. The strict voltage regulation is better than Intel’s standard ±5% for major rails and ±10% for -12V.
High Quality Japanese 105°C/221°F Main Capacitor
Comes with high quality 105 °C (221 ° F) Japanese main capacitor to greatly improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.
Multiple Connectors
All sleeved cables make cable installation an easy task while powering the system at an advantageous voltage.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 RGB saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
RGB Lighting Gives Best Aesthetics for All Chassis
Toughpower GX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases.
| P/N | PS-TPD-0600NHFAGx-1 |
|---|---|
| watts | 600W |
| RGB Fan | Yes |
| Form Factor | ATX |
| Model | TP-600AH2NKG |
| Max. Output Capacity | 600W |
| Peak Output Capacity | 720W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 80% of full load |
| Input Current | 10A max. |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V - 240V~ |
| Operating Temperature | + 5°C to + 40°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/TÜV SUD/FCC/UL/BSMI/S-mark |
| PCI-E 6+2pin | 2 |
