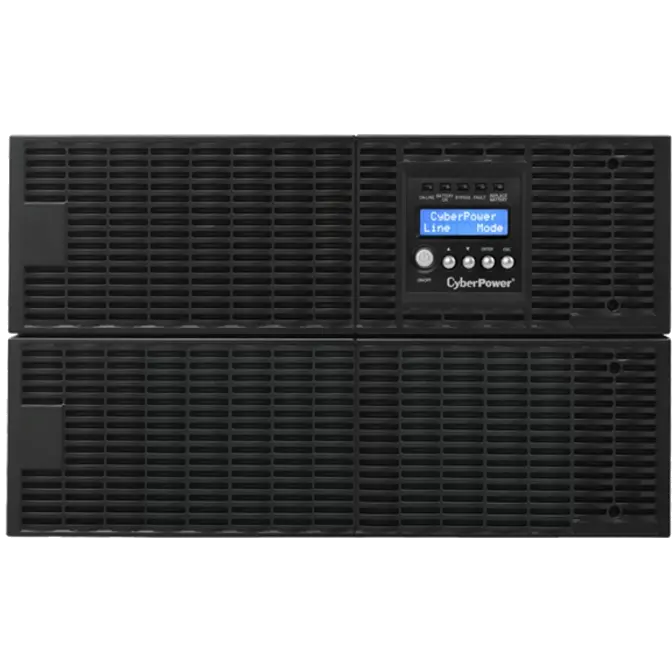

6000VA CyberPower 5400W True Online Double Conversion PN OL6000ERT3UP
Web ID: 9625
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: OL6000ERT3UP
Manufacturer Website
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits:
- 6U Rack Space (Including a 3U Power Module and a 3U Battery Module)
- Pure Sinewave Output
- Online (Double Conversion) UPS Topology

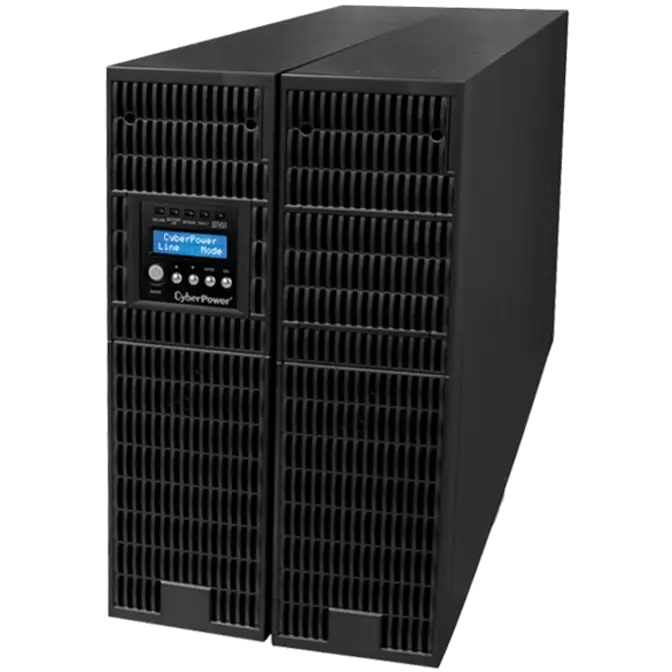

- Rack/Tower Convertible Configurations
- EMI, RFI, Surge and Spike Protection
- Critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Multifunction LCD Readout
- Rotatable LCD Indicator
- USB & Serial Connectivity Ports
- Extended Runtime (XL) Models
- Hot-Swappable Battery Packs
- Smart Fan Speed Control By Load Level
- Economy Mode setting
- Smart Battery Management(SBM)
- Remote Control/Wall-Mountable LCD panel
- Generator Mode setting
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Business Edition Software
| Model | OL6000ERT3UP |
| Capacity(VA/W) | 6000VA / 5400W |
| Typology | Online (Double Conversion) |
| Form Factor | Rackmount / Tower (Convertible) |
| Energy-Saving Technology | Yes, ECO Mode Efficiency > 95% |
| Input | |
| Voltage Range | 120~139Vac for 0~25% Load 140~159Vac for 0~50% Load 160~179Vac for 0~75% Load 180~280Vac for 0~100% Load |
| Frequency Range | 40~70Hz |
| Input Plug Type | (1) Hard Wire 3-wire |
| Output | |
| On Battery Output Voltage | Pure Sinewave at 200, 208, 220, 230, 240Vac (Configurable) ±2% |
| On Battery Output Frequency | 50 / 60Hz (Auto-Sensing or Configurable) ±0.25Hz |
| Transfer Time (Typical) | 0ms |
| Overload Protection | Line Mode: 105~125% Load for 1 min, 126~150% Load for 10 sec Battery Mode: 105~130% Load for 10 sec, 131~150% Load for 2 sec |
| Short Circuit Protection | UPS Output Cut Off Immediately or Input Fuse/Circuit Breaker Protection |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| DSL/Phone/Fax/Modem protection | RJ11/RJ45(One In/One Out) |
| Physical | |
| Dimensions(H x W x D)(mm)- Power Module | 132 x 433 x 820 |
| Dimensions(H x W x D)(mm)- Battery Module | 132 x 433 x 660 |
| Weight(kg) (Power Module) | 28.5 |
| Weight(kg) (Battery Module) | 76 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | 12V / 7.2AH x 20 |
| Hot-Swappable | Yes |
| Typical Recharge Time | 4 Hours |
| Runtimes | |
| Half load-Full load (mins) | 15/5.1 |
| Status Indication | |
| Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Multi-Function LCD Readout | Yes |
| Communication | |
| Power Management Software | PowerPanel® Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| Auto-Overload Recovery | Yes |
| Cold Start(DC Start) | Yes |

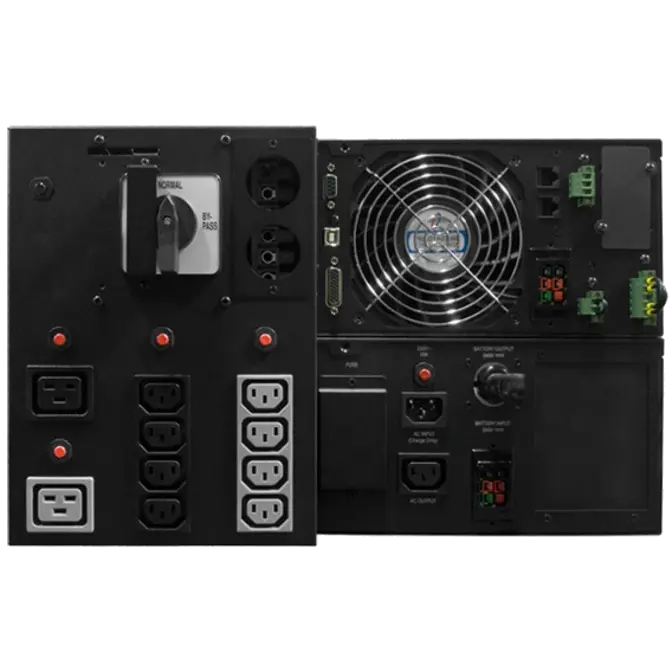

| Connectivity Ports | (1) Serial Port (RS232), (1) USB Port, (1) Remote Control Port, (1) Relay Out, (1) EPO, (1) Backfeed |
| SNMP/HTTP Capable | Optional |
