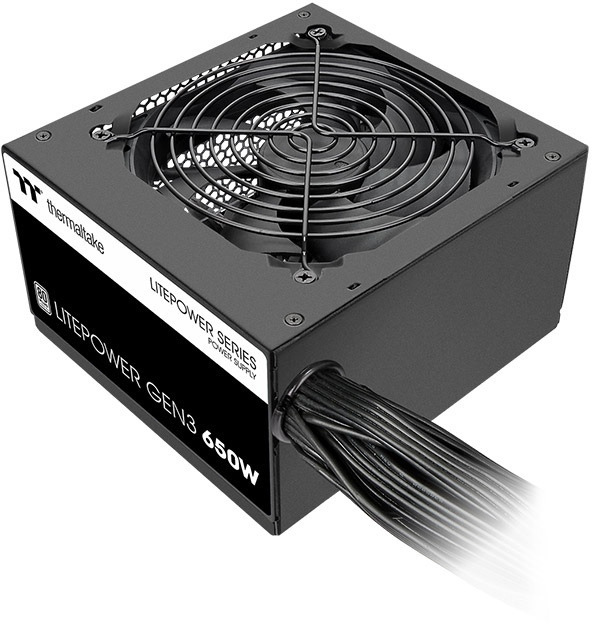

650 Watt Thermaltake Litepower GEN 3 Power Supply PS-LTP-0650NNSAWA-A
Web ID: 42402
Power Supply: 650W
Certification: 80 Plus White
Form Factor: ATX (PSU)
Manufacturer Warranty: 3 Year
Manufacturer PN: PS-LTP-0650NNSAWA-A
GTIN: 4711475644144
Manufacturer Website
The Litepower Gen3 Series
The Litepower Gen3 Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
The Litepower Gen3 series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V Standard Certified
The Litepower Gen3 Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors
The cables used for the Litepower Gen3 Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (20+4Pin) | X 1 |  | X 1 | 600mm |
| ATX 12V (4+4Pin) | X 2 |  | X 1 | 650mm+150mm |
| PCIe (6+2Pin) | X 2 |  | X 1 | 500mm+150mm |
| SATA (4Pin) | X 4 |  | X 1 | 500mm+150mm +150mm+150mm |
| Peripheral (4Pin) | X 4 |  | X 1 | 500mm+150mm +150mm+150mm |
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
The Litepower Gen3 Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT | Input Voltage: 200-240Vac | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 18A | 18A | 54.1A | 0.3A | 2.5A |
| Max Output Power | 100W | 649.2W | 3.6W | 12.5W | |
| Continuous Power | 650W | ||||
Built-in Industrial Grade Protection
To protect the hardware, the Litepower Gen3 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
| P/N | PS-LTP-0650NNSAWA-A |
|---|---|
| watts | 650W |
| Model | TRS-650AH3NXW |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 8A Max. |
| Input Frequency Range | 50Hz |
| Input Voltage | 200-240Vac |
| Operating Temperature | 5°C to + 40°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm Hydraulic Bearing Fan |
| Efficiency | 80 PLUS® 230V EU Certified |
| MTBF | 100,000 hrs minimum |
| Safety Approval | FCC/ICES/CB/cTUVus |
| PCI-E 6+2pin | 2 |
| Protection | OCP/OVP/OPP/OTP/UVP/SCP |
