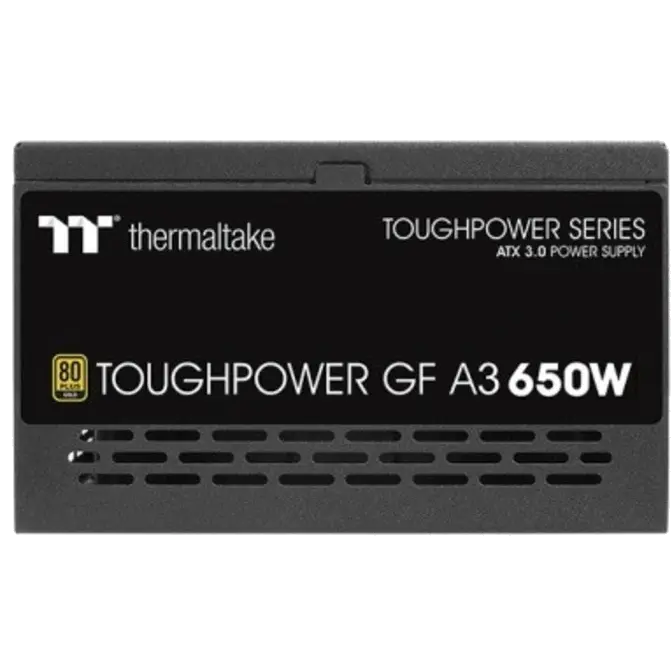

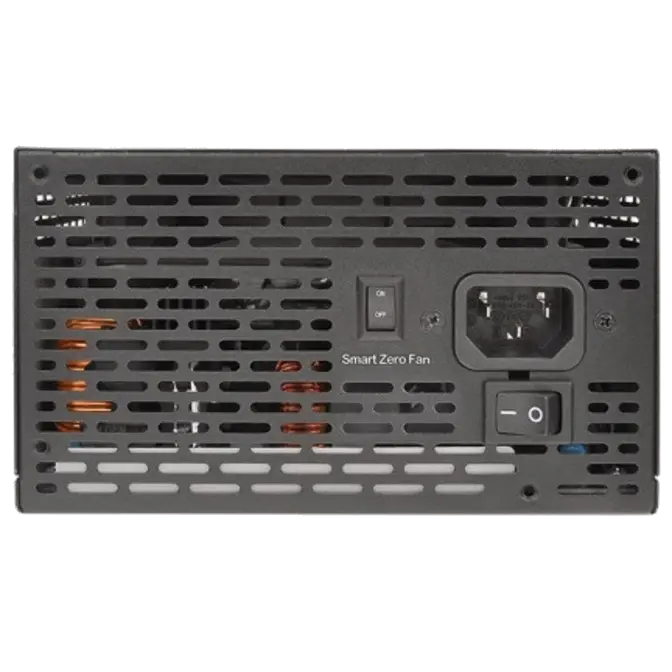

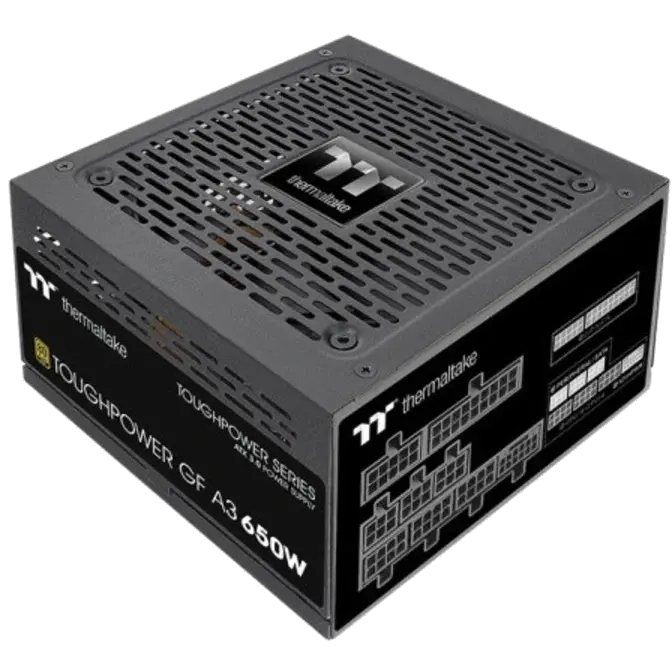

650 Watt Thermaltake Toughpower GF A3 Gen5 Power Supply PS-TPD-0650FNFAGA-H
Web ID: 37206
80 PLUS Gold certified, compatible with Intels ATX 3.0 specifications and includes 12VHPWR connector.
The Toughpower GF A3 is ready to power your next-gen hardware. The wattage marked on the 12VHPWRs connector is the recommended wattage. (Ref. Intel design guideline).
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 10 Year
Manufacturer PN: PS-TPD-0650FNFAGA-H
GTIN: 841163088043
Manufacturer Website
$129SAVE $20
| P/N | PS-TPD-0650FNFAGA-H |
|---|---|
| WATTS | 650W |
| MODEL | TTP-650AH2FKG |
| MAX. OUTPUT CAPACITY | 650W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 10A Max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |

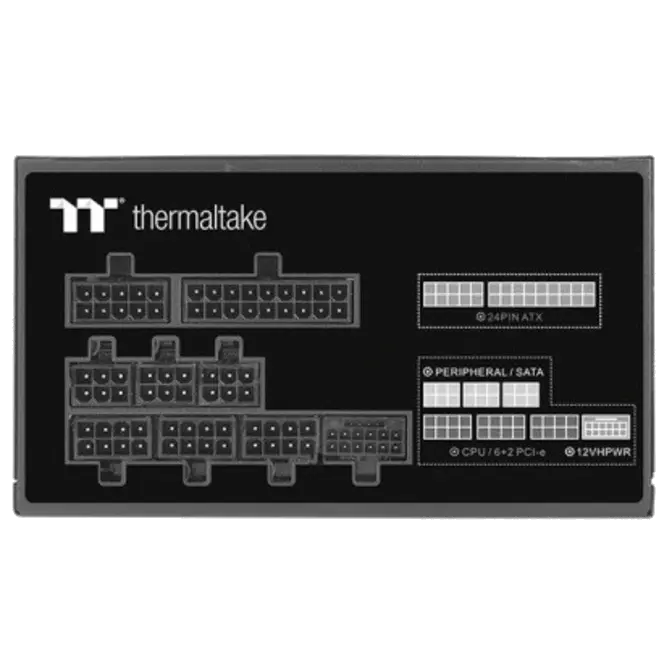

| PCI-E 6+2PIN | 4 |
| PCIE 12+4PIN | 1(300W) |
