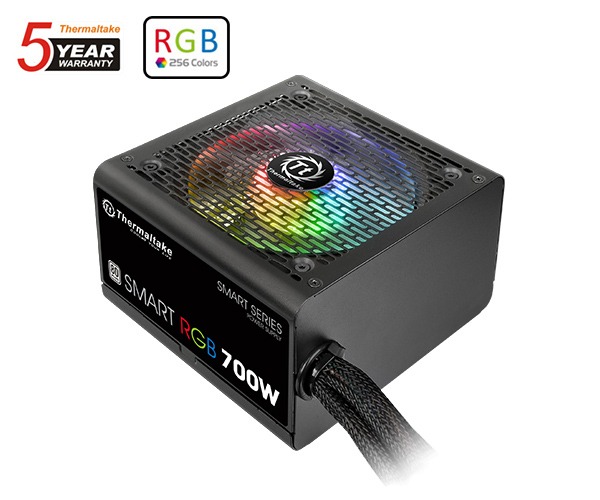

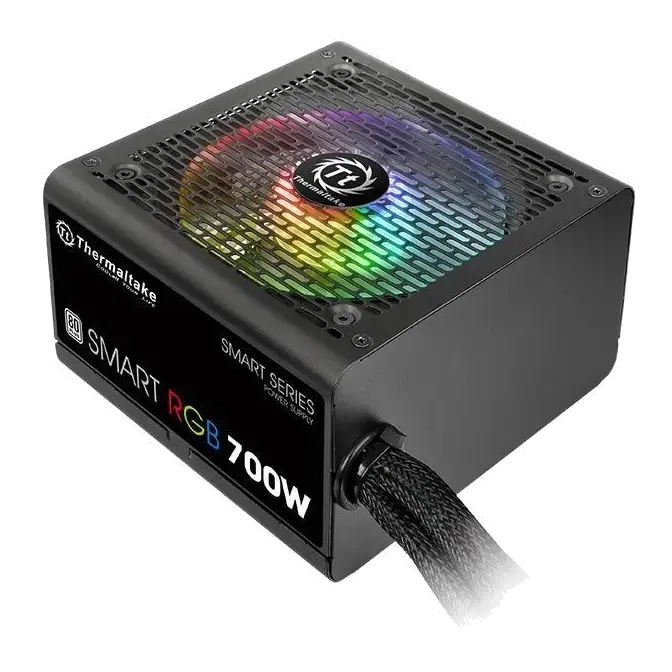

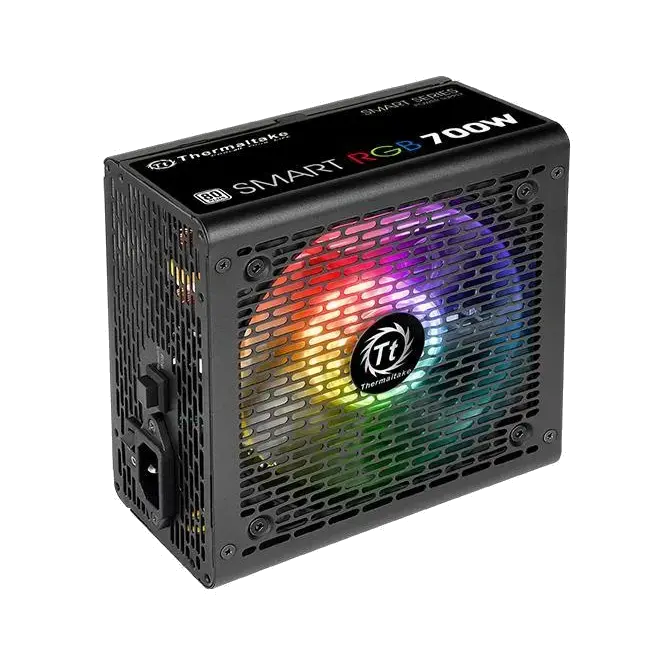

700 Watt Thermaltake Smart RGB White Power Supply PN PS-SPR-0700NHSAWA-1

Web ID: 21741

Introducing the latest Thermaltake RGB power supply, the Smart RGB range brings RGB lighting to every PC build. The Smart RGB power supply comes with a pre-installed, 256 colors RGB fan with 15 lighting modes to choose from and built-in memory.
Manufacturer Warranty: 5 Year
Manufacturer PN: PS-SPR-0700NHSAWA-1
GTIN: 841163000472
Manufacturer Website

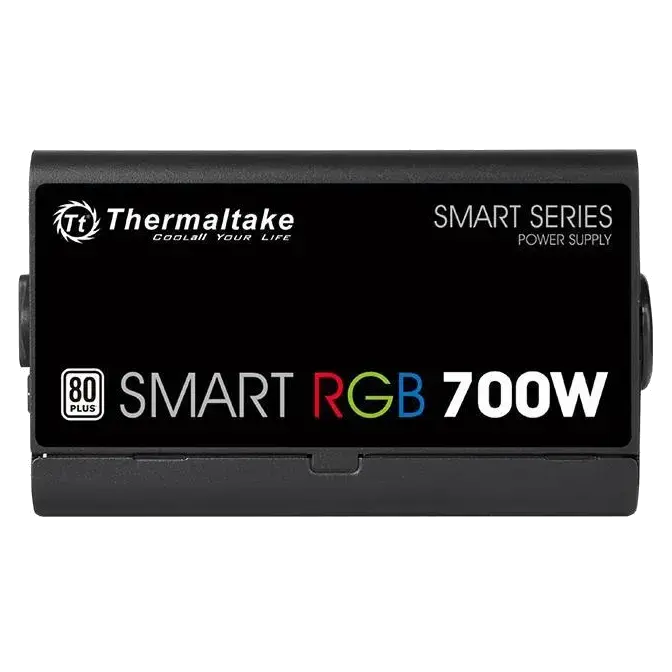

Smart RGB 700W Power Supply

Introducing the latest Thermaltake RGB power supply - the Smart RGB range brings RGB lighting to every PC build. The Smart RGB power supply comes with a pre-installed, 256 colors RGB fan with 15 lighting modes to choose from and built-in memory.

Featuring capacities ranging from 500W to 700W and 80 PLUS Standard certification, the Smart RGB Series is sleek, quiet, and packs enough punch to power your gaming rig.

Smart RGB PSU Product Guide

* All images are for reference only; actual specification and lighting effects are based on the real product.

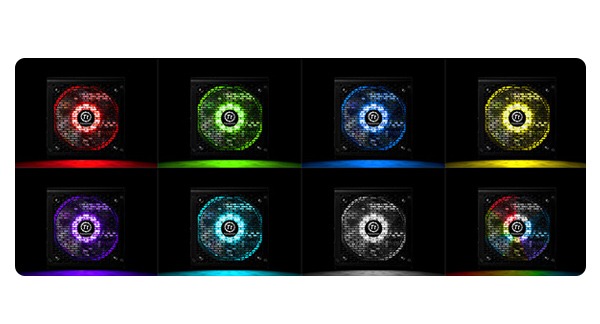

One button, 15 options

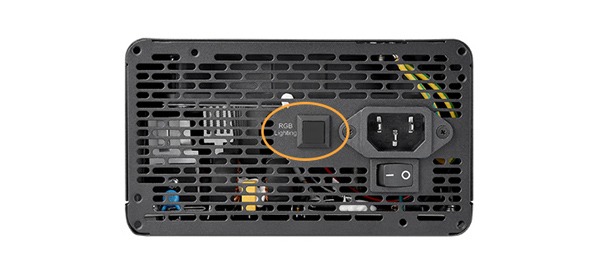

By pressing the RGB lighting button, the fan colour can be switched between 15 lighting modes including pulsing colours, 256 Colour RGB Cycle, as well as solid colours and an LED Off mode. The fan also includes a built-in memory function, saving the colour applied and keeping your settings stored every time.

* All images are for reference only; actual specification and lighting effects are based on the real product.

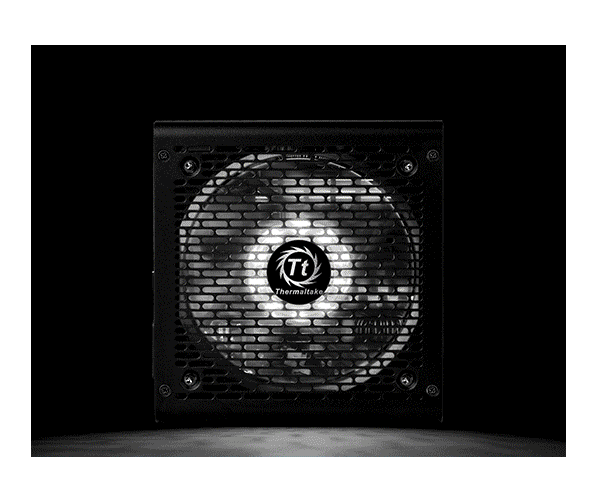

10 LED Light Bulbs

The Smart RGB Series feature 10 independent LED bulbs to give you the brightest and clearest colour in every setting.

* All images are for reference only; actual specification and lighting effects are based on the real product.

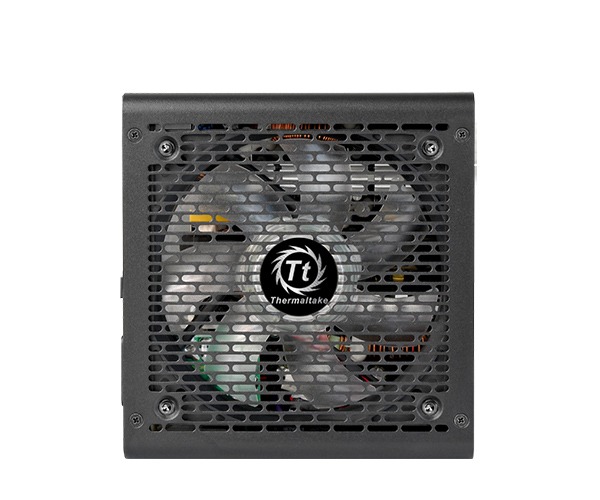

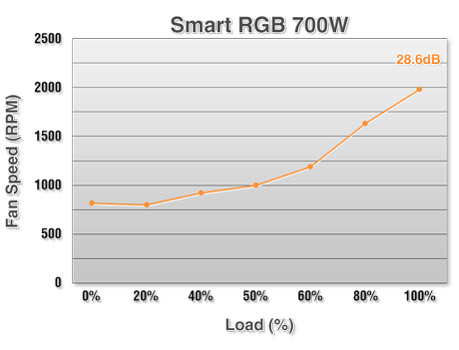

Ultra Quiet 120mm Fan

The Smart RGB series uses a Thermaltake 120mm cooling fan with intelligent RPM control, so your PSU can stay cool and quiet as it needs to.

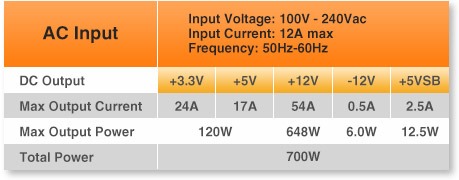

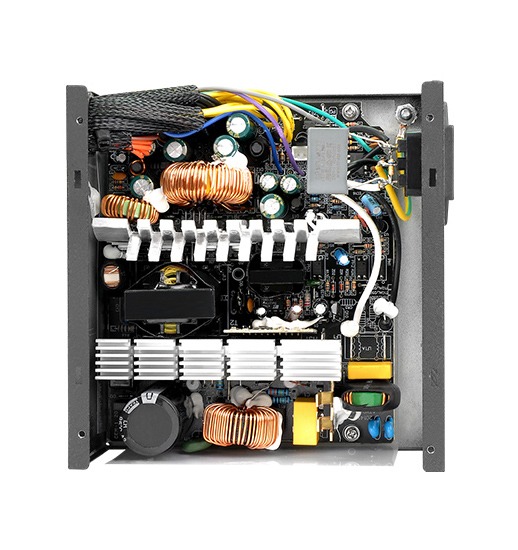

High Amperage Single +12V Rail

The Smart RGB 700W is equipped with a powerful single +12V rail, which simplifies the voltage distribution and delivers consistent power to your CPU and GPU as it's needed.

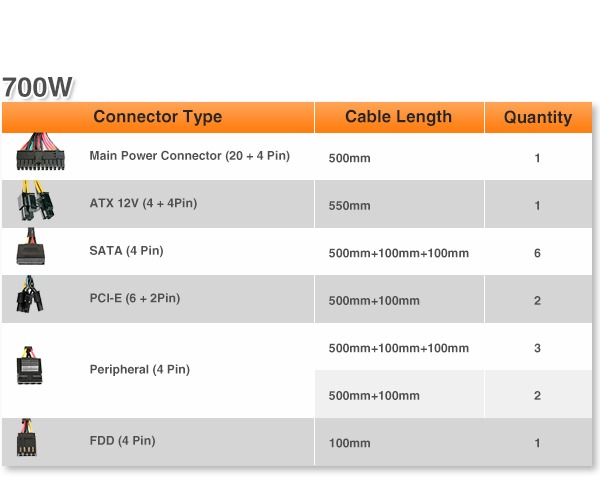

Multiple Connectors

The Smart RGB PSU offers a range of cables for different sized builds, and with different lengths available, cable management should be a breeze.

80 PLUS Certified and Kaby Lake Ready

Deliver up to 87% efficiency under real world load conditions to promise low power losses. Additionally, Smart RGB Series has been optimized to work with Intel’s latest, seventh-generation Kabylake processors to achieve maximum energy saving.

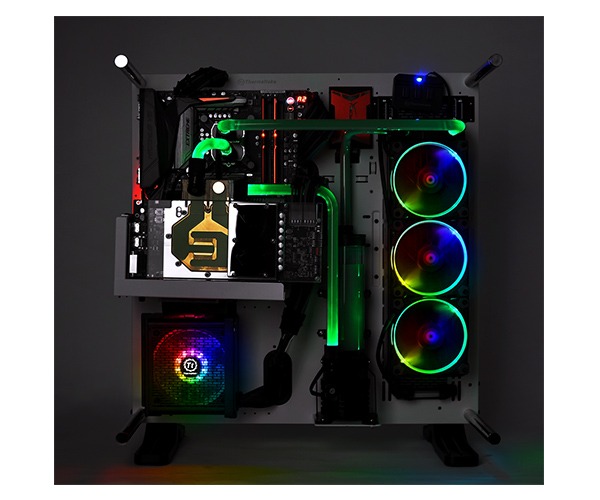

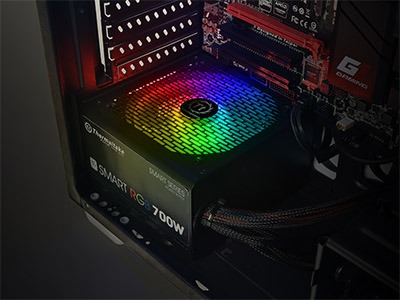

RGB Lighting For Every Build

Designed for open-frame chassis' and tempered glass towers, the Smart RGB series is all about showing your style in your PC.

* All images are for reference only; actual specification and lighting effects are based on the real product.

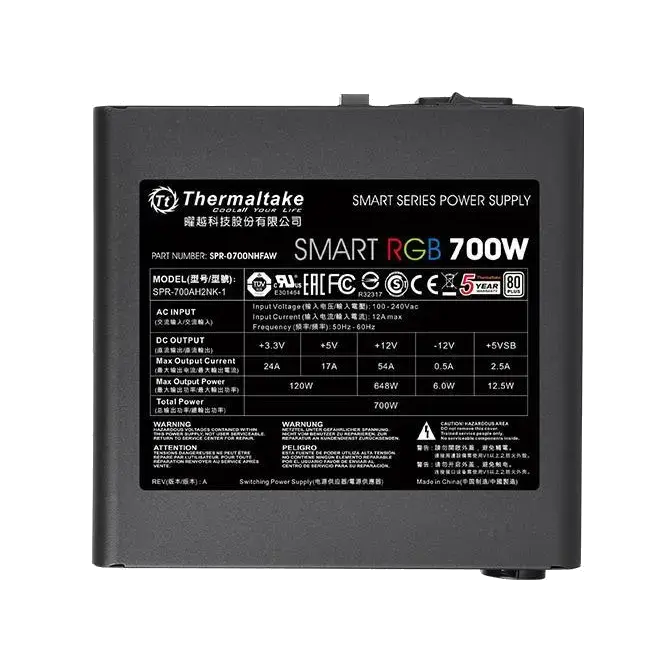

Short P/N SPR-0700NHFAW
Model SPR-700AH2NK-1
Type Intel ATX 12V 2.3
Max. Output Capacity 700W
Color Black
Dimension (H x W x D) 86mm x 150mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) within 60% load
Input current 12A max
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100Vac - 240Vac
Operating Temperature 5? to +40?
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40 ? to +55 ?
Storage Humidity 10% to 95%, non-condensing
Cooling System 120mm Fan: 1800 R.P.M. ± 10%
Efficiency 80-87% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
Safety Approval CE/CB/TUV/ UL/ FCC/ EAC
P/N PS-SPR-0700NHFAWx-1
Protection OVP, OPP, SCP
