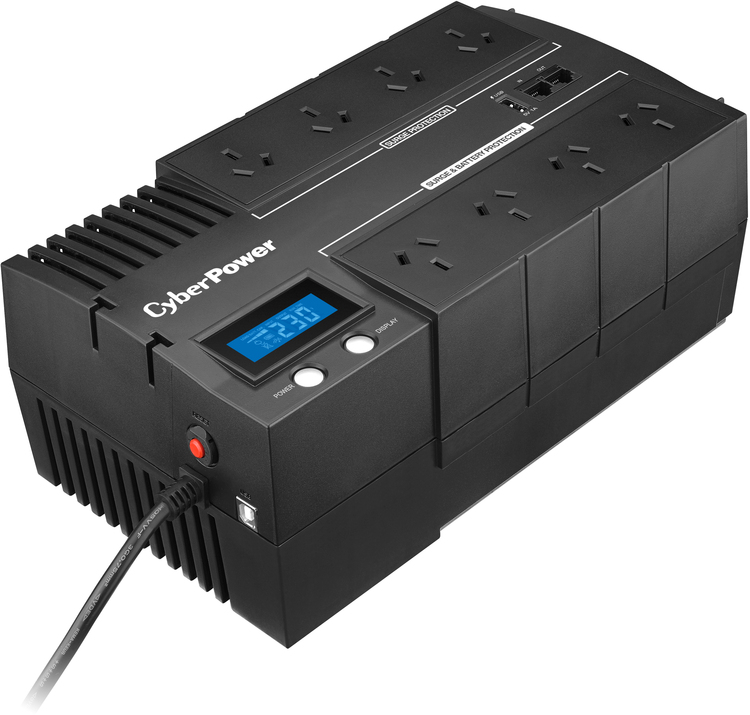

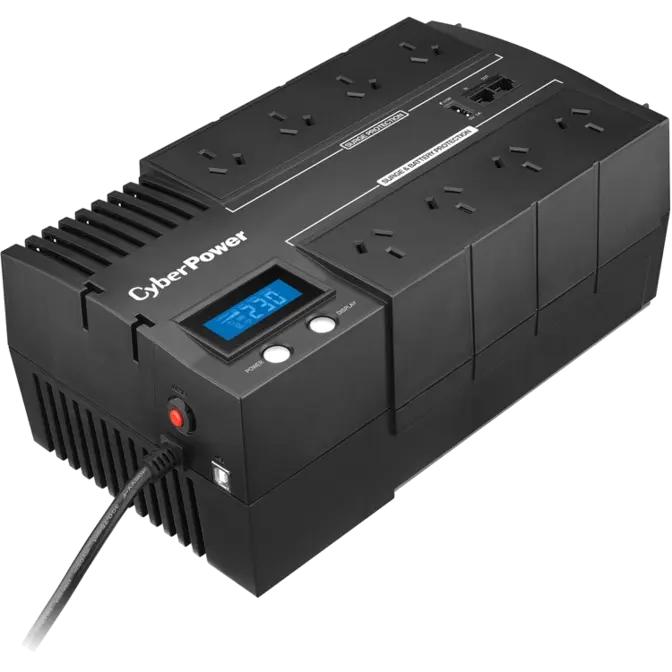

700VA CyberPower BRIC-LCD 390W UPS PN BR700ELCD

Web ID: 18964

The BRICs LCD Series UPS offers home and small office users clean and stable battery backup while the featured RJ11/RJ45 port ensures phone, fax, and modem lines are protected from surges.
Manufacturer Warranty: 2 Year
Manufacturer PN: BR700ELCD
GTIN: 4712856270174
Manufacturer Website

$149SAVE $20

The BRICs LCD Series UPS offers home and small office users clean and stable battery backup while the featured RJ11/RJ45 port ensures phone, fax, and modem lines are protected from surges. With Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, this allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The multifunction LCD readout provides immediate access to precise information of critical power/battery condition. For convenient mounting, these units can be installed in either a horizontal or wallmounted placement to make the most of your space.

The included PowerPanel® Personal Edition management software showcases the feature rich abilities such as input/output power voltage readings, self-diagnostics, and approximate battery backup time. With the Energy-Saving Technology, the BRICs LCD Series UPS can save up to 75% of electricity therefore save your electricity expenses.



Features & Benefits:

  • GreenPower UPS™ Technology : Energy-Saving UPS
  • Automatic Voltage Regulation (AVR)
  • EMI, RFI, Surge and Spike Protection
  • Phone/Fax/Modem/DSL/Network Protection
  • Auto-Restart/Auto-Charge
  • LCD Status Monitor
  • USB Connectivity Port
  • User-Replaceable Batteries
  • Horizontal / Wall-mounted Use
  • Cable Collector Included
  • PowerPanel® Personal Edition Software
  • Equipment Protection Policy up to 50,000 Euros
Model BR700ELCD
General
UPS Topology Line-interactive
Energy Saving Yes
Input
Voltage 220/230/240 Vac
Input Voltage Range 165Vac - 290Vac
Rated Input current 3.18A
Plug Type Schuko
InputFrequency Range 45Hz ~ 65 Hz
Output
VA 700
Watts 420
On Battery Waveform Simulated Sine Wave
On Battery Voltage 220-240Vac
Automatic Voltage Regulation (AVR) Single Boost / Single Buck
On Battery Frequency 50/60Hz ± 1%
Outlets - Total 8
Outlet Type Schuko / FR
Outlets - Battery & Surge Protected 4
Outlets - Surge-Only Protected 4
USB Charging Ports Yes
Transfer Time 4ms
Battery
Runtime at 60W (min) 47
Runtime at 90W (min) 28
Battery Type Sealed Lead Acid
Battery Quantity 1
User Replaceable Yes
Hot-Swappable Yes
Typical Recharge Time 8 Hours
Replacement Battery Pack RBP0083
Replacement Battery Pack Quantity 1
Surge Protection and Filtering
Surge Suppression 125 Joules (L-N)
Phone / Network Protection RJ11/RJ45 1-In, 1-Out (Combo)
Management & Communications
LCD Control Panel Yes
HID Compliant USB Port Yes
LED Indicators Yes
Audible Alarms On Battery, Low Battery, Overload, Fault
Software PowerPanel® Personal Edition
Physical
Form Factor Brick
Physical
Dimensions (WxHxD) (mm.) 166x118x288
Weight (kg.) 5.3
Environmental
Operating Temperature + 32°F to 104° F / 0° C to 40° C
Operating Humidity 0% - 90% non-condensing
Operating Elevation 0-10000 feet (0-3000meters)
Storage Temperature - 4°F to 122° F / -20° C to 50° C
Storage Relative Humidity 0% - 90%
Online Thermal Dissipation 71 BTU/hr
