CUSTOMIZE WITHOUT COMPROMISE
The all new PB Series is an 80 PLUS® Gold certified gaming power supply. Gamers can adjust the colors of the built-in RGB LED fan to match personal preferences. Produce a light show in your gaming rig!
750 Watt InWin PB-750W Premium Basic Modular GOLD Power Supply
Web ID: 25445
The all new PB Series is an 80 PLUS Gold certified gaming power supply. Gamers can adjust the colors of the built-in RGB LED fan to match personal preferences. Produce a light show in your gaming rig! ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 5 Year
Manufacturer PN: PB-750W
GTIN: 827955026509
Manufacturer Website
$139
Behold, RGB Unleashed!
Sync Lighting Effects
The PB Series is compatible with RGB-supported motherboards(4pin, 12V). Simply activate the motherboard software and the power supply’s RGB LEDs will perfectly complement your gaming rig.
RGB Mode
Gamers can also turn off the M/B RGB override button to manually switch the colors or activate the breathing effect. This mode provides eight options: Red, green, dark blue, yellow, purple, light blue, white and breathing effect. Completely match the theme of your rig!
The power supply also features a built-in memory function to save the applied color, insuring the same selected color appears every time you boot your PC.
Hibernation Mode; Balancing Noise and Thermal Levels
The fluid dynamic bearing (FDB) 135mm fan will switch to hibernation mode automatically once the system’s load is lower than 20%. This will maintain the power supply’s stability and noise levels. The fan will begin to rotate when the system’s load is over 20% at a silent 18dBA output.
Think Sync!
The PB Series is capable of synchronizing with other RGB sync-ready components by using the 4-pin RGB headers (such as RGB fan and LED strip). Create your own synchronized lighting show!
80 PLUS® Gold Certified Fully-Modular Power Supply
The PB Series delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.
5V and 3.3V DC to DC Design
The DC to DC converter design provides superior dynamic response and supports a foundation for greater system stability.

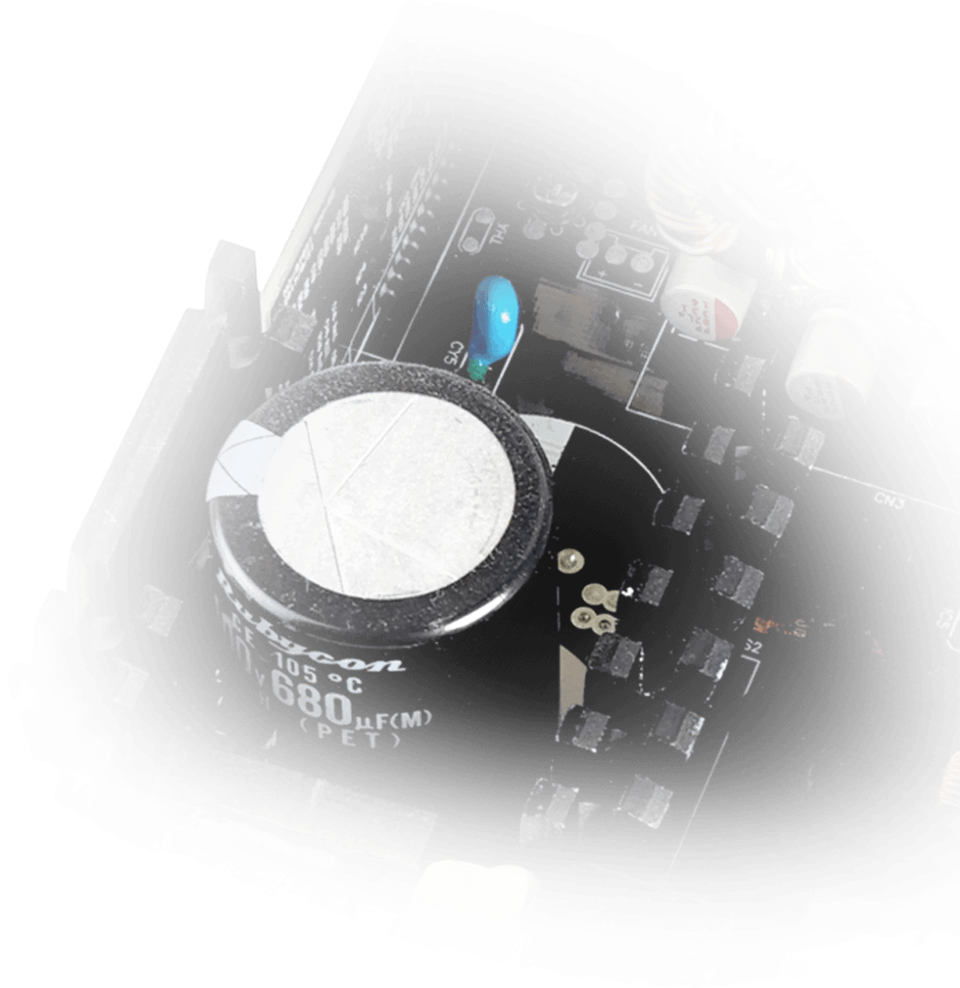

Highly Reliable Japanese Aluminium Electrolytic Capacitors
Premium Japanese capacitors with 105°C rating improve power stability at higher temperatures and provides an ultra-long lifespan.
Fully Modular Cables for Quick and Easy Installation
The fully modular and low-profile cable design lets gamers quickly and easily install for tidier cable management.
CABLE INFORMATION
| Model | PB-650W | PB-750W | PB-850W | ||
|---|---|---|---|---|---|
| Part Number | IW-PB650-RGB | IW-PB750-RGB | IW-PB850-RGB | ||
| Total Power | 650W | 750W | 850W | ||
| Material | SECC | ||||
| Type | ATX12V V2.4 / EPS12V V2.92 | ||||
| Cable Management | Fully Modular | ||||
| PFC | Active PFC ( >0.9) | ||||
| Efficiency | 80 PLUS Gold (Up to 90%) | ||||
| MTBF (Hours) | >100,000 hrs. | ||||
| AC Input | 100 - 240Vac. 50-60Hz | ||||
| Fan | 135mm FDB Fan (RGB Lighting) | ||||
| Typical Load Fan Noise(dBA) (50% Loading) | <25dBA | ||||
| Operating Temperature Range (°C) | 0~40 °C | ||||
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | ||||
| Safety Certifications | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / CCC / RCM | ||||
| Dimensions (L x W x H) | 160 x 150 x 86mm | ||||
| Package Dimensions (L x W x H) | 210 x 325 x 100mm | ||||
| Net Weight | 2.35 kg | 2.46 kg | 2.64 kg | ||
| Gross Weight | 2.81 kg | 2.92 kg | 3.12 kg | ||
| Warranty | 5 Years | ||||
| Connector | 20+4 Pin Motherboard | 1 | 1 | 1 | |
| 8 (4+4) Pin CPU | 1 | 2 | 2 | ||
| 8 (6+2) Pin PCI-E | 4 | 4 | 6 | ||
| 4 Pin Peripheral | 4 | 4 | 4 | ||
| SATA (90 Degree) | 9 | 12 | 12 | ||
| Floppy | 1 | 1 | 1 | ||
| RGB LED Connector Modular Cable | Lighting | 1 | 1 | 1 | |
| RGB LED Controller | 1 | 1 | 1 | ||
