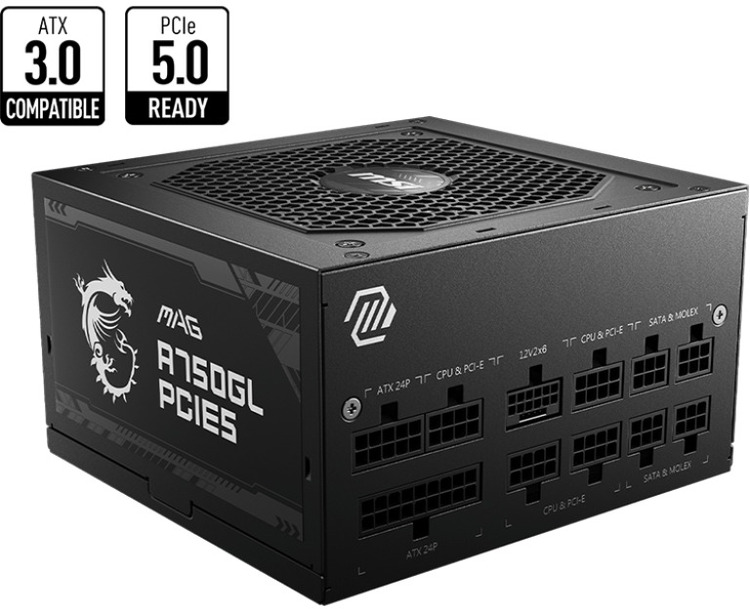

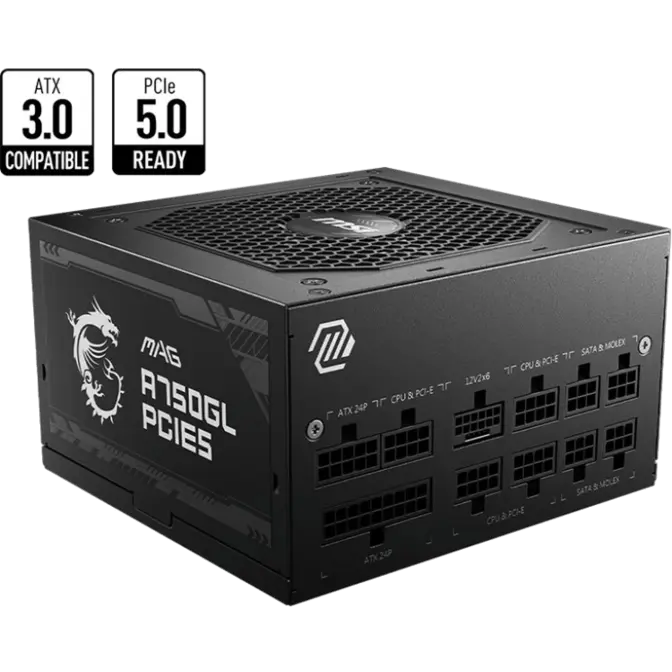

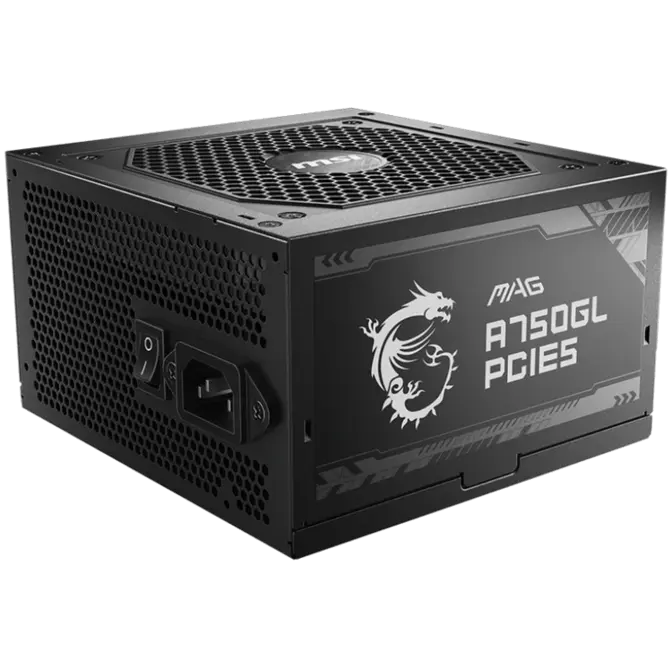

750 Watt MSI MAG A750GL Gold Full Modular Gen5 Power Supply
Web ID: 36668
A750GL is ATX 3.0 compatible, native PCIe 5.0 connector
Supports NVIDIA GeForce RTXTM 40 Series graphics cards
Full modular design,Flat cables
80 Plus Gold certified for high efficiency
Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
120mm Fluid Dynamic Bearing Fan
Manufacturer Warranty: 7 Year
Manufacturer PN: MAG A750GL
GTIN: 824142319239
Manufacturer Website
$139
| EFFICIENCY RATING |
80 PLUS Gold (up to 90%) |
| MODULAR |
Yes (full modular) |
| FAN SIZE |
120 mm |
| FAN BEARING |
Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) |
140 x 150 x 86 mm |
| PFC TYPE |
Active PFC |
| INPUT VOLTAGE RANGE |
100~240 VAC |
| POWER WATT |
750W |
| POWER EXCURSION |
1500W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY RANGE |
47-63Hz |
| PROTECTION |
OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 PIN) |
1 |
| EPS (4+4 PIN) |
2 |
| PCI-E 5.0 (16 PIN) |
1 (450W) |
| PCI-E (6+2 PIN) |
3 |
| SATA (15 PIN) |
8 |
| MOLEX (4 PIN) |
4 |
| FDD (4 PIN) |
1 |
