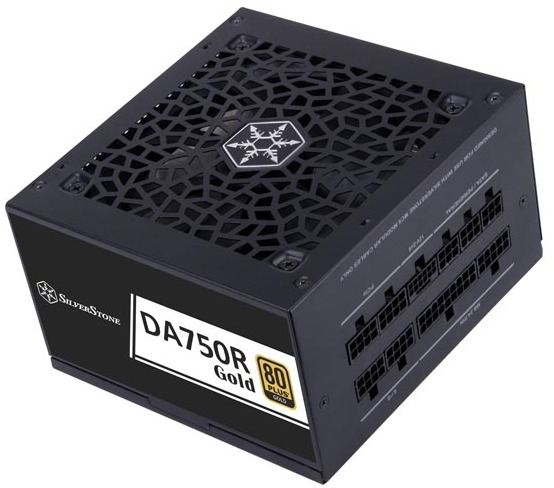

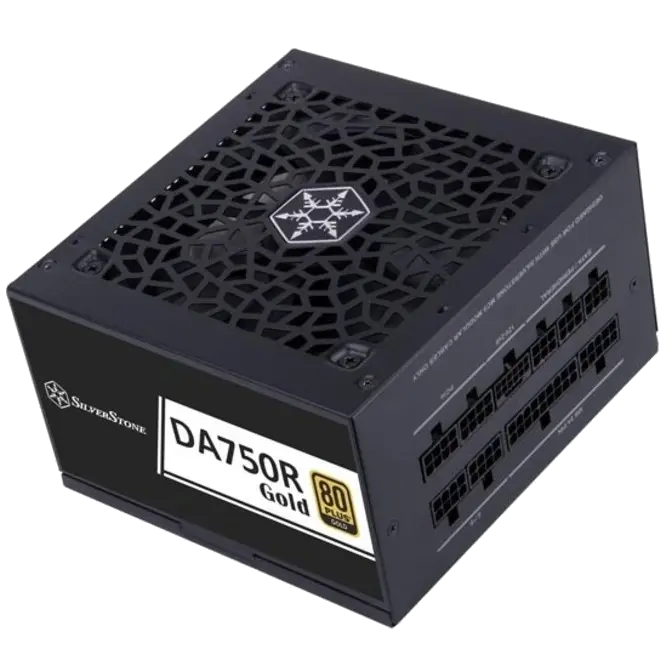

750 Watt SilverStone Gold DA750R-GMA Gen5 Modular Power Supply
Web ID: 38430
80 PLUS Gold efficiency certification
Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
Latest PCIe Gen 5 standard to support up to 2X power excursion
24/7 continuous power output with 50operating temperature
Silent running 120mm fan with advanced semi-fanless operation
Compact design with a 140mm depth for easy integration
CASH PRICE
Manufacturer Warranty: 5 Year
Manufacturer PN: SST-DA750R-GMA
GTIN: 844761026820
Manufacturer Website
Product No.
SST-DA750R-GMA-WWW (White)
SST-DA750R-GMA (Black)
Model (safety certification)
SST-AX0750MCGD-C
Color
White (lead-free paint)
Black (lead-free paint)
Max. DC Output
750W
Power density
415W/L
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 62.5A | 3A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | +5%-7% | ±5% | ±8% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
Combined +3.3V & +5V
100W
Combined +12V
750W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥87% & <89%
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

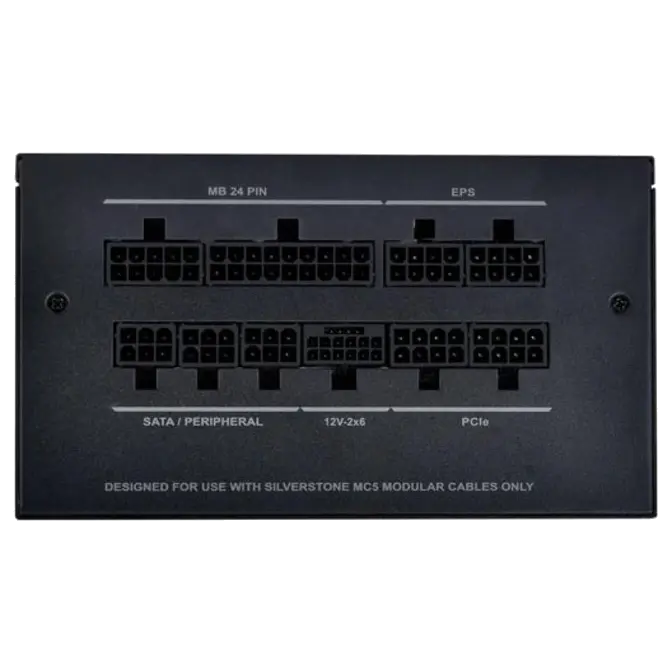

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
? DA750R-GMA/DA750R-GMA-WWW are not compatible with PP05-E and PP06 cables.
Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2.08kg
