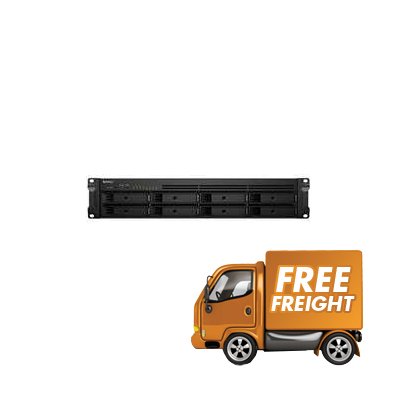

8 Bay Synology RS1221+ RackStation NAS

Web ID: 30896

The RS1221+/RS1221RP+, at only 30 to 38 centimeters deep, is built for space-sensitive deployments. Boasting over 100K 4K random read IOPS and 2,315 MB/s sequential read1, the RS1221+/RS1221RP+ is equipped to handle heavy workloads in data-intensive environments. This model does not include redundant power supply.
Manufacturer Warranty: 3 Year
Manufacturer PN: RS1221+
GTIN: 846504003686
Manufacturer Website

$2299

Add to cart

Low Stock

Compare

Wish List

Question

8 bay synology rs1221 rackstation nas

CPU	CPU Model	AMD Ryzen V1500B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 2.2 GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	4 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	4 GB (4 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage	Drive Bays	8
	Maximum Drive Bays with Expansion Unit	12 (RX418 x 1)
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Maximum Single Volume Size*	108 TB
	Hot Swappable Drive
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. Each internal volume (may consist of multiple drives) is expandable up to 108TB.
External Ports	RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	eSATA Port	1
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
	Notes	exFAT Access is purchased separately in Package Center.
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	RS1221+ :88 mm x 482 mm x 306.6 mm
	Weight	RS1221+ :6.9 kg
	Rack Installation Support*	RS1221+ : 2-post 19" rack (direct mounting) 4-post 19" rack (Synology Rail Kit - RKM114/RKS1317)
	Notes	The rail kit is sold separately
Others	System Fan	80 mm x 80 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Power Recovery
	Noise Level*	RS1221+ :25.2 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	RS1221+ :250
	Redundant Power Supply	No
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	RS1221+ :49.89 W (Access) 22.64 W (HDD Hibernation)
	British Thermal Unit	RS1221+ :170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI EAC CCC KC VCCI RCM
Warranty	3-year hardware warranty, extendable to 5-year coverage - EW202
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	RS1221+ : Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 C13 to C14 power cord x 1 Quick Installation Guide X 1
Optional Accessories	RS1221+ : DDR4 ECC SODIMM: D4ES01-4G/D4ES01-8G/D4ECSO-2666-16G Expansion Units: RX418 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5200 M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 Rail Kit Sliding: RKS1317 Rail Kit Mounted: RKM114* VisualStation: VS960HD/VS360HD Surveillance Device License Pack
	Notes	RS1221+ : Certain items may not be available in your location. Please contact your local distributors for more information. All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
