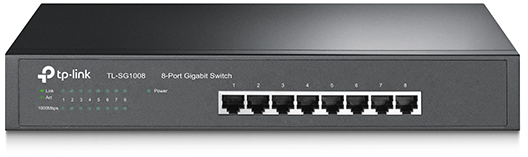

8 Port TP-Link TL-SG1008 Gigabit Switch

Web ID: 30675

8 10/100/1000Mbps RJ45 ports Supports MAC address auto-learning and auto-aging and auto MDI/MDIX Standard 13-inch rackmount steel case (rackmount bracket for 19" mounting is included) 802.1p/DSCP QoS enable smooth latency-sensitive traffic
Manufacturer Warranty: 1 Year
Manufacturer PN: TL-SG1008
GTIN: 6935364021573
Manufacturer Website

What This Product Does

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Ease to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 4.1W
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in.
(294 x 180 x 44 mm)
Mounting 13" or 19" Rack Mountable
Max Power Consumption 4.3W
Max Heat Dissipation 14.67BTU/h
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Jumbo Frame 16KB
Transfer Method Store-and-Forward
SOFTWARE FEATURES
Advanced Features MAC address auto-learning and auto-aging
IEEE802.3x Flow control

802.1p/DSCP QoS
OTHERS
Certification FCC, RoHS
Package Contents 8-Port Gigabit Desktop Switch
Power Cord
Installation Guide
Rackmount kit
Rubber Feet
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
