8-Port Ubiquiti USW-Mission-Critical Gigabit PoE Switch with Integrated 368Wh Battery

Web ID: 43047

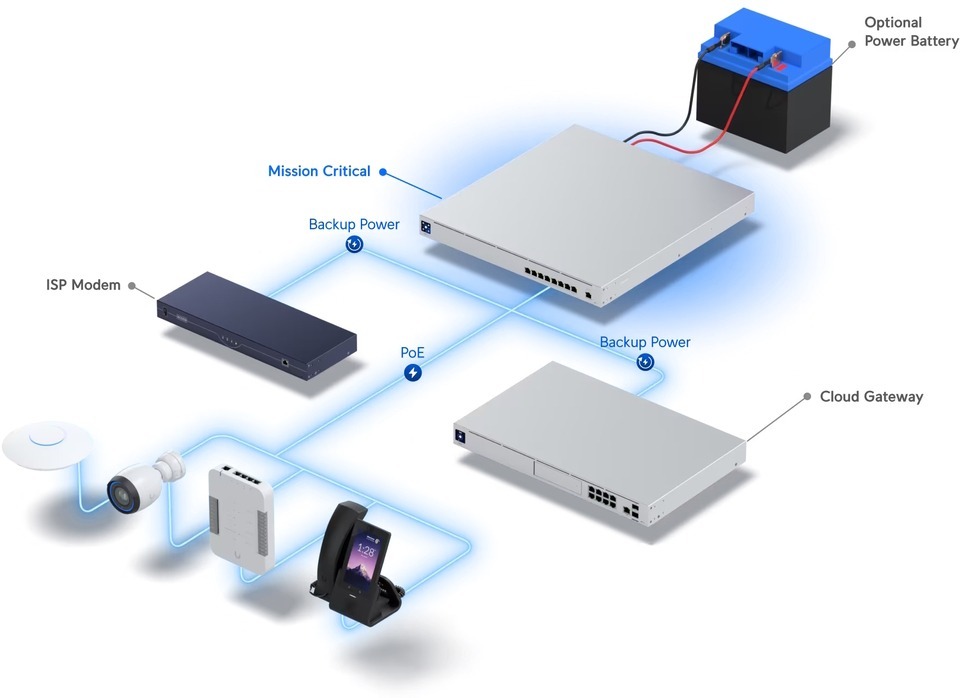

A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.

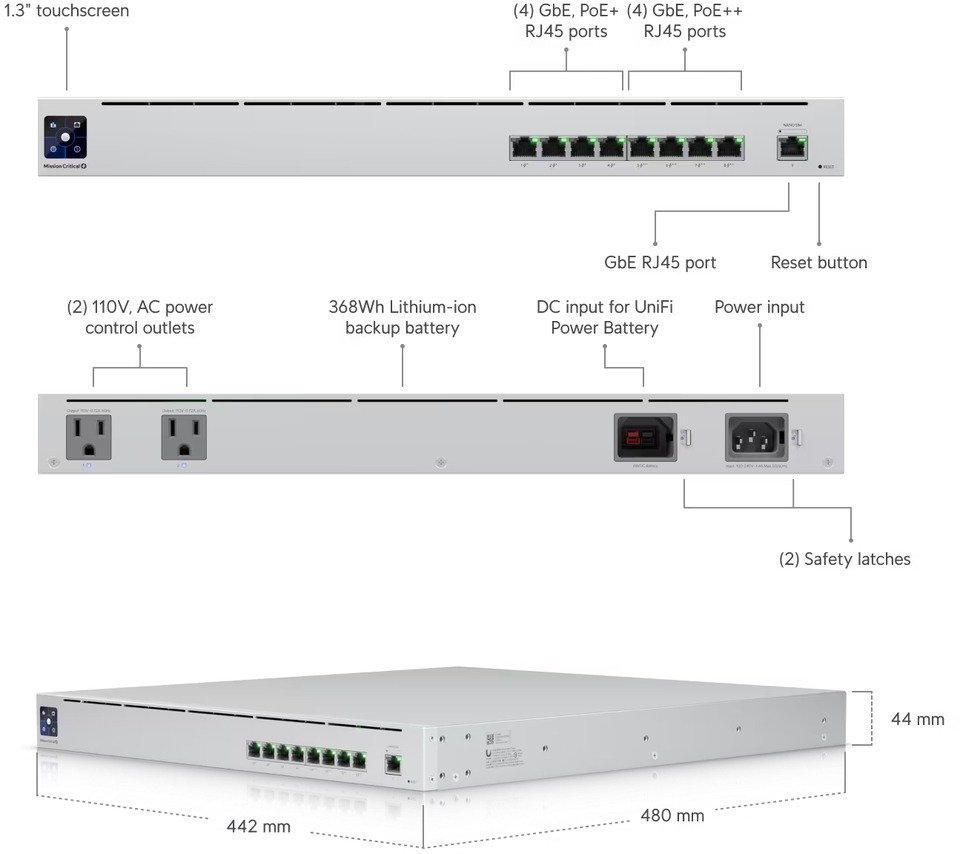

  • (4) GbE PoE+, (4) GbE PoE++ ports
  • (1) GbE port
  • (2) 110V AC outputs; 120W total PoE available
  • Battery backup power system
  • Internal battery 368Wh

Manufacturer Warranty: 2 Year
Manufacturer PN: USW-Mission-Critical
Manufacturer Website

$1809

8-port ubiquiti usw-mission-critical gigabit poe switch with integrated 368wh battery8-port ubiquiti usw-mission-critical gigabit poe switch with integrated 368wh battery8-port ubiquiti usw-mission-critical gigabit poe switch with integrated 368wh battery

Mechanical
Dimensions 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Weight Without mount: 9 kg (19.9 lb)
With mount: 9.2 kg (20.3 lb)
Enclosure material SGCC steel
Mount material SGCC steel
Supported rack depth 700 to 1000 mm (27.6 to 39.4")
Hardware
Management interface Ethernet In-Band
Networking interface (9) GbE RJ45 ports
PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(4) 60W PoE++ (Pair A 1, 2+; 3, 6-)(Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 9 Gbps
Switching capacity 18 Gbps
Forwarding rate 13.39 Mpps
Power method (1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) External battery DC input 48V DC, 6A
(1) Internal Lithium-Ion battery, 368Wh
Power supply Universal AC input: AC/DC, internal, 240W
External battery port: DC, external, 240W
Max. power consumption 240W (Including PoE output)
50W (Excluding PoE output)
Total available PoE 120W
Power output US: (2) Power control outlets, 110V AC, 0.72A Max., 60 Hz
EU: (2) Power control outlets, 230V AC, 0.35A Max., 50 Hz
Power output budget 80W
Max. PoE wattage per port by PSE PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+/PoE++: 50—57V
ESD/EMP protection Air/contact: ± 24kV
LCM display (1) 1.3" touchscreen
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
LEDs
Ethernet Green: 1 Gbps
Amber: 10/100 Mbps
PoE Amber: PoE/PoE+/PoE++
Power output Blue: active
Application Requirements
UniFi Network Version 6.2.26 and later
