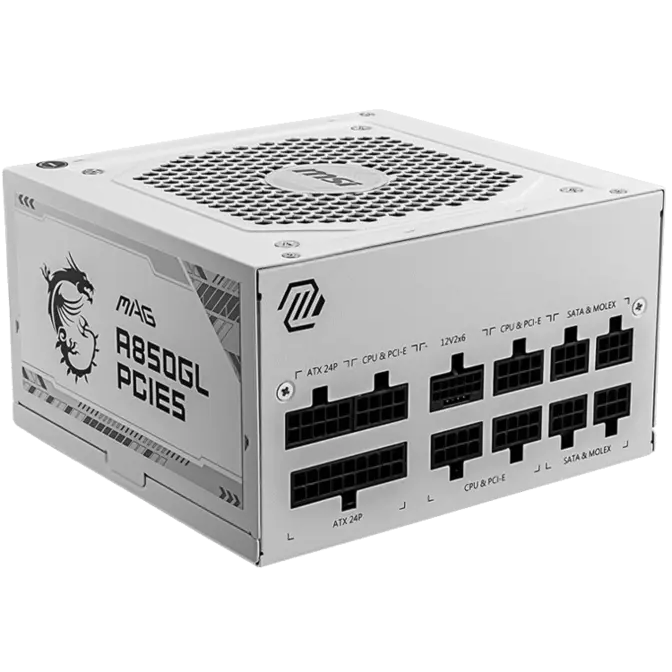

850 Watt MSI MAG A850GL White 80 Plus Gold Full Modular Gen5 Power Supply
Web ID: 39276
A850GL is ATX 3.0 compatible, native PCIe 5.0 connector
Supports NVIDIA GeForce RTXTM 40 Series graphics cards

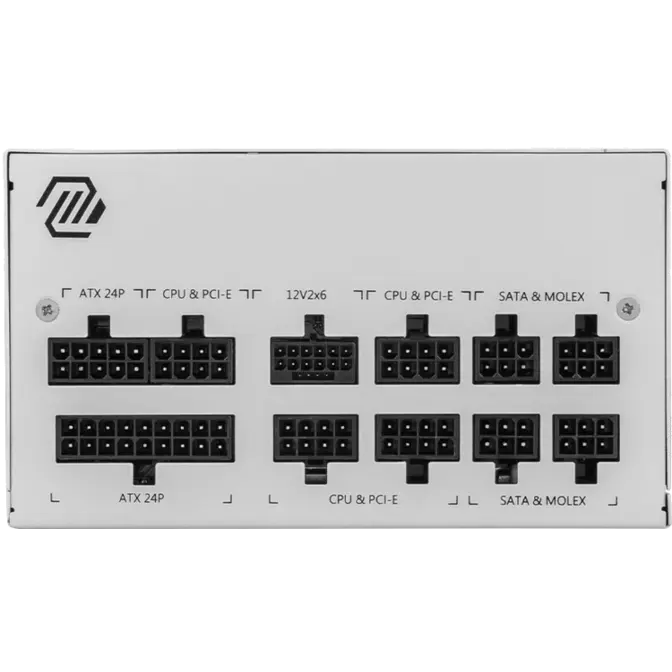

Full modular design,Flat cables
80 Plus Gold certified for high efficiency
Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
120mm Fluid Dynamic Bearing Fan
Manufacturer Warranty: 7 Year
Manufacturer PN: MAG A850GL PCIE5 WHITE
GTIN: 824142330258
Manufacturer Website
$159SAVE $30
| EFFICIENCY RATING |
80 PLUS Gold (up to 90%) |
| MODULAR |
Yes (full modular) |
| FAN SIZE |
120 mm |
| FAN BEARING |
Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) |
140 x 150 x 86 mm |
| PFC TYPE |
Active PFC |
| INPUT VOLTAGE RANGE |
100~240 VAC |
| POWER WATT |
850W |
| POWER EXCURSION |
1700W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY RANGE |
47-63Hz |
| PROTECTION |
OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 PIN) |
1 |
| EPS (4+4 PIN) |
2 |
| PCI-E 5.0 (16 PIN) |
1 (600W) |
| PCI-E (6+2 PIN) |
4 |
| SATA (15 PIN) |
8 |
| MOLEX (4 PIN) |
4 |
| FDD (4 PIN) |
1 |
